Summary of Contents for Audiovox GMRS862

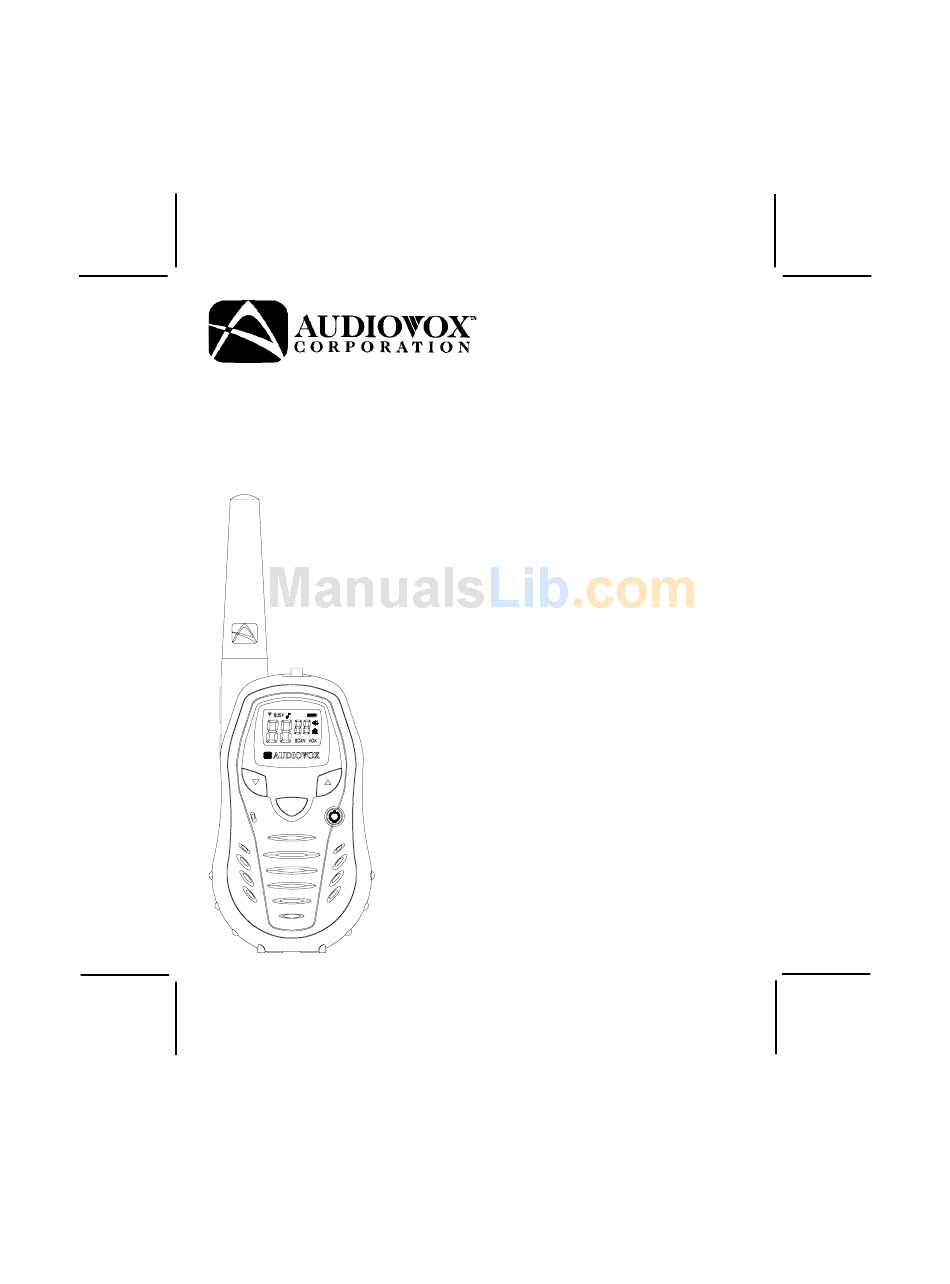

- Page 1 General Mobile Radio Service (GMRS) Model : GMRS862 Twin Pack Owner’s Manual MODE Released: 1-13-06 Customer Service 1-800-290-6650 128-7625 1 of 28...
- Page 2 THIS PAGE LEFT BLANK INTENTIONALLY 128-7625 2 of 28...
-
Page 3: Safety Information
These are not indicative of a fault condition. Avoid placing the GMRS862 radio transceiver for prolonged periods of time in direct sunlight or temperatures below -4 °... -
Page 4: Fcc Warning
Never attempt to charge alkaline or dry cell batteries, as batteries may burst causing personal injury and damage to the product. If rechargeable batteries are used, such as Nickel Metal Hydride (NiMH), use only Audiovox- approved rechargeable batteries. Use of an Audiovox charger with other brands of batteries is not recommended, as battery charging times will vary with different brands. - Page 5 Model GMRS862 (FCC License Required) 1. Battery Cover 2. Monitor (M) Button 3. Detachable Carry Clip 4. Push-To-Talk (PTT) and Func- tion Confirmation Button 5. Antenna 6. External Microphone (MIC)/Charger (CHG)/Speaker (SP) Jack (REF) (REF) 7. Built-in Speaker 8. Liquid Crystal Display (LCD) 9.
- Page 6 Model GMRS862 DISPLAY 1. Roger Beep Tone Indicator: This icon appears when the Roger Beep tone is on, and disapppears when the tone is not in use. 2. Transmit Indicator: Icon appears when the unit is in the transmit mode (PTT button activated or VOX mode active).
- Page 7 Radio (2) Owner’s Manual (1) Powering the transceiver: Your GMRS862 radio transceiver operates on four AAA Alkaline batteries. Alkaline batteries will provide slightly better performance than rechargeable batteries. Only Audiovox approved rechargeable batteries should be recharged in the radio transceiver. Use of optional Audiovox charging equipment with other brands of rechargeable batteries is not recommended as battery charging times will vary.
- Page 8 3. Various Brands of Rechargeable Batteries - Use of the Audiovox charger(s) with other brands of rechargeable batteries is not recommended, as battery charging times will vary with different brands of batteries. Refer to the manufacturer’s instructions for charging other brands of batteries.
- Page 9 The following guidelines will improve performance and provide longer operating times for the GMRS862: Do not mix old and new batteries. The use of alkaline-type batteries is recommended to provide the longest operating time.
- Page 10 GMRS862 OPERATIONAL MODES GMRS/FRS CHANNEL (MODE) SELECT CTCSS SELECT POWER SELECT ROGER BEEP NOTE: To differentiate between operating modes, look for HI or LO indication below the battery power level indicator when in GMRS mode.Refer to the appropriate section of this manual for de- tailed operating instructions for each mode.
- Page 11 Adjusting the Volume (11, 10) With the unit powered on, press the Up Channel/Volume button ( ) to increase volume and the Down Channel/Volume button ( ) to decrease volume. The display will indicate the current volume level (U followed by the number (0-7).
- Page 12 External Speaker (SPK)/ Microphone (MIC)/CHG Jack (6) This jack accepts both the supplied Audiovox boom microphone/headset connector and the wall charging adapter. For equipment and accessories for the GMRS862, refer to page 7 and/or visit the Audiovox web site at www.audiovox.com. Scan Button (13) With the unit in standby mode, press the Power On/Off Button momentarily to enable or disable the scan function;...
-
Page 13: Operating Modes And Features
In order to communicate with other GMRS/FRS units, both the transmit- ting and receiving party must be on the same frequency. The GMRS862 has 22 channels (frequencies) indicated by the large digits on the LCD display panel. Channels 1 through 7 are the shared GMRS/ FRS channels. - Page 14 another channel that is clear. To change the channel: - From GMRS/FRS standby mode, press the MODE button (12) once; the channel number flashes. - Press the Up Button (10) briefly to move to the next higher main chan- nel number. - Press the Down Button (11) briefly to move to the next lower main channel number.
- Page 15 Transmit Power Selection Mode (GMRS Channels Only) This feature permits selection of the transmitting power level to high or low when using channels 1-7 and 15-22. Using low power, the unit will have a lower transmit range, but battery life will be increased. NOTE: You will find that for the majority of your needs, the low-power setting will provide adequate communications on all channels;...
- Page 16 Roger Beep Tone The Roger Beep is a tone which is automatically transmitted whenever the PTT button is released and the tone is enabled. This tone alerts the receiving party that the transmission has been terminated intentionally. To enable and disable the Roger Beep tone: - From GMRS standby mode, press the MODE Button 4 times (in FRS mode, 3 times) until the flashing Roger Beep icon ( On or oF.
- Page 17 Call Ringer Selection Mode The transceiver provides a transmit call ring melody at the receiving unit to alert you to an incoming call. To activate the call ringer melody: - From GMRS/FRS standby mode, press the PTT button twice in quick succession;...
-
Page 18: Notes For Good Communication
NOTES FOR GOOD COMMUNICATION 1 . The GMRS862 22 channels are shared on a ‘take turns’ basis. This means other groups may be talking on any of the channels. A common code of ethics/courtesy is to switch to another vacant channel and not to attempt to talk over someone who is already using the channel you first selected. - Page 19 • Avoid exposing the transceiver to water or extremes of temperature. • Do not use this device in or near a mining facility, which uses remotely triggered explosives or in areas labeled “Blasting Area”. Premature or accidental detonation may result. •...
-
Page 20: Troubleshooting
Troubleshooting Problem Possible cause No transmission Weak batteries while pressing Incorrect battery polarity the PTT Button Weak or no Weak batteries signal received Channel and privacy code not set the same as target transceiver Volume level too low PTT Button inadvertently depressed Excessive radio interference on a particular channel... -
Page 21: Power Supply
T T T T T ec echnical Specif hnical Specifica hnical Specif hnical Specif hnical Specif ications: General General General General General Frequency Range: Channels 1 through 7 are shared with FRS radios. Channels 8 through 14 are FRS only. Channels 15 through 22 are GMRS only. - Page 22 THIS PAGE LEFT BLANK INTENTIONALLY 128-7625 22 of 28...
-
Page 23: Main Channel Frequencies
This transceiver complies with FCC regulations for use in the United States of America. Use in other countries may be prohibited or restricted by local regulation. Please check with the local regulating agency be- fore using this device outside the United States of America. Main Channel Frequencies: NOTE: Channels 1 through 7 are shared with FRS radios. - Page 24 CHANNELCROSS REFERENCE FOR 14 AND 15 CHANNEL GMRS/FRS RADIO TO 22 CHANNEL GMRS/FRS RADIO CHANNELCROSS REFERENCE FOR 15 CHANNEL GMRS/FRS RADIO TO 22 CHANNEL GMRS/FRS RADIO NOTE WHEN USING RADIOS PRODUCED BY OTHER MANUFACTURERS, COMPARE CHANNEL FREQUENCIES FOR COMPATIBILITY. CHANNEL CROSS REFERENCE FOR 14 CHANNEL FRS RADIO TO 22 CHANNEL GMRS/FRS RADIO...
- Page 25 Continuous Tone Coded Squelch System Tone Frequencies (in Hz) CTCSS Freq. Hz 67.0 71.9 74.4 77.0 79.7 82.5 85.4 88.5 91.5 94.8 97.4 100.0 103.5 107.2 110.9 114.8 118.8 123.0 127.3 CTCSS Freq. Hz 131.8 136.5 141.3 146.2 151.4 156.7 162.2 167.9 173.8...
-
Page 26: 90-Day Limited Warranty
90 DAY LIMITED WARRANTY Applies to Audiovox Family Radio and General Mobile Service Products. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven... - Page 27 THIS PAGE LEFT BLANK INTENTIONALLY 128-7625 27 of 28...
- Page 28 © 2005 Audiovox Electronics Corp., Hauppauge, NY 11788 Printed in China 128-7625 128-7625 28 of 28...
