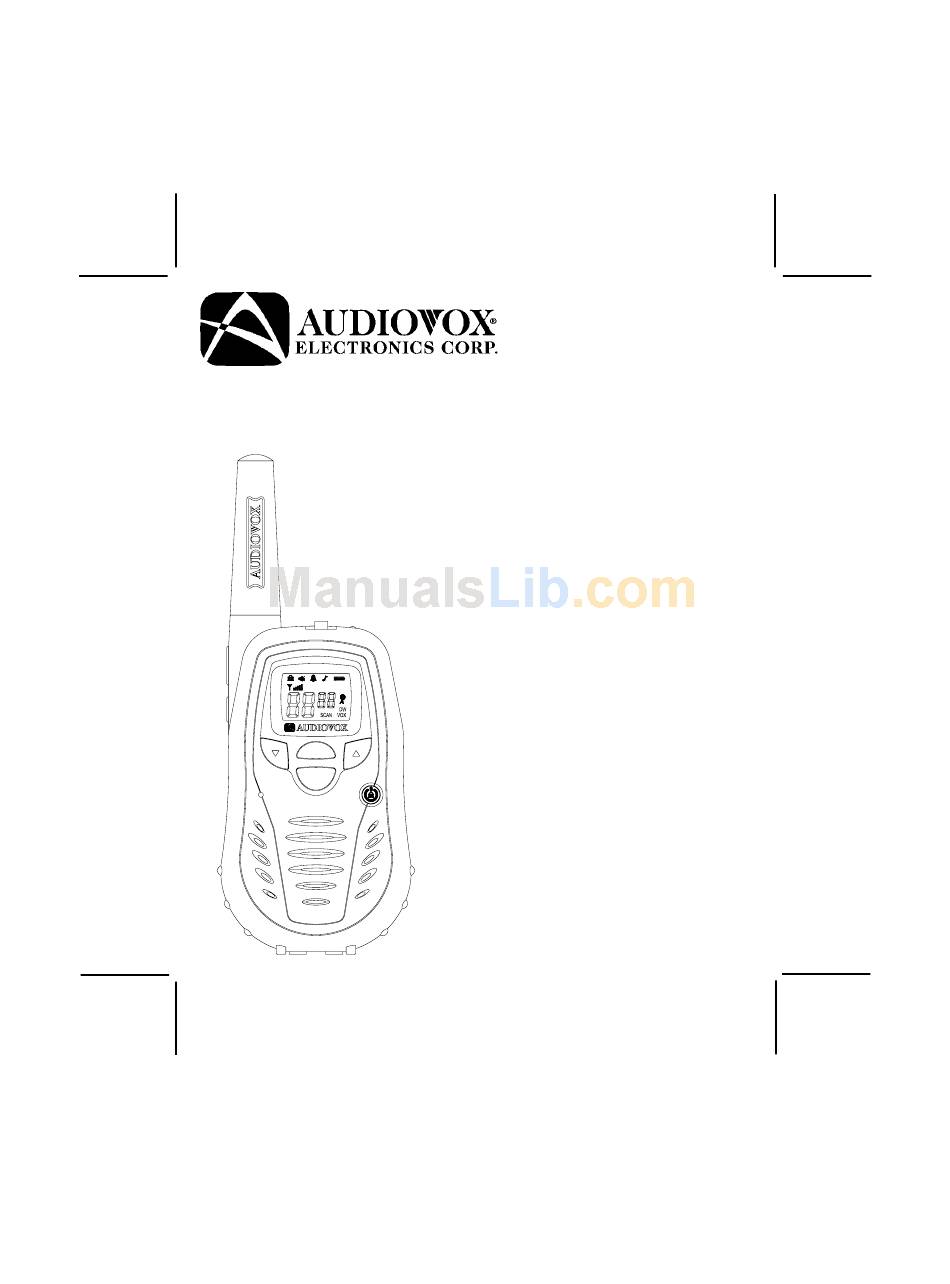

- Page 1 General Mobile Radio Service (GMRS) Model : GMRS8000-2 Owner’s Manual BUSY S/VOX MODE Released: 1-30-04 Customer Service 1-800-290-6650 128-7030 1 of 28...
- Page 2 THIS PAGE LEFT BLANK INTENTIONALLY 128-7030 2 of 28...
-
Page 3: Safety Information
These are not indicative of a fault condition. Avoid placing the GMRS8000-2 radio transceiver for prolonged periods of time in direct sunlight or temperatures below -4 °... -
Page 4: Fcc Warning
Never attempt to charge alkaline or dry cell batteries, as batteries may burst causing personal injury and damage to the product. If rechargeable batteries are used, such as Nickel Metal Hydride (NiMH), use only Audiovox- approved rechargeable batteries. Use of the optional Audiovox charger with other brands of batteries is not recommended, as battery charging times will vary with different brands. - Page 5 Model GMRS8000-2 (FCC License Required) 1. Battery Door 2. Monitor/Backlight Button 3. Detachable Carry Clip 4. Push-To-Talk (PTT) Button 5. Antenna 6. External Speaker(SPK)/Micro- phone (MIC)/Charge (CHG) Jack 7. Built-in Speaker 8. Liquid Crystal Display (LCD) BUSY S/VOX MODE 9. Built-in Microphone 10.
- Page 6 Model GMRS8000-2 DISPLAY 1. Beep Tone Indicator: Icon appears when beep button confirmation tone is selected; icon disappears when tone is off. 2. Key Lock Indicator: Icon appears when the keypad is locked. This function disables keys such as channel up/down, SCAN and MODE.
-
Page 7: Powering The Transceiver
This will ensure optimum performance for the GMRS8000-2. Battery charging time is typically 16 - 20 hours. Use of the optional Audiovox charging equipment with other brands of rechargeable batteries is not recommended as battery charging times will vary. - Page 8 NOTE: To extend battery life, avoid overcharging the batteries 3. Various Brands of Rechargeable Batteries - Use of the optional Audiovox charger with other brands of rechargeable batteries is not recommended, as battery charging times will vary with different brands of batteries. Refer to the manufacturer’s instruc- tions for charging other brands of batteries.
- Page 9 The following guidelines will improve performance and provide longer operating times for the GMRS8000-2: Do not mix old and new batteries. The use of alkaline-type batteries is recommended to provide the longest operating time. Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries.
- Page 10 Controls: LED Flashlight Button (16) Press this button on the right side of the Transceiver to light the white LED (15) on top of the unit, thereby activating the built-in flashlight function. Power On/Off/Keylock (13) Button Press and hold the power on/off button ( ) for at least 2 seconds.
- Page 11 External Microphone (MIC)/Speaker (SPK)/(CHG) Jack (6) This jack accepts an Audiovox headset/microphone connector, or the optional Charging Adapter connector. For optional equipment and accessories for the GMRS8000-2 visit the Audiovox web site at www.audiovox.com. Scan/VOX Button (14) Press this Button momentarily to enable or disable the scan mode. Press...
-
Page 12: Operating Modes And Features
Channel Selection In order to communicate with other GMRS units, both transmitting and receiving party must be on the same frequency. The GMRS8000-2 has 22 channels (frequencies) indicated by the large digits on the LCD display panel. Channels 1 through 7 are the shared GMRS/FRS channels. - Page 13 Before transmitting on the selected channel, press the Monitor (M) Button (2) to check the activity on that channel. If there is activity on the selected channel, change to another channel that is clear. To change the channel: - From GMRS/FRS standby mode, press the MODE button (12) once or until the channel number flashes.
-
Page 14: Dual Watch Mode
The CTCSS subcodes do not prevent others from hearing your transmission. This will only allow you to ignore all traffic on a given channel not using the same subcode. Transmit Power Selection Mode This feature permits selection of the transmitting power level to high or low. - Page 15 dual watch channel. Received signals will be played for 5 seconds, then the unit will resume scanning the two channels. Pressing the PTT button during a received transmission will set the unit to transmit on the same channel. Pressing the PTT button when no signal is received will set the unit to transmit on the primary channel.
-
Page 16: Roger Beep Tone
- Press the PTT button momentarily to confirm selection. When the key tone feature is on, the Bell icon appears steady on the display, and the beep tones sound in response to button activation. Roger Beep Tone The Roger Beep is a tone which is automatically transmitted whenever the PTT button is released. - Page 17 NOTE: While the scan function is active, the MODE button will be inoperative. The scan mode will reduce the overall battery life since the battery save function is overridden. To enable the channel scan mode: - From GMRS/FRS standby mode, momentarily press the SCAN But ton;...
-
Page 18: Weather Alert Mode
VOX Enable Operation This option enables you to have hands-free conversation. Your voice or nearby sound is detected and the radio transmits without the need to press the PTT button. To enable VOX operation: - From GMRS/FRS standby mode, press the SCAN button for 3 sec- onds or until the VOX icon appears steady on the display. -
Page 19: Battery Alert
NOTES FOR GOOD COMMUNICATION 1 . The GMRS8000-2 22 channels are shared on a ‘take turns’ basis. This means other groups may be talking on any of the channels. A common code of ethics/courtesy is to switch to another vacant channel and not to attempt to talk over someone who is already using the channel you first selected. - Page 20 Warning • Do not operate the transceiver unless you are licensed to do so. • Remove the batteries from the transceiver if it is not expected to be used for long periods. This will eliminate the possibility of chemicals leaking from the batteries and corroding the transceiver.
-
Page 21: Troubleshooting
Troubleshooting Problem Possible cause No transmission Weak batteries while pressing Incorrect battery polarity the PTT Button Weak or no Weak batteries signal received Channel and privacy code not set the same as target transceiver Volume level too low PTT Button inadvertently pressed Excessive radio interference on a particular channel... - Page 22 T T T T T ec echnical Specif hnical Specifica hnical Specif hnical Specif ications: hnical Specif General Frequency Range: Channels 1-7 (Shared with FRS Radios) Channels 8-14 (FRS only) Channels 15-22 (GMRS only) Channel Spacing Privacy Codes Weather Band (7 Channels) Canadian Maritime (3 Channels) 161.6500, 161.7750, 163.2750MHz Dimensions (W x H x D) (Without Antenna)
-
Page 23: Main Channel Frequencies
This transceiver complies with FCC regulations for use in the United States of America. Use in other countries may be prohibited or restricted by local regulation. Please check with the local regulating agency be- fore using this device outside the United States of America. Main Channel Frequencies: NOTE: Channels 1 through 7 are shared with FRS radios. - Page 24 CHANNELCROSS REFERENCE FOR 14 AND 15 CHANNEL GMRS/FRS RADIO TO 22 CHANNEL GMRS/FRS RADIO CHANNELCROSS REFERENCE FOR 15 CHANNEL GMRS/FRS RADIO TO 22 CHANNEL GMRS/FRS RADIO NOTE WHEN USING RADIOS PRODUCED BY OTHER MANUFACTURERS, COMPARE CHANNEL FREQUENCIES FOR COMPATIBILITY. CHANNEL CROSS REFERENCE FOR 14 CHANNEL FRS RADIO TO 22 CHANNEL GMRS/FRS RADIO...
- Page 25 Continuous Tone Coded Squelch System Tone Frequencies (in Hz) CTCSS Freq. Hz 67.0 71.9 74.4 77.0 79.7 82.5 85.4 88.5 91.5 94.8 97.4 100.0 103.5 107.2 110.9 114.8 118.8 123.0 127.3 Weather Channel Frequencies: Channel Freq. MHz 162.550 162.400 162.475 162.425 162.450 *Canadian Marine...
-
Page 26: 90-Day Limited Warranty
90 DAY LIMITED WARRANTY Applies to Audiovox Family Radio and General Mobile Service Products. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven... - Page 27 THIS PAGE LEFT BLANK INTENTIONALLY 128-7030 27 of 28...
- Page 28 © 2004 Audiovox Electronics Corp., Hauppauge, NY 11788 Printed in China 128-7030 128-7030 28 of 28...
