Technical identification code

US
12
M
Table 2
[US] Electronic Instantaneous
[12] Maximum output (kW)
[M] Mechanical temperature control
[W] Wall hung
[I]
Indoor
[H] Horizontal installation
[B] Water connections
2.5

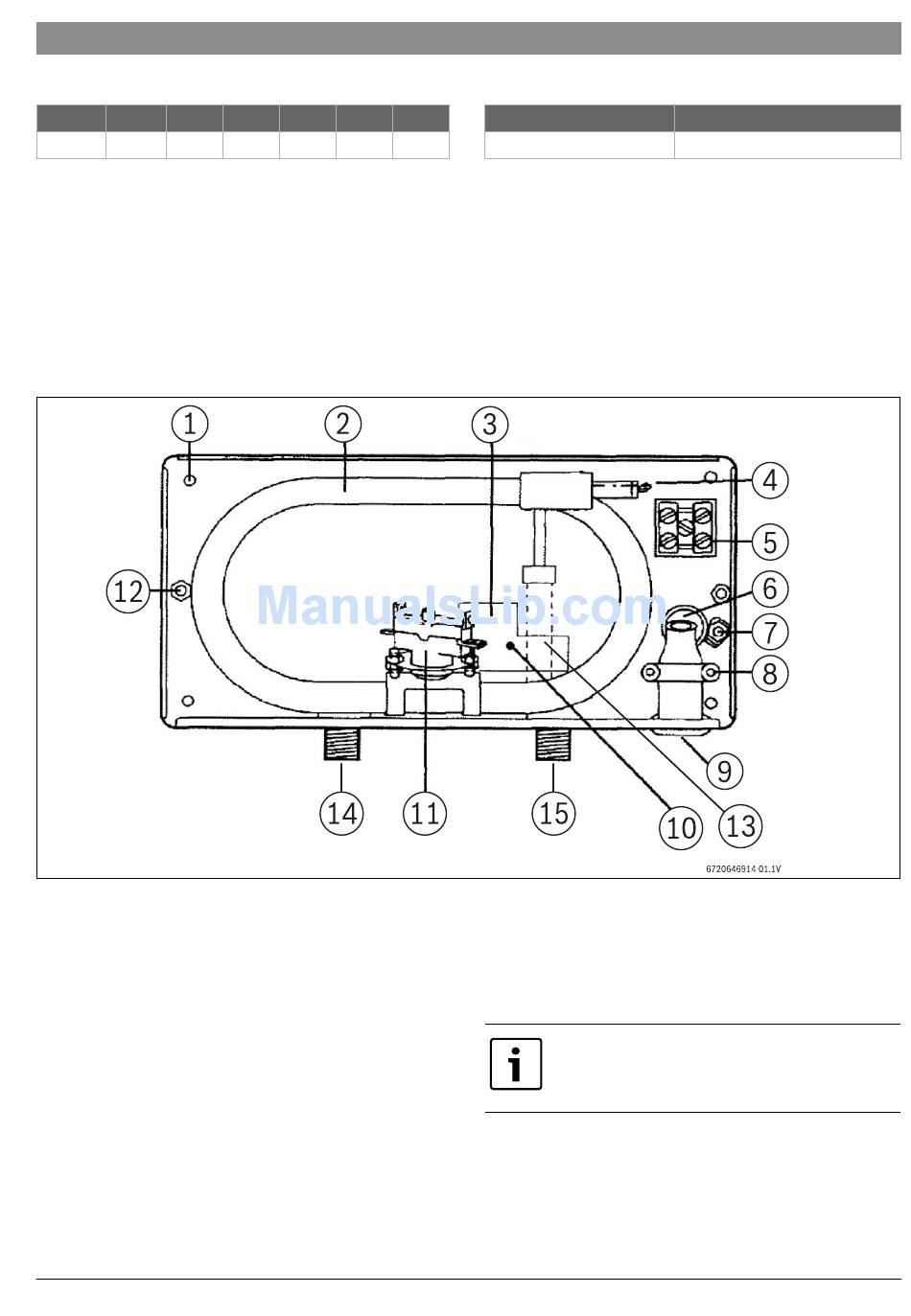

General description

Fig. 1
[1] Mouting hole
[2] Heat exchanger tube
[3] Control P.C.B
[4] Heating elements
[5] Terminal block
[6] Cable rear entry
[7] Ground stud
[8] Cable clamp
[9] Cable side entry
[10] Neon light
[11] Hi temp thermal cut-out (manual re-set)
[12] Cover fixing screw
[13] Flow switch
[14] Outlet
Tronic 3000 C Pro
W
I
H
B
2.3

Model name and number identification

Model Name
Tronic 3000 C Pro
Table 3
2.4

Package contents

Electric water heater
4 No. 8 wood screws
[15] Inlet
2.6

Function

Water comes in through the cold water inlet.
The heater is designed for cold water supply
only. Do not supply with pre-heated water.
The flow switch senses water is passing through the unit. If
it detects more than the pre-set level, the unit's heating the
elements switch on. This is shown by the neon light
glowing.
Information about the heater | 5
Model Number
US 12 M W I H B
6 720 647 088 (2017/05)
