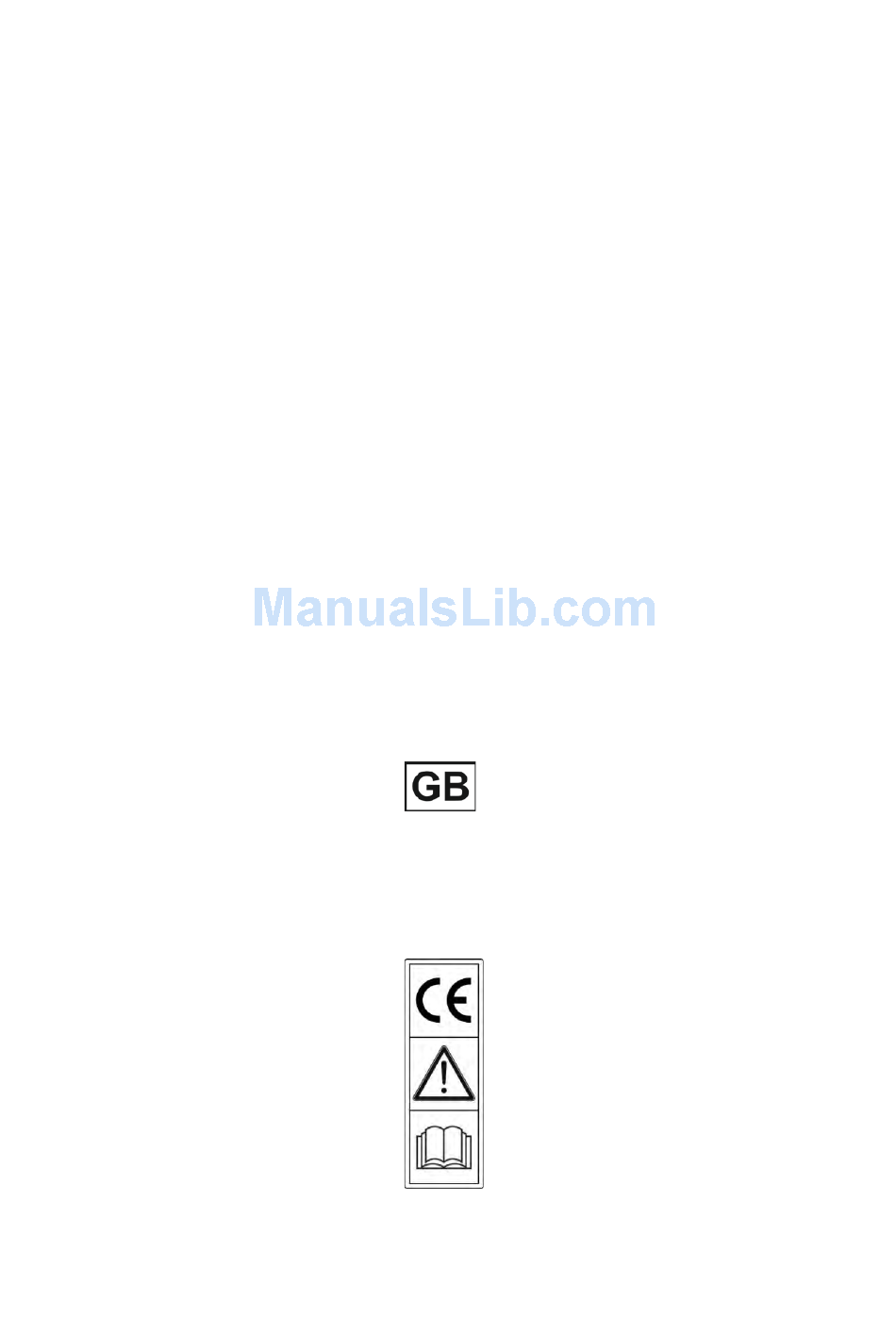

- Page 1 50 jade 55 jade 66 01 2015 Use and maintenance Attention! Please read the instructions before use. COD. 65302007...
-
Page 2: Technical Description
TECHNICAL DESCRIPTION jade 50 jade 55 jade 66 Cleaning width 19,7 Squeegee width 2250 2475 3000 Working capacity, up to sqft/h 24,219 26,641 32,292 1 x 508 2 x 285 2 x 345 Brushes diameter 1 x 20 2 x 11... -
Page 3: Table Of Contents
INTRODUCTORY COMMENT Thank you for having chosen our machine. This floor cleaning machine is used for the industrial and civil cleaning and is able to clean any type of floor. During its advance movement, the combined action of the brushes and the detergent solution removes the dirt which is aspirated through the rear suction assembly, giving a perfectly dry surface. -
Page 4: General Rules Of Safety
GENERAL RULES OF SAFETY − Use only ORIGINAL brushes indicated paragraph “RECOMMENDED BRUSHES". − Do not take off the protections which require the use of tools for The rules below have to be followed carefully in order to avoid injury to the operator and damage to the machine. -
Page 5: Legend Instrument Board And Controls
LEGEND INSTRUMENT BOARD AND CONTROLS DISPLAY CHARGE LEVEL BATTERIES/HOUR METER PUSH BUTTON VISUALIZATION HOUR METER (DISPLAY) SIGNAL LAMP BRAKE ON SWITCH SOLENOID VALVE/COMMUTATOR 3S SYSTEM (OPTIONAL) SWITCH BRUSHES MOTOR SWITCH SUCTION MOTOR PUSH BUTTON BRUSH RELEASE SWITCH WITH KEY LEVERS DRIVE CONTROL 10. -
Page 6: Symbology On The Machine
SYMBOLOGY ON THE MACHINE Symbol denoting the solution valve. Symbol denoting the brush. Indicates the solution valve lever. Indicates the switch of the brushes motor. Symbol denoting the suction motor. Symbol denoting the brake lever of the Indicates the switch of the suction motor. emergency and parking brake. -
Page 7: Optional Accessories
OPTIONAL ACCESSORIES The optional accessories are: Incorporated battery charger (2); 3S – Solution Saving System (1); Squeegee “V”-type (3). BEFORE USE Provide for an inclined base. Move the machine backwards, as indicated in the figure, avoiding HANDLING OF THE PACKED MACHINE heavy contacts to mechanical parts. -
Page 8: Battery Recharger
Strictly follow manufacturer/distributor indications maintenance and recharge of the batteries. All installation and maintenance operations must be executed by specialized staff, using suitable protection accessories. BATTERY RECHARGER Be sure that the battery recharger is suitable for the installed batteries both for their capacities and type (lead/acid or GEL and equivalent). -
Page 9: Batteries Recharging With On-Board Charger (Optional)
BATTERIES RECHARGING WITH ON-BOARD CHARGER (OPTIONAL) Bring the machine on a leveled surface near to a single-phase socket (within 2m, 6.5 ft.) with tension 230V, frequency 50Hz (for USA 120V, 60Hz), nominal current 10A. Switch off the machine and proceed as follows. Insert the plug into the mains socket. -
Page 10: Adjustment Of The Squeegee
ADJUSTMENT OF THE SQUEEGEE SPLASH GUARD ASSEMBLY In order to have a perfect drying result through the squeegee, the rear The two splash guards have to be assembled onto the brushes base rubber must have the lower bending uniformly adjusted in all its group. -
Page 11: Brushes Assembly
brushes base 55 and 66) BRUSHES ASSEMBLY For a longer life of the brushes we suggest to invert daily their position. Whenever brushes were deformed we suggest to reassemble them in the same position, avoiding that the different inclination of the bristles Acting upon the pedal (13) lift the brushes base group. -
Page 12: Recovery Tank
RECOVERY TANK Check that the cover of the suction filter (1) is correctly secured, after rotating the levers (2) and that the suction motor hose is correctly connected. Verify also that the squeegee hose (4) is correctly inserted into the seats and that the exhaust hose plug (5) placed in the front part of the machine, is closed. -
Page 13: Starting Of The Machine
STARTING OF THE MACHINE Turn the key (8) clockwise. Check the battery type and the charge level on the display (1). Press the brushes motor switch (5). Press the suction motor switch (6). Press the solenoid valve switch (4). Moving the machine backwards, make sure that the squeegee is lifted. SPEED ADJUSTMENT Two values of the maximum drive working speed in forward movement Models equipped with the 3S system (optional), it is necessary to press... -
Page 14: Adjustment Of The Brushes Pressure
OVERFLOW DEVICE In order to avoid serious damages to the suction motor, the machine is equipped with a float that intervenes when the recovery tank is full, closing the suction hose and stopping the suction. When this happens, it is necessary to empty the recovery tank. Hold the exhaust hose placed in the front part of the machine. -
Page 15: Suction Filter Cleaning
MANUAL DISASSEMBLY OF THE BRUSHES If the manual disassembly is chosen for the model with brush base 50, or in the models with brushes base 55 and 66, whose brushes can be taken off only manually, proceed as follows: SUCTION FILTER CLEANING Lift the brushes base lowering the pedal (13). -
Page 16: Squeegee Cleaning
SQUEEGEE CLEANING SQUEEGEE HOSE CLEANING Keeping the squeegee clean guarantees always the best drying action. Weekly or in case of insufficient suction, it is necessary to check that For its cleaning it is necessary to: the squeegee hose is not obstructed. Eventually, to clean it, proceed as Take off the squeegee hose (3) from the coupling. -
Page 17: Cleaning Of Solution Tank And Filter
TWO-MONTHLY MAINTENANCE FRONT SQUEEGEE RUBBER CHECK Check the wear of the squeegee rubber and eventually replace it. For the replacement it is necessary to: Take off the squeegee hose (3). Disassemble the squeegee from the support rotating the levers (2) counterclockwise by sliding the stud bolts (1) in their slots. -
Page 18: Six-Monthly Maintenance
CHECK OF THE BRAKE Check the braking efficacy and that both pads (1) which act upon the traction wheels, in resting position, have got a distance of not more than 3mm from the wheels. If necessary, adjust them through the fixing nuts (2). -
Page 19: The Brushes Motor Does Not Work
Check that the battery connector is correctly plugged in. Verify that the switch (6) is on. THE TRACTION MOTOR DOES NOT WORK Switch off and on again the machine. Release the brake (10) until the signal lamp (3) comes off. Check that the red connector of the suction motor (1) is correctly Act upon the levers drive control. -
Page 20: Machine Does Not Clean Properly
MACHINE DOES NOT CLEAN PROPERLY Check that the suction hose is correctly inserted in the proper seat The brushes do not have the suitable bristle dimension: contact on the recovery tank. the authorized technical assistance. Clean the suction filter. The brushes have got worn bristles. Check the brushes wear Replace the rubbers if worn out. -
Page 23: Recommended Brushes
It is equipped with anchor points which permit the blocking of the abrasive pad during work. The pad is recommended to clean smooth floors. MACHINE CODE QUANTITY DESCRIPTION jade 50 48902010 Brush PPL 0,3 Ø 508 Irregular floors with large joints. 48902020 Brush PPL 0,7 Ø...
