CAUTION:
Understand Operator's Manual. Save These Instructions For
Future Reference.
For questions / comments, technical assistance or repair parts –
Please Call Toll Free: 1-866-917-4374 (M-F 8:30am-5:00pm EST).

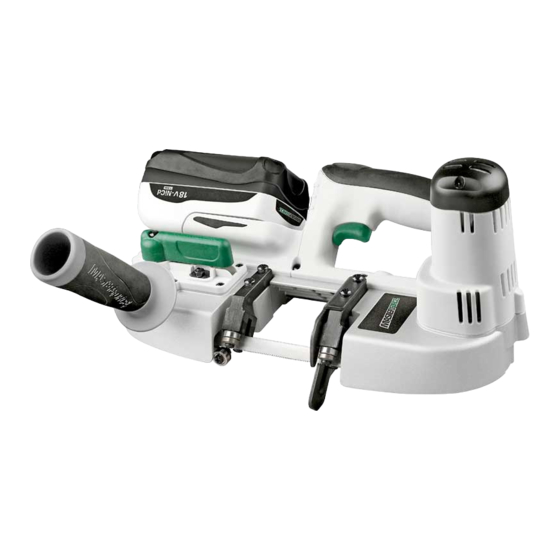

Band Saw
241-0440
OPERATOR'S MANUAL
To Reduce The Risk Of Injury, User Must Read And

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 241-0440 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MasterForce 241-0440

Summary of Contents for MasterForce 241-0440

  • Page 1 Band Saw 241-0440 OPERATOR’S MANUAL CAUTION: To Reduce The Risk Of Injury, User Must Read And Understand Operator’s Manual. Save These Instructions For Future Reference. For questions / comments, technical assistance or repair parts – Please Call Toll Free: 1-866-917-4374 (M-F 8:30am-5:00pm EST).

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Symbols ............Page 2 Safety Instructions .

  • Page 3: Safety Symbols

    SAFETY SYMBOLS Some of these following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely. Symbol Designation / Explanation Name Volts Voltage...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

  • Page 5: Work Area Safety

    SAFETY INSTRUCTIONS 3. Do not expose power tools to rain or WARNING: Read all safety wet conditions. Water entering a power tool warnings and instructions.Failure to will increase the risk of electric shock. follow the warnings and instructions 4. Do not abuse the cord. Never use the may result in electric shock, fire and / or cord for carrying, pulling or unplugging the serious injury.
  • Page 6 SAFETY INSTRUCTIONS 4. Remove any adjusting key or wrench 5. Maintain power tools. Check before turning the power tool on. A wrench misalignment or binding of moving parts, or a key left attached to a rotating part of the breakage of parts and any other condition power tool may result in personal injury.
  • Page 7 SAFETY INSTRUCTIONS SERVICE 4. Do not touch the blade or the workpiece immediately after operation; they may be extremely hot and could burn your skin. 1. Have your power tool serviced by a 5. Do not cut an oversized workpiece. qualified repair person using only identical 6.

  • Page 8: Overview / Specifications

    OVERVIEW Lock-off button Trigger switch Blade tightening lever Side handle Work steady rest Blade holder Blade SPECIFICATIONS PRODUCT SPECIFICATIONS No load Speed 550 FPM 28-13/16" Length Blade Size 1/2" Width .020" Thickness Compatible Blade 242-8451, 242-8452 Round piece diameter 2-1/2” Cutting Capacity or Rectangular piece 2-1/2”...

  • Page 9: Assembly

    ASSEMBLY UNPACKING WARNING: If any part is broken or missing, do not attempt to attach the This product has been shipped completely battery or operate the saw until the broken assembled. or missing parts are replaced. Failure to do 1. Carefully remove the tool and any so could result in possible serious injury.

  • Page 10: Operation

    OPERATION TO ATTACH BATTERY TRIGGER SWITCH (FIG. 2) PACK (FIG.1) FIG. 2 FIG. 1 To turn the tool ON, push the lock-off button and depress the trigger switch. 2. To turn the tool OFF, release the Lock the trigger switch in the “off” position. trigger switch.
  • Page 11 OPERATION WARNING: Be sure that the blade is FIG. 4 properly seated on the pulleys before starting the cut. NOTICE: For new blades replacement, find the compatible blade model No. 242-8451 242-8452 in MENARDS store (sold separately). REMOVING A SAW BLADE 1.

  • Page 12: Maintenance

    OPERATION Do not bear down while cutting. The When completing a cut, hold the tool firmly weight of the tool will supply adequate so it will not fall against the work-piece. pressure for the fastest and safest 7. Remove the saw from the cut before cutting.

  • Page 13: Troubleshooting

    MAINTENANCE WARNING: When servicing, use only identical MASTERFORCE replacement parts. Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by a qualified service techni- cian. TROUBLESHOOTING...
  • Page 14 NOTES Page 13...

  • Page 15: Warranty

    90-DAY MONEY BACK GUARANTEE: This MASTERFORCE brand power tool carries our 90-DAY Money Back ® Guarantee. If you are not completely satisfied with your MASTERFORCE brand ® power tool for any reason within ninety (90) days from the date of purchase, return...
  • Page 16 © 2017 Menard, Inc., Eau Claire, WI 54703 01/2017 Page 15...
