Summary of Contents for Franke FRDW60FS

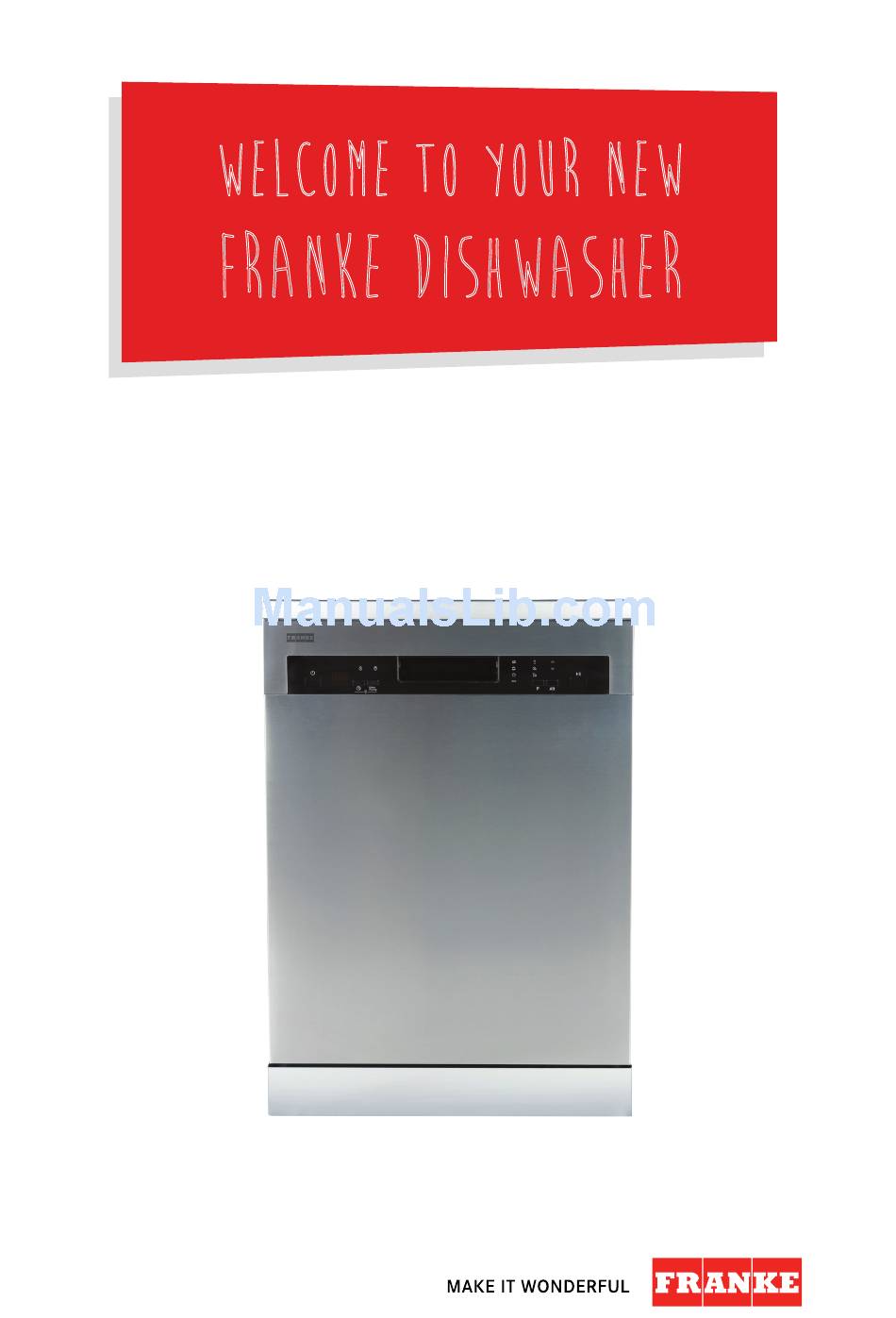

- Page 1 Welcome to your new Franke Dishwasher You’re about to begin a very happy and delicious relationship. Let’s get started. This is no ordinary dishwasher. FRDW60FS - FREESTANDING DISHWASHER...
- Page 2 Australia: 03 9700 9100 | info@prks.com.au New Zealand: 09 964 0400 | info@prks.co.nz WARRANTY Your Franke product is protected by a 2-year warranty. Should you ever need to make a warranty enquiry, simply contact our service department. Australia: 03 9700 9100 | service@prks.com.au New Zealand: 09 964 0400 | service@prks.co.nz...
-
Page 3: Table Of Contents
READ THIS MANUAL Dear Customer, This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm hourses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. - Page 4 CHAPTER 1 READY, SET UP, GO Your Franke dishwasher is designed to be set up quickly and easily - so you can start creating delicious masterpieces even sooner. Chapter 1 Ready, set up, go...
- Page 5 IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING GROUNDING INSTRUCTIONS • This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of anelectric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipmentgrounding conductor and a grounding plug.
-
Page 6: Quick Operation Guide
QUICK OPERATION GUIDE Switch on the appliance Open the door, press the On/Off button to switch on the appliance. Compartment A: Fill the detergent For each wash cycle.. Compartment B: dispenser For prorams with pre-wash only. (Follow the user instructions). Mechanical indicator C. - Page 7 OPERATION INSTRUCTION IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. CONTROL PANEL Extra Dr yi ng On/Off button: to switch on/off the appliances. Display screen: to show the remaining time and the state (running state, delay time, error codes etc) Delay button: press the button to add the delay time.
-
Page 8: Prior To Using For The First Time
PRIOR TO USING FOR THE FIRST TIME Before using your dishwasher for the first time: A) Fill the rinse aid dispenser B) Fill in detergent RINSE AID DISPENSER RINSE AID DISPENSER The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. -
Page 9: Detergent Dispenser
NOTE : Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don’t forget to replace the cap before you close dishwasher door. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". - Page 10 Adding detergent to dispenser D et er gentpow der D et er gentt abl et Fill in Detergent Fill the detergent dispenser with detergent. The marking indicates the dosing levels , as illustrated on the right: The place of main wash cycle detergent placed. The place of pre-wash cycle detergent placed.
-
Page 11: Loading The Dishwasher Basket
LOADING THE DISHWASHER BASKETS Recommendation • Consider buying utensils which are identified as dishwasher-proof. • Use a mild detergent that is described as ‘kind to dishes’. If necessary, seek further information from the detergent manufacturers. • For particular items, select a program with as low temperature as possible. •... -
Page 12: Cutlery Basket
THE METHOD LOADING NORMAL DISHWARE Loading the Upper Basket Loading the Lower Basket The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, serving dishes and... -
Page 13: Starting A Washing Program
STARTING A WASHING PROGRAM Wash Cycle Table Note:( ) Means: need to fill rinse aid into the Rinse-Aid Dispenser Detergent Running Energy Water Rinse Program Cycle Selection Information Description of Cycle pre/main time (min) (Kwh) Prewash (45 For all soiled loads, such Autowash(45~55 as pots,pans,casserole Rinse... -
Page 14: Turning On The Appliance
Turning On the Appliance Starting a cycle wash Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled Loading the Dishwasher basket ). Pour in the detergent (see the section entitled Detergent and Rinse Aid ). -
Page 15: Maintenance And Cleaning
At the End of the Wash Cycle When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher Wait for a few minutes before unloading the dishwasher to avoid scald the dishes and utensils are still hot and more susceptible to breakage. - Page 16 NOTES: • Inspect the filters for blocking after every time the dishwasher has been used. • By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush.
-
Page 17: Installation Instructions
How to Keep your Dishwasher in Shape • When not in Use for a Long Time • After every wash It is recommended that you run a wash cycle with After every wash, turn off the water supply to the the dishwasher empty and then remove the plug appliance and leave the door slightly open so that from the socket, turn off the water supply and... - Page 18 WARNING: • Improper connection of the equipment earthing conductor can result in the risk of an electric shock. • Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed. • Do not modify the plug provided with the appliance. If the plug does not fit properly to the outlet, please have a qualified electrician to install a proper outlet.
- Page 19 How to Drain Excess Water From Hoses If the sink is more than 1000mm higher than the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
-
Page 20: Chapter 2: Problem, Meet Solution
CHAPTER 2 problem, meet solution We don’t expect your experience with your new Franke dishwasher to be anything but wonderful, but here’s some trouble shooting remedies just in case. Chapter 4 Problem, meet solution... -
Page 21: Trouble Shooting
TROUBLE SHOOTING You shouldn’t have any issues with your Franke Appliance, however there are some problems which can easily be fixed by trouble shooting the table below. If you can’t find your problem, or the remedy has not fixed the issue, then give our friendly customer service team a call on 03 9700 9100. -
Page 22: Error Codes
Problem Possible Causes What to do The dishes were not See notes in “Loading the Dishwasher Baskets”. loaded correctly. The program was not Select a more intensive programme. See “Wash Cycle Table”. powerful enough. Not enough detergent Use more detergent, or change your detergent. was dispensed. - Page 23 CHAPTER 3 last but not least This section contains the warnings, precautions and legal notices to make sure everything runs smoothly. Chapter 3 Last but not least...
-
Page 24: Chapter 3 Last But Not Least
Technical Information Height 845mm Width 598mm Depth 600mm (with the door closed) Water Pressure 0.04 - 1.0MPa Power Supply See rating label Capacity 14 place settings Chapter 3 Last but not least... - Page 25 83 Bangholme Road Dandenong South VIC 3175 Australia Phone +61 3 9700 9100 +61 3 9700 9191 info@prks.com.au www.franke.com.au PR Kitchen & Washroom Systems NZ Ltd P.O Box 53171, Auckland Airport Auckland 2150 New Zealand Phone 09 964 0400 09 964 0401 info@prks.co.nz...
