START-UP PROCEDURE

Gas Control Options

The unit must be reviewed to determine if any of the listed gas
control options were supplied.
j Time Delay Relay
The Time Delay Relay is factory installed in the duct furnace
electrical junction box. The standard duct furnace is provided
for instantaneous fan operation. On a call for heat, the blower is
energized at the same time as the gas controls. The optional time
delay relay allows the gas controls to operate for approximately 30
seconds before the blower starts. This allows the heat exchanger
a warm up period so that the initial delivered air coming out of the
ductwork is not cool. The time delay relay also keeps the motor
running for approximately 30 seconds after the call for heat has
been satisfied to remove the residual heat from the heat exchanger.
k Low Gas Pressure Switch
The low gas pressure switch is factory installed in the duct furnace
above the gas train. The switch monitors the gas pressure
upstream of all the gas controls and shuts off the electric supply
to the ignition controller and combination gas valve if low gas
pressure is experienced. This will shut off all gas flow to the burner.
The switch has an automatic reset so that if the gas pressure
is interrupted and then is returned, the switch will automatically
allow the unit to operate when gas conditions are returned to the
allowable range of the pressure switch. The pressure switch range
is 2" to 14" W.C. and should be set to insure that the minimum
inlet gas pressure is available (6" W.C. for natural gas, 11" W.C. for
propane gas).
l High Gas Pressure Switch
The high gas pressure switch is factory installed in the duct
furnace above the gas train. The switch monitors the gas
pressure downstream of all the gas controls and shuts off
the electric supply to the ignition controller and combination
gas valve if high gas pressure is experienced right before the
manifold. This will shut off all gas flow to the burner. The switch
has a manual reset so that if the gas pressure is too high, a
service person must check the unit to make sure that none of
the gas controls have been damaged by the high gas pressure
and then reset the switch to allow the unit to operate when gas
conditions are returned to the allowable range of the pressure
switch. The pressure switch range is 2" to 16" W.C. and should
be set to insure that the maximum manifold gas pressure is not
exceeded (3.5" W.C. for natural gas, 10" W.C. for propane gas).
m Supply Air Fire Stat
The fire stat is factory installed in the duct furnace electrical junction
box with the sensor in the discharge air stream. In case of elevated
temperatures in the supply air, the manual reset switch shuts
down the entire unit. If the limit temperature is exceeded, a service
person must inspect the unit for the cause of the high discharge
temperature, take corrective action, and then reset the switch.
n Timed Freeze Protection
The timed freeze protection system is factory installed in the
duct furnace electrical junction box with the sensor (30°-75°F
adjustable) factory installed in discharge air stream. On initial
start-up, the timed delay in the system allows the unit to go
through the normal ignition sequence. The timed delay is a
manual reset switch and adjustable for 1-10 minutes. In the
event that the unit fails to fire after this period, the discharge air
sensor will sense the cold air and will shut down the entire unit.
16
o Air Flow Proving Switch
The air flow proving switch is factory installed in the duct
furnace electrical junction box. The air flow proving switch
monitors the pressure differential between the duct furnace
and the atmosphere. The purpose of the air flow proving switch
is to cut power to the gas controls if a positive pressure is not
measured by the switch. This could be caused by a lack of air
movement through the heat exchanger.
NOTE: The air flow proving switch will prevent any heat
exchanger warm-up (the unit should not be equipped
with a time delay relay) because the gas controls can
not be energized until air flow is proven.
Setting the Air Flow Proving Switch
The range of the air flow proving switch is adjustable between 0.17"
to 5.0" W.C.
1. Set the thermostat so that there is a call for heat. This should
start the blower and then the burner ignition sequence.
2. Turn the set screw of the pressure switch clockwise until it stops.
This will set the pressure at 5.0" W.C.
3. Turn the screw counter-clockwise until the gas controls light and
then one additional full turn (This is approximately 0.25'' W.C.).
This will allow for dirty filters or any other slight static pressure
increases in the system.
p Manual Reset High Limit
The manual reset high limit switch is factory installed in place
of the standard automatic reset high limit switch located in the
duct furnace electrical junction box. In case of a failure of the
blower motor, blockage of the inlet air, etc., the manual reset
switch prevents the unit from cycling on the high limit. If the
limit temperature is exceeded, a service person must inspect
the unit for the cause of the high discharge temperature, take
corrective action, and then reset the switch.

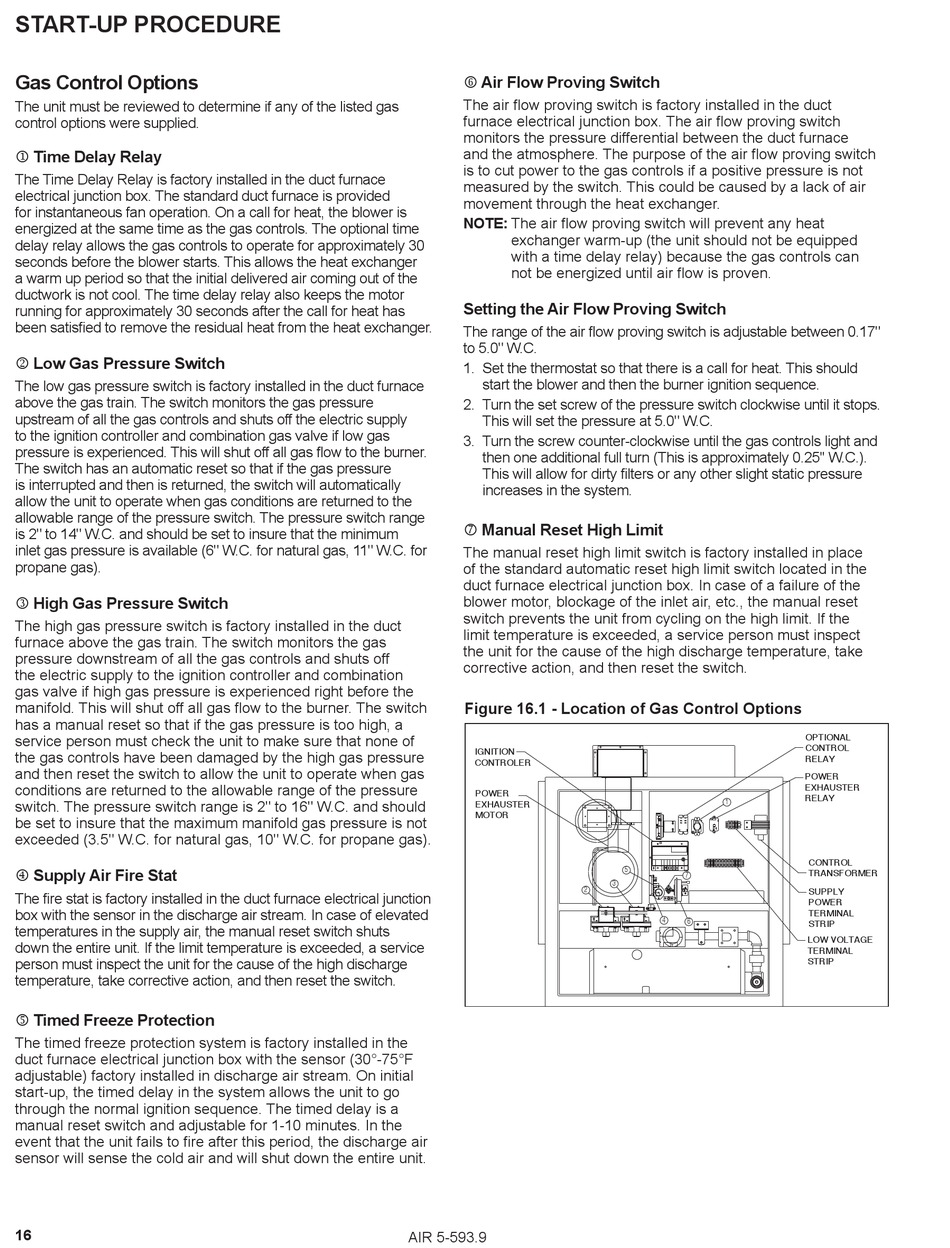

Figure 16.1 - Location of Gas Control Options
IGNITION
CONTROLER
POWER
EXHAUSTER
MOTOR
2
AIR 5-593.9
1
5
7
3
4
6
OPTIONAL
CONTROL
RELAY
POWER
EXHAUSTER
RELAY
CONTROL
TRANSFORMER
SUPPLY
POWER
TERMINAL
STRIP
LOW VOLTAGE
TERMINAL
STRIP
