Ouput transport ProCash 2000xe RL

Ouput transport ProCash 2000xe RL
•
Pull the customer panel out of the device (refer to the operating and service
manuals of the ProCash 2000xe).
When replacing the output transport make sure that it fits properly in
i
the guides of the stacker. Pull the cash media dispenser out of the
device, if necessary, and then push it back in.
Adjustment
6-6
Cash Media Dispenser Version 4 - Service Manual
Removal/Installation of Components

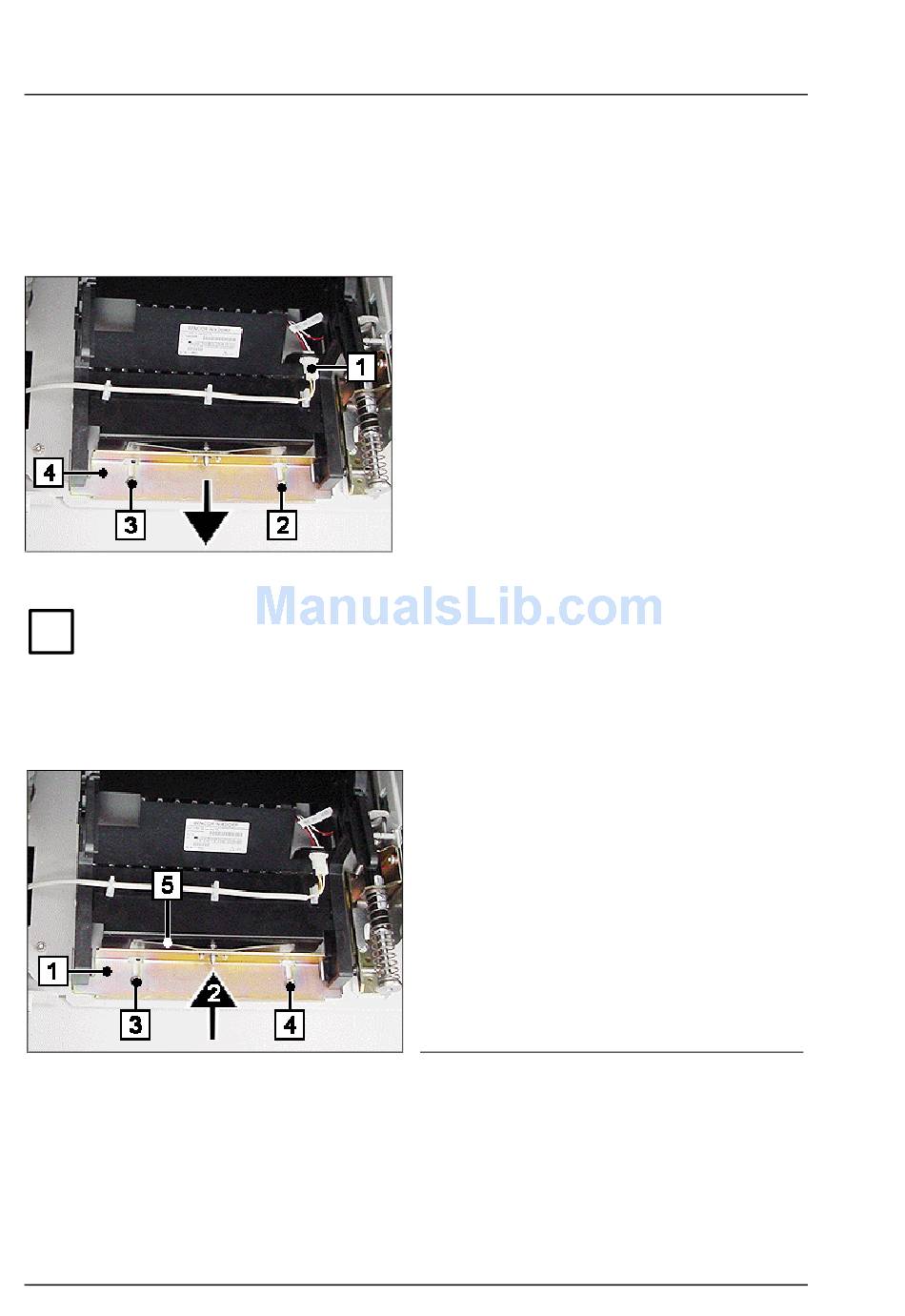

Detach connector (1) and remove the
cable from the securing clips.
Loosen screws (2) and (3) and pull the
plate (4) a little out of the device (see
arrow).
Pull the output transport a little in the
direction of the arrow and remove it
upwards.
Reinstall it by following the same steps
in reverse order.
Push the plate (1) up against the
output transport (2) with the cash
media dispenser pushed in.
Then push the plate approx. 3 to
5 mm back and secure it with screws
(3) and (4).
When the plate is secured, the spring
(5) must still exert noticeable pressure
on the output transport.
01750060162 A
