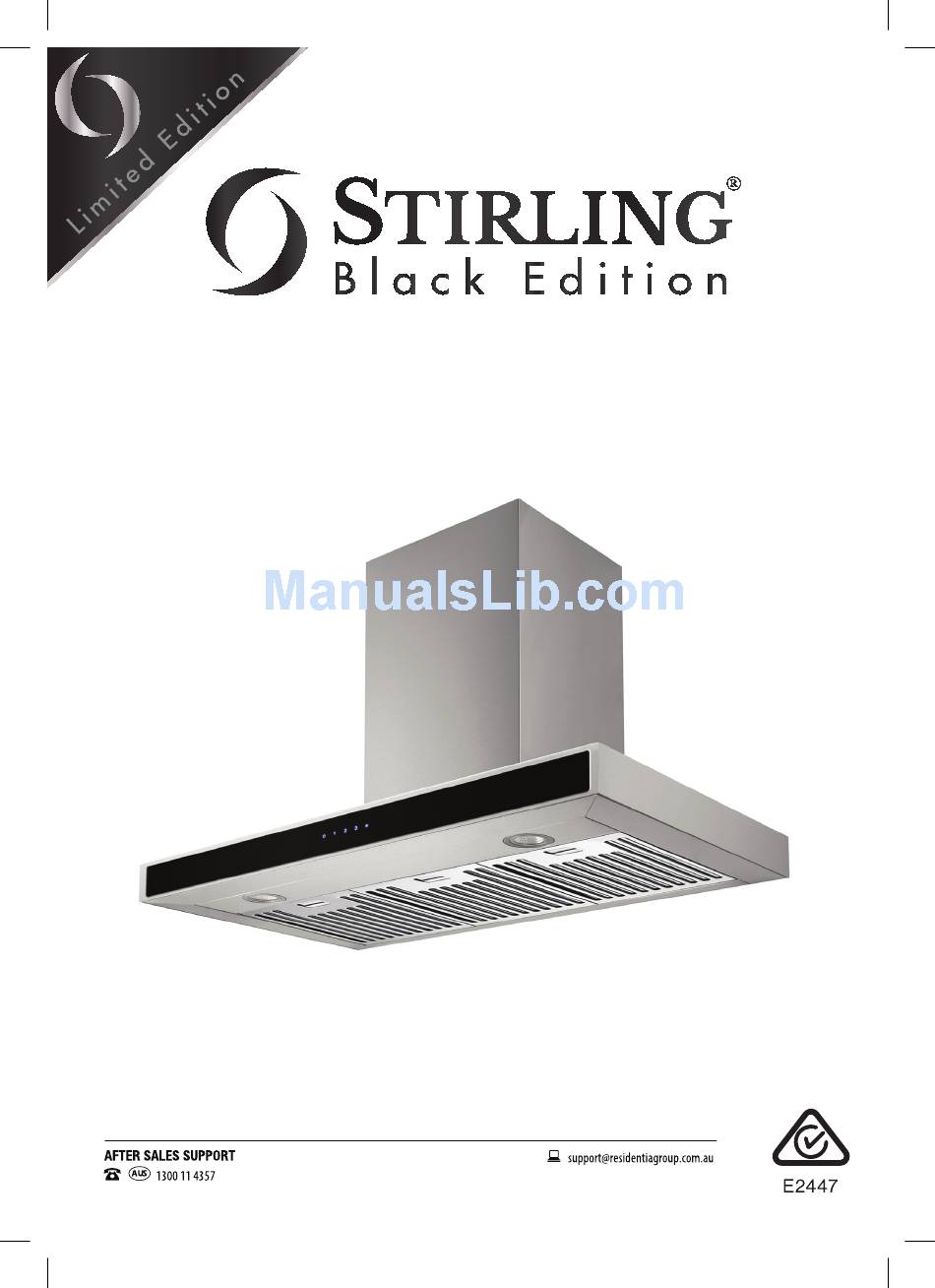

- Page 1 90cm Slimline Rangehood Model Number SRH91B INSTRUCTION MANUAL IM Version No.: V1.3 Issue Date: 08/2016 MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016...
- Page 2 Welcome Congratulations on choosing to buy a STIRLING® product. All products brought to you by STIRLING® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year In Home Warranty. We hope you will enjoy using your purchase for many years to come.
-
Page 3: Table Of Contents
09 Installation Requirements 10 Installation 13 Operating Your Rangehood 14 Cleaning and Maintenance 15 Troubleshooting & Technical Data 16 Other Useful Information 17 Repair and Refurbished Goods or Parts Notice 18 Warranty Returns MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016... - Page 4 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016...
-
Page 5: General Safety
• Use common sense: These instructions are not intended to cover every possible condition and situation. As with any electrical household appliance, common sense and caution are therefore always recommended when installing, operating and maintaining the equipment. MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016... - Page 6 Liability: We assume no liability for any eventual damages caused by incorrect installation, misuse of the product or noncompliance with these instructions. CAUTION: Accessible parts may become hot when used with cooking appliances. MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016...
-
Page 7: Product Overview

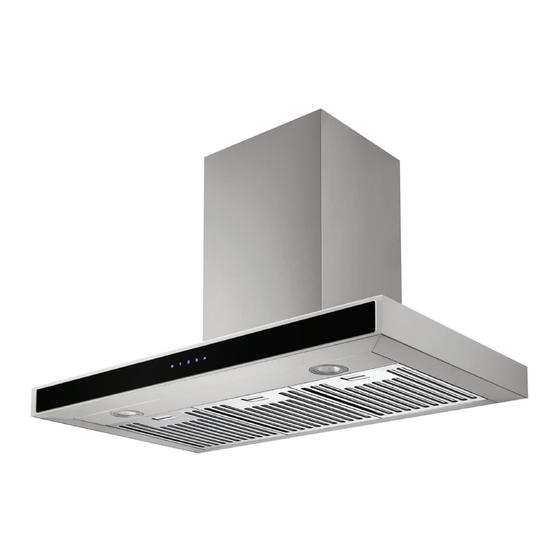

Product Overview 90cm Slimline Rangehood Layout Key: 1 Flue Cover 2 SS Baffle Grease Filters 3 LED Light 4 Control panel 5 Canopy MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016... -
Page 8: Specification
Screws (ST4 x 8mm) Wall Plugs (8mm) SS Inner flue extension cover Rangehood wall mounting bracket SS Outer flue cover Outer flue cover bracket Expandable 150mm ducting pipe Inner flue extension cover bracket MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016... -
Page 9: Installation Requirements
After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment. All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016... -
Page 10: Installation
• Over open fl ame grillers or barbecues, the Gas Regulations require the fi lters of the rangehood to be at least 1200mm above the cooking surface. Fig. 4 Rangehood base Minimum distance – Electric: 600mm – Gas: 650mm Maximum distance – Either: 750mm Top of cooktop MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016... - Page 11 14. Fix the inner flue extension cover (Part ID 2) to the inner flue extension cover bracket (10) using the screws (ST4 × 8mm, 6) (see Pic C). Pic. A MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016...
- Page 12 Pic. B Pic. C MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016...
-
Page 13: Operating Your Rangehood
Use the high speed setting when cooking on multiple zones or when the density of smoke/steam increases. Light Button Press the (light button symbol) to turn the LED lights on or off. MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016... -
Page 14: Cleaning And Maintenance
After Sales Support for further assistance. Any electrical work should only be completed by a suitably licenced and authorised person. • If you’re using a carbon filter, it should never be exposed to heat. MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016... -
Page 15: Troubleshooting & Technical Data
Technical data Electrical details: Rated Voltage: 220-240VAC, 50/60HZ | Rated Power: 213W MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016... -
Page 16: Other Useful Information
Other Useful Information Spare parts Our after sales support centre stocks a wide range of spare parts for the SRH91B STIRLING Rangehood. To purchase a part, call the centre on 1300 11 43 57 or email us at support@residentiagroup.com.au • Blower •... -
Page 17: Repair And Refurbished Goods Or Parts Notice
Please telephone us on 1300 11 43 57 or write to us at: Residentia Group 1/32 Wangaratta St Richmond VIC 3121 Australia Email: support@residentiagroup.com.au Helpline hours of operation: Mon–Fri 9:00 AM - 5:00 PM 0000 000 000 www.xxxxxxx.com MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016... - Page 18 MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016...
- Page 19 This page is intentionally left blank MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016...
- Page 20 MODEL: SRH91B | PRODUCT CODE: 54296 | 08/2016...
