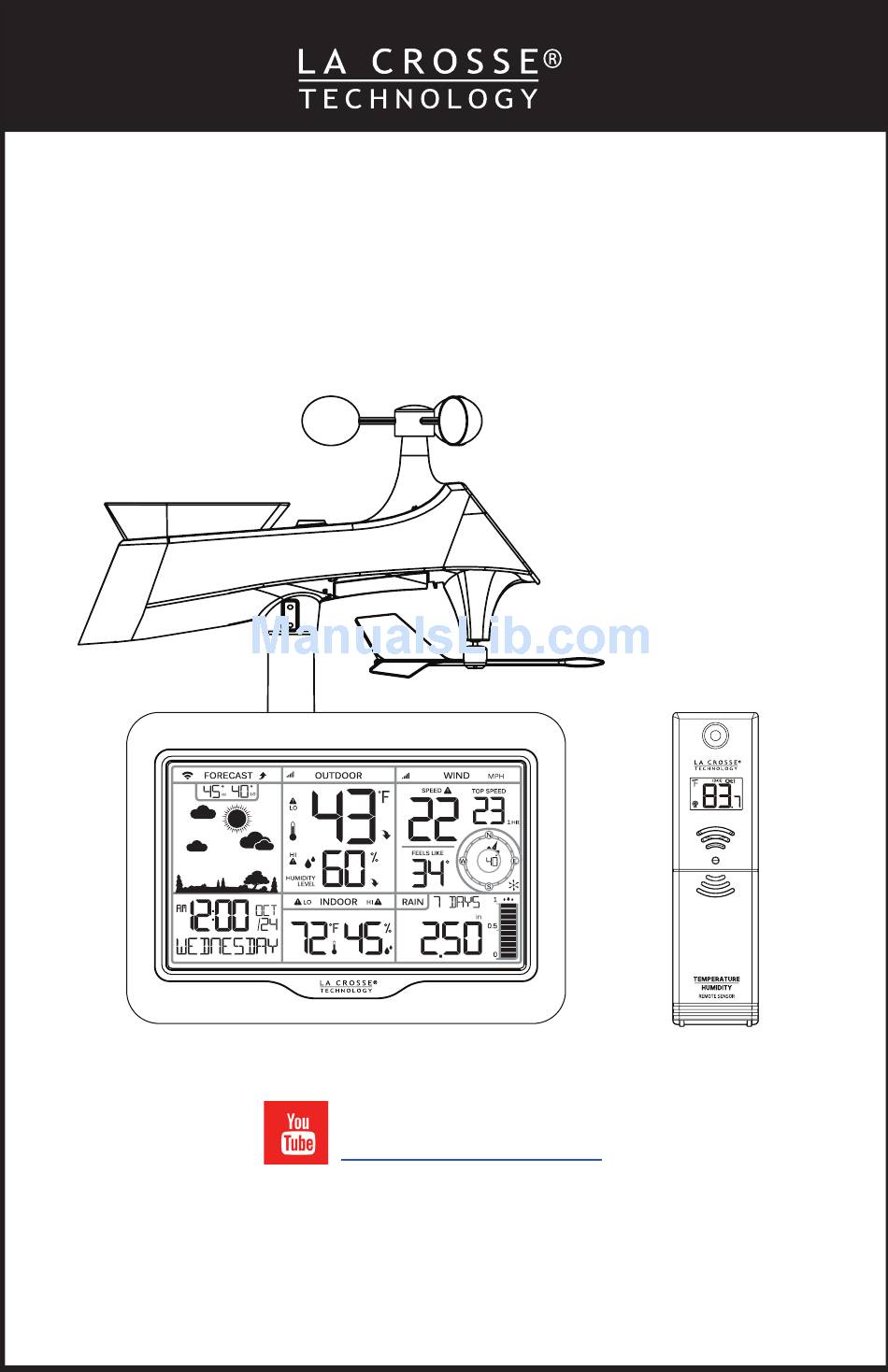

Page 1: Forecast Station
Professional Weather Forecast Station For online video support: http://bit.ly/LaxTechTalk Instructional Manual Model: S85807 DC:082616 Protected under U.S. Patents: 5,978,738 | 6,076,044 | RE43903... -
Page 2: Table Of Contents
Table of Contents Setup Preparation ....Setup ........Display Icons ......Wind Readings ......Wind History ......Rain Readings | History .... Temperature/ Humidity HI | LO Weather Alerts ......Set Weather Alerts ....Weather Forecast Icons .... Seasonal Trees ...... -
Page 3: Setup Preparation
Setup Preparation: Here are some items needed to setup your station (not included): 1. Phillips head screwdriver for assembly. 2. Fresh Batteries: 5 (five) AA alkaline or lithium batteries for the sensors. 3 (three) AAA alkaline batteries for the station (optional). For best results: •... - Page 4 Configure basic settings. Hold the SET button to enter settings. Press and release the +/- buttons to make adjustments and the SET button to confirm. Settings order: • BEEP ON/OFF • Time zone (-12 to +12) • Auto DST ON/OFF (Daylight Saving Time) •...
- Page 5 7. Year 8. Month 9. Date 10. Fahrenheit | Celsius 11. Wind Direction 12. Wind Speed (MPH | KMH) (degrees | letters) 13. Rain (INCH | MM) • Press the LIGHT button at any time to exit. • After 20 seconds with no button press, the station will default back to normal time display.
-
Page 6: Display Icons
Display icons: WIFI Strength Temperature Trend Arrows Percent Humidity Sensor Strength Humidity HI | LO Alert Wind Direction Fahrenheit | Celsius Wind Speed Forecast Icon Seasonal Trees Rainfall Graph Wind Readings: • Current Speed: Highest speed past 30 seconds • Top Speed: Highest speed in the past hour •... -
Page 7: Wind History
Wind History: Press and release the WIND button to view the maximum wind history values. • One Hour: past 60 minute period (default Top Speed record, already shown) • -hour: Past 24 hour period, from last record • 7 Days: Past 7-day period, from last record •... - Page 8 • Select your rain history and the station will keep your selection. • After viewing a history record for 5 seconds, the station will return to the normal view. One Hour 24 Hours Day (12:00am - 11:59pm) 7 Day Month Year Total Reset Rainfall Readings (each resets individually):...
-
Page 9: Temperature/ Humidity Hi | Lo
Temperature/Humidity HI | LO Readings: Press and release to view HI/LO temperature and humidity readings with time/date stamp. • Outdoor temperature HIGH • Outdoor temperature LOW • Outdoor humidity HIGH • Outdoor humidity LOW • Indoor temperature HIGH • Indoor temperature LOW •... -
Page 10: Weather Alerts
Indoor Humidity LO Indoor Humidity HI Feels Like LO Feels Like HI Dew Point Weather Alerts: There are 20 weather alerts available on this weather station. • Outdoor LOW Temperature ON/OFF • Outdoor LOW Temperature Value -40°F-140°F (-40°C-60°C) • Outdoor HIGH Temperature ON/OFF •... -
Page 11: Set Weather Alerts
• Indoor LOW Humidity ON/OFF • Indoor LOW Humidity Value 10%RH-99%RH • Indoor HIGH Humidity ON/OFF • Indoor HIGH Humidity Value 10%RH-99%RH • 24-hour Rainfall ON/OFF • 24-hour Rainfall Value 0-393 inches (0-99.9mm) • High Wind Speed ON/OFF (CURRENT wind) •... -
Page 12: Weather Forecast Icons
Weather Forecast Icons: • The forecast icons are determine by the barometric pressure sensor. • The tendency arrow show the changes on the barometric pressure is rising or falling. • When Outdoor temperature is below 32 F and the forecast is RAIN or T-STORM, the LCD will display SNOW. -
Page 13: Sensor Search
Sensor Search: Each sensor has a unique ID and will be “parked” to the correct sensor location on the display until manually deleted. • If sensor loses connection to the weather station for any reason, the weather station will show dashes after 30 minutes. •... -
Page 14: Mounting Instructions
Mounting Instructions: TX233TH Temperature/Humidity Sensor Option 1: Install one mounting screw into a wall. • Place the transmitter onto the screw. • Option 2: Insert the mounting screw through • the front of the transmitter and into the wall. Tighten the screw to snug (do not •... -
Page 15: Replace Wind Cups
The maximum wireless transmission range to the station is over 330 • feet (100 meters) in open air, not including walls or trees. Mount sensor vertically. • Cups should be on the top of the sensor. • Attach to mounting surface with screws through the mounting •... -
Page 16: Replace Directional Vane
Replace Directional Vane: 1. Loosen the screw on side of vane 2. Remove direction vane 3. Install new vane 4. Tighten screw Factory Restart: The factory reset will return the weather station to its default settings. This will clear all previous recorded history, so you may want to write down data before taking this step. -
Page 17: Follow Us On Social Media
Follow Us on Social Media S85807 www.lacrossetechnology.com/S85807 Page | 16... -
Page 18: Wifi Icon
WIFI Icon: • The connected icon will flash while station is searching for WIFI connection. It will flash up to 1 hour. • The station must operate on AC power for the WIFI to work. Slow Flash - no WIFI network connection-check connection Fast Flash - configure Weather Connect APP Solid - Connected Not displayed -No WIFI router-check router... -
Page 19: Specifications
Specifications: • Temperature Range: 32°F to 122°F (0°C to 50°C) Indoor • Humidity Range: 10% to 99% RH • Update interval: About every 30 seconds • Temperature Range: -40°F to 140°F (-40°C to 60°C) TH Sensor • Humidity Range: 10% to 99% RH •... -
Page 20: Warranty And Support
Warranty and Support: La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. Before returning a product, please visit the product web page for more information or contact our friendly customer support: Online product web page: www.lacrossetechnology.com/S85807...
