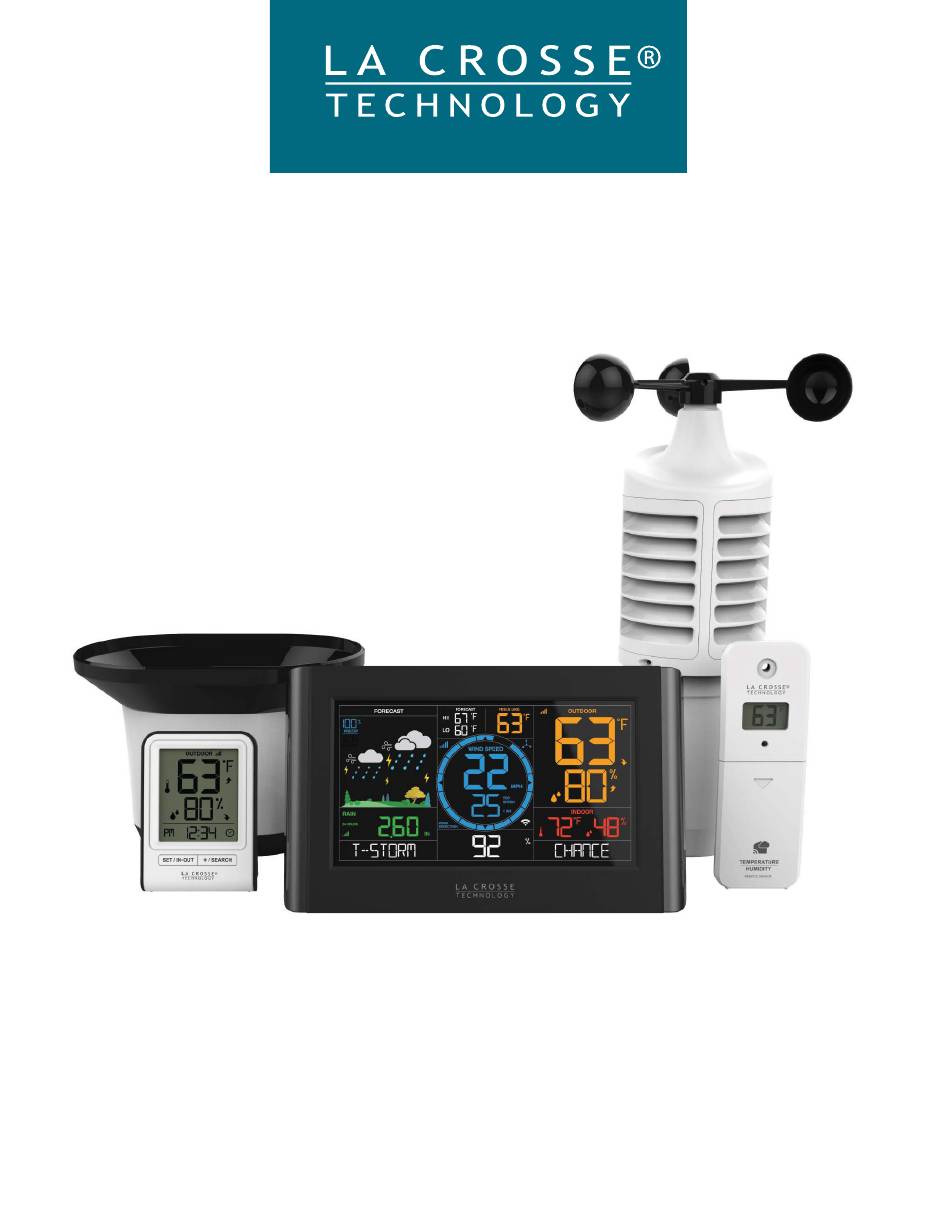

PROFESSIONAL

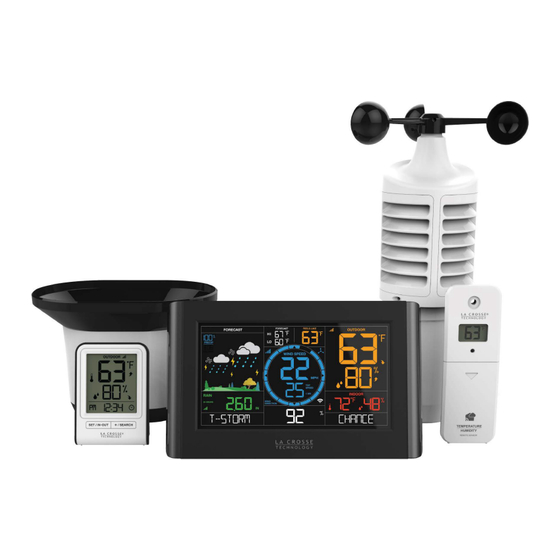

Remote Monitoring Weather Station
Welcome!
Congratulations on your new Professional Weather Station and welcome to the
La Crosse Technology family! This product was designed with you in mind by our
hometown team of weather enthusiasts based in La Crosse, Wisconsin.
Model: V22-WRTHv2
DC: 020824
Wi-Fi Professional Station
Page | 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for La Crosse Technology V22-WRTHv2
Summary of Contents for La Crosse Technology V22-WRTHv2
- Page 1 Remote Monitoring Weather Station Welcome! Congratulations on your new Professional Weather Station and welcome to the La Crosse Technology family! This product was designed with you in mind by our hometown team of weather enthusiasts based in La Crosse, Wisconsin. Model: V22-WRTHv2...
-
Page 2: Table Of Contents
TABL E O F C ON TENTS Wind Speed Readings & History Quick Setup Rainfall Readings & History Quick Mounting Tips Temperature/Humidity Readings & HI/LO Button Functions Records Weather Station Icons Temperature Trend Arrows Connect to La Crosse View™ App Sensor Reception Indicators Benefits of Connecting to La Crosse View™... -
Page 3: Quick Setup
2. Insert 2 - AA batteries into your LTV-R3 Rain Sensor. 3. Insert 2 - AA batteries into your LTV-TH2 Thermo-Hygro Sensor. 4. 5 volt power cord (required) into V22-WRTHv2 station *3-AA batteries for optional backup of your time and date 5. -
Page 4: Weather Station Icons
WE ATHE R STAT IO N I CO N S Sensor Reception Icon Weather Forecast Icons Trend Arrows Low Battery Icons Fahrenheit or Celsius - Temperature Inches or Millimeters of Rain Percentage Wind Speed Icon Relative Humidity Icon Miles or Kilometers - Wind Speed Wi-Fi Connection Icon Temperature Icon Standalone stations can only display... -
Page 5: Connect To La Crosse View™ App
C O N N ECT TO L A C R OSSE VIEW™ A PP M OBIL E D E V I CE R EQ U I R EM EN TS iOS Requirements: Mobile device with iOS with cellular or Wi-Fi service Android Requirements: Mobile device with Android OS with cellular or Wi-Fi service GET YOUR STATION READY... -
Page 6: Benefits Of Connecting To La Crosse View
When your sensors are ready to be added, you’ll see your app’s cloud turn red. Press this Cloud Icon to begin adding your sensors. BE N EFITS OF C ON NE CT I NG TO LA C R OSS E V IEW ™ FEATURES STANDALONE CONNECTED... - Page 7 E N HAN CED LAC RO SSE V IEW C O NNEC TED FEATUR E S. • Advanced Forecast Icons & Chance of Precipitation (12 Hour Forecast) • AccuWeather HI/LO Temperatures • AccuWeather Wind Direction • Custom Data Streams A DVA N CED F OR E CAST & C H A NC E OF PR EC IP ITATIO N SUNNY PARTLY SUNNY CLOUDS...
-
Page 8: Accuweather Hi/Lo Temperatures
AC C U WEAT HE R H I/ LO TEM PERATUR ES FORECAST FEELS LIKE • When connected, your daily AccuWeather HI/LO Temperature predictions will display in this section. • If unconnected, this section will display your Outdoor Temperature Records registered daily by your Thermo-Hygro Sensor. -
Page 9: Custom Data Streams
CU STOM DATA STR E AM S Use the Data Stream Menu in the La Crosse View™ app to select up to 3 items to stream on your station. 1. Open the La Crosse View™ app and swipe until you find your station’s device page. 2. -
Page 10: Status Messages When Connected
STATU S MESSAGE S W HE N C ON NEC TED Quick Tip: • The Wi-Fi Icon indicates Wi-Fi connection- not necessarily app connection. • The Internet Icons by your Forecast, Wind Direction and HI/LO Temperatures will indicate connection to the La Crosse View App and Weather Server. -
Page 11: Features Of Your Weather Station
FE ATURE S OF YOU R W E AT H ER STATI ON Your station provides most functionality when connected to the La Crosse View app. However it is fully functional as a standalone station. Here we have included the details for various functions of your station: •... -
Page 12: Wind Speed Readings & History
WI N D S PEE D R E AD INGS & H I STORY Wind Speed: Standalone Station • Reflects highest current wind speed WIND SPEED Top Speed: • Reflects highest wind speed in the past 60 minutes. MP H TO P Wind Cup animation: SPEED... -
Page 13: Rainfall Readings & History
Reset Wind Speed History: 1. Press the WIND button to view individual wind speed readings. 2. Hold the MINUS button for five seconds to reset the individual value. 3. Wind speed reading will reset to current wind speed, time and date. RA I N FAL L R E A D IN GS &... -
Page 14: Temperature/Humidity Readings & Hi/Lo Records
RAI N RAIN RAI N 24 HOURS 1 HOU R RAIN 1 YEA R RAI N 7 DAYS RAI N 1 MONT H RAI N TOTAL Reset Rainfall History: 1. Press and release the RAIN button to view individual rain readings. 2. -
Page 15: Temperature Trend Arrows
OUTDOOR OUTDOOR INDOOR INDOOR OUTDOOR OUTDOOR INDOOR INDOOR FEELS LIKE FEELS LIKE OUTDOOR Reset HI/LO Temperature/Humidity Records: 1. Press and release the TEMP button to view individual temperature/humidity readings. 2. Hold the MINUS button for five seconds to reset the individual value. 3. - Page 16 SE N S OR I D & SE NSO R S EARC H Your station and each sensor have a unique ID number that will identify them in the La Crosse View app. This has the added bonus of locking them into your weather station until you manually delete them. View ID numbers in station: Press and release the SENSOR button.
-
Page 17: Delete Sensors
D EL ET E S E NSO R S 1. Press and release the SENSOR button to view sensor type and ID. 2. Hold the MINUS button to delete the sensor from the station. 3. Deleted sensor can no longer show on station. Batteries should be removed. 4. - Page 18 DE TA ILE D SET U P & MO U N TING LTV-W1 Wind Speed Sensor 1. Turn the battery cover of your wind sensor to the left. 2. Install fresh “C” batteries. 3. Carefully align and turn battery cover right to tighten. 4.
- Page 19 LTV-R3 Rain Sensor: 1. Flip open both locking tabs on your rain sensor and lift off the funnel portion. 2. Pull up on the battery cover and remove. 3. Install 2-AA batteries according to polarity. 4. Reposition the battery cover over the battery compartment, and firmly push down to lock it back into place 5.
- Page 20 Celsius display on sensor. Battery Cover V22-WRTHv2 Weather Station: 1. Insert the power cord into a wall outlet, then into your station. Optional: Insert 3 AA batteries into your station to maintain time/date in the event of a power outage.
-
Page 21: Bonus Station Setup
BO NUS STAT ION SE T UP As an added bonus, we’ve included an LTV-D1 Bonus Station to provide basic temperature and humidity readings in another room of your home. Your Bonus Station will receive its data from the included LTV-TH2 Thermo-Hygro Sensor. -
Page 22: Stay In Touch
Search for Outdoor Sensor: In the rare event your Bonus Station loses connection with the OUTDOOR Thermo-Hygro sensor, the outdoor readings will show dashes. • Simply hold the +/SEARCH button for 3 seconds to search for the sensor. • The sensor reception icon will flash while searching. Restart: 1. -
Page 23: Specifications
SP E CI FICAT ION S Indoor V22-WRTHv2 Temperature Range: 32°F to 99°F (0°C to 37°C) LTV-D1 Temperature Range: 32°F to 122°F (0°C to 50°C) Both Stations Humidity Range: 10% RH to 99%RH Thermo-hygro Sensor Temperature Range: -40°F to 140°F (-40°C to 60°C) Note: Temperatures below -20°F (-29°C) require Lithium batteries in the... -
Page 24: Care And Maintenance
Dimensions V22-WRTHv2 Station: 8.22” W x 1.18” D x 5.83” H (22.88cm W x 3.0 cm D x 14.81cm H) LTV-TH2 Thermo-hygro Sensor: 1.97” W x 0.75” D x 5.73” H (5.0cm L x 1.91cm W x 14.55cm H) LTV-W1 Wind Speed Sensor: 7.10”... -
Page 25: Warranty And Support
Our knowledgable customer support team is available: Mon-Fri 8am-6pm CST La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. La Crosse Technology, Ltd, 2830 S. 26th St.,...
