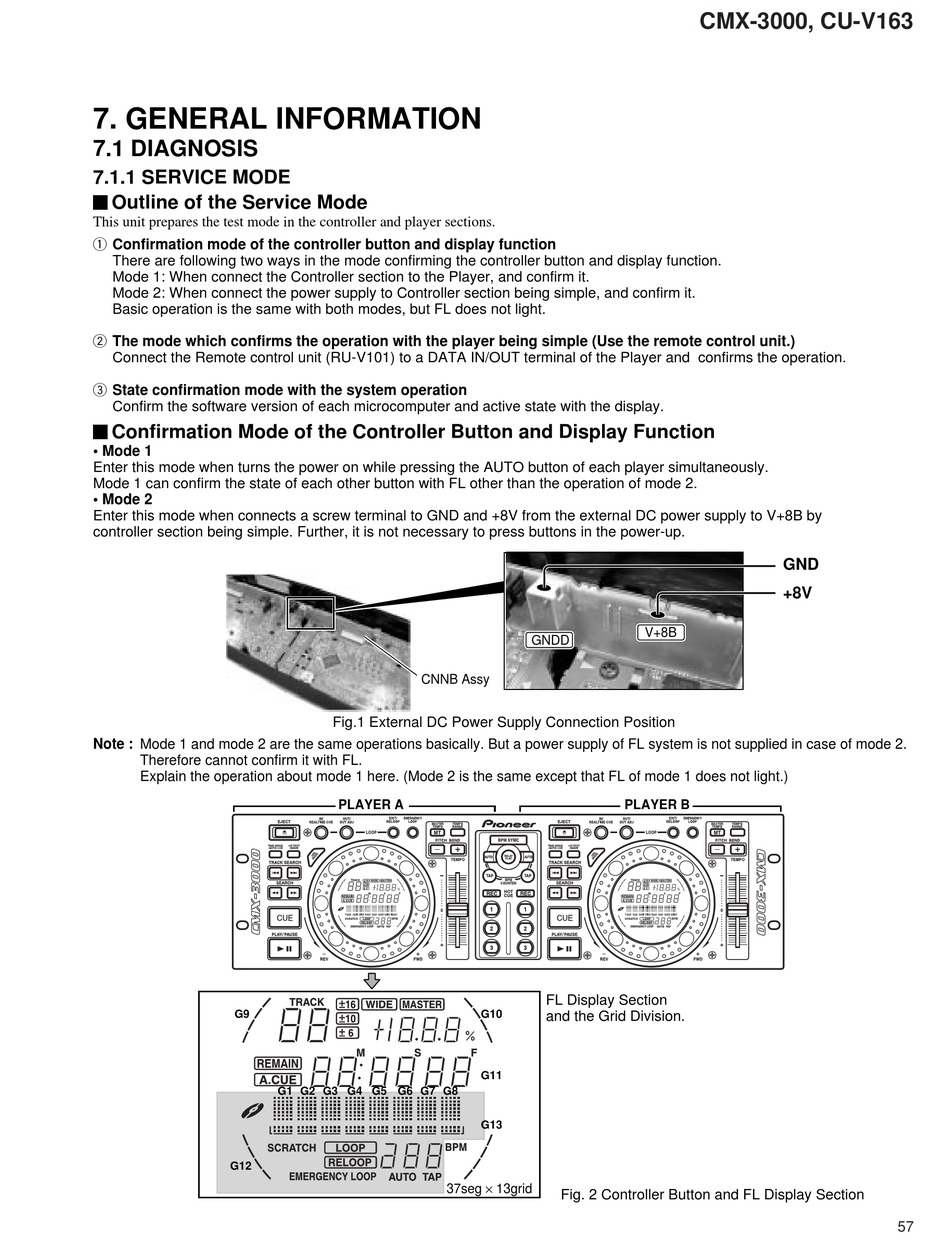

7. GENERAL INFORMATION
7.1 DIAGNOSIS
7.1.1 SERVICE MODE
Outline of the Service Mode
This unit prepares the test mode in the controller and player sections.
1 Confirmation mode of the controller button and display function
There are following two ways in the mode confirming the controller button and display function.
Mode 1: When connect the Controller section to the Player, and confirm it.
Mode 2: When connect the power supply to Controller section being simple, and confirm it.
Basic operation is the same with both modes, but FL does not light.
2 The mode which confirms the operation with the player being simple (Use the remote control unit.)
Connect the Remote control unit (RU-V101) to a DATA IN/OUT terminal of the Player and confirms the operation.
3 State confirmation mode with the system operation
Confirm the software version of each microcomputer and active state with the display.
Confirmation Mode of the Controller Button and Display Function
• Mode 1
Enter this mode when turns the power on while pressing the AUTO button of each player simultaneously.
Mode 1 can confirm the state of each other button with FL other than the operation of mode 2.
• Mode 2
Enter this mode when connects a screw terminal to GND and +8V from the external DC power supply to V+8B by
controller section being simple. Further, it is not necessary to press buttons in the power-up.
Note : Mode 1 and mode 2 are the same operations basically. But a power supply of FL system is not supplied in case of mode 2.
Therefore cannot confirm it with FL.
Explain the operation about mode 1 here. (Mode 2 is the same except that FL of mode 1 does not light.)
G9
G12
CNNB Assy
Fig.1 External DC Power Supply Connection Position
PLAYER A
G1 G2 G3 G4 G5 G6 G7 G8
37seg × 13grid
V+8B
V+8B
GNDD
GNDD
PLAYER B
FL Display Section
G10
and the Grid Division.
G11
G13
Fig. 2 Controller Button and FL Display Section
CMX-3000, CU-V163
GND
+8V
57
