6. ADJUSTMENT

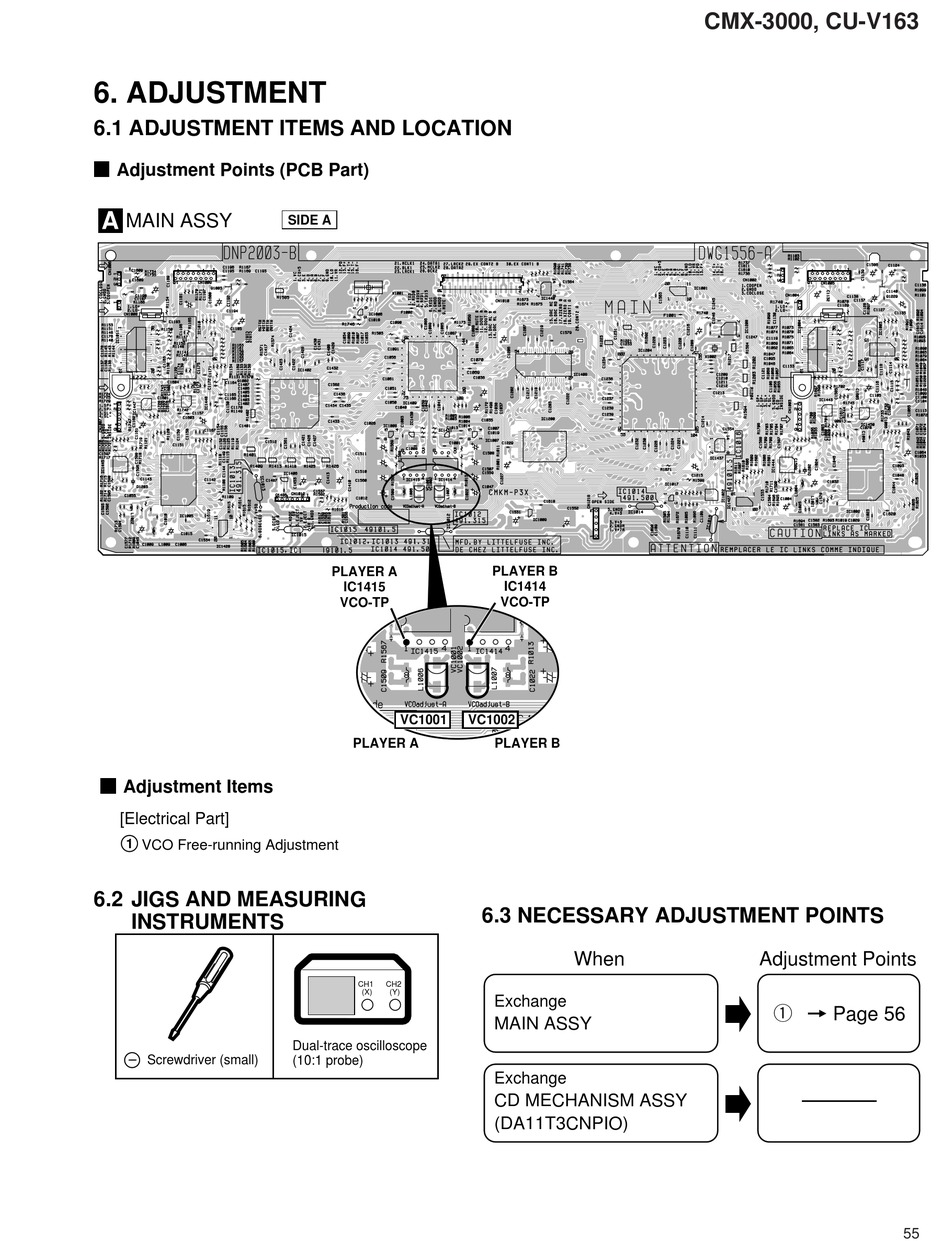

6.1 ADJUSTMENT ITEMS AND LOCATION
Adjustment Points (PCB Part)
A
MAIN ASSY
Adjustment Items
[Electrical Part]
1 VCO Free-running Adjustment
6.2 JIGS AND MEASURING
INSTRUMENTS
Screwdriver (small)
SIDE A
PLAYER A
IC1415
VCO-TP
VC1001 VC1001 VC1002 VC1001
PLAYER A
CH1 CH2
(X) (Y)
Dual-trace oscilloscope
(10:1 probe)
PLAYER B
IC1414
VCO-TP
PLAYER B
6.3 NECESSARY ADJUSTMENT POINTS
When
Exchange
MAIN ASSY
Exchange
CD MECHANISM ASSY
(DA11T3CNPIO)
CMX-3000, CU-V163
Adjustment Points
