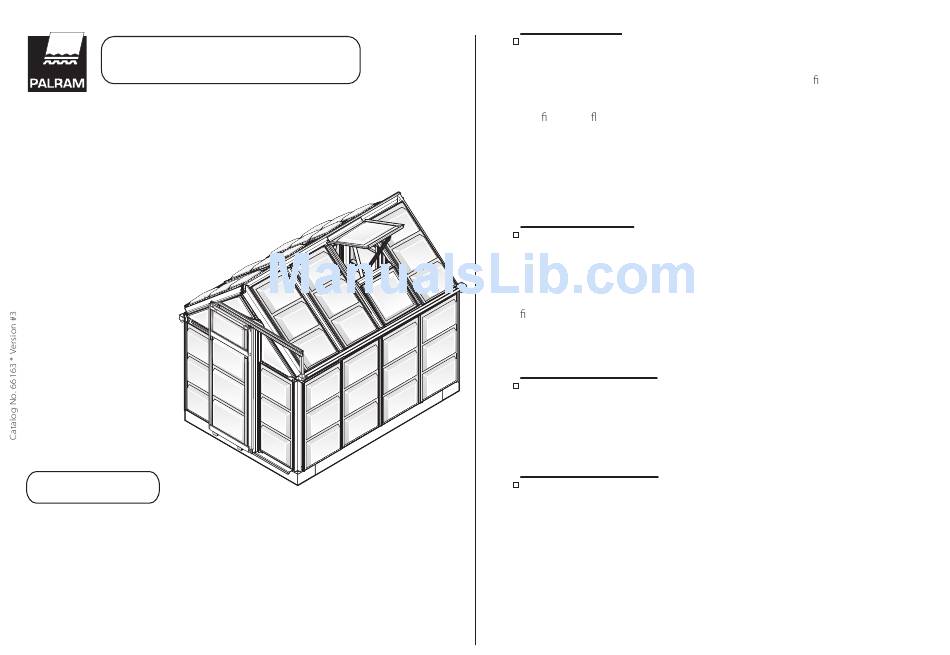

AS S EM BL Y I N S TR U CTI ON S

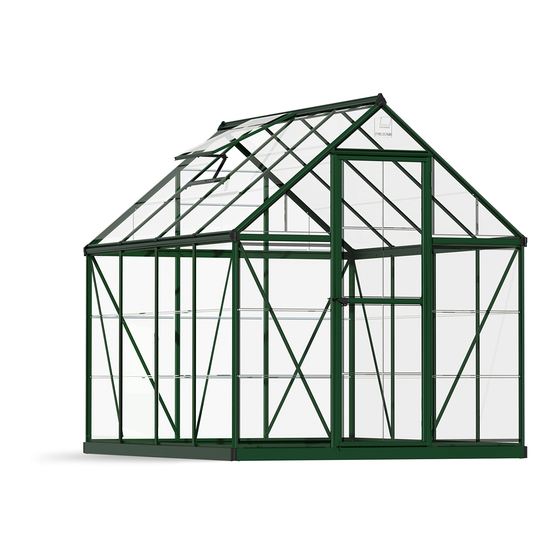

EuroStyle 6'X8'
Greenhouse
255x193x203 cm / 100"X76"X80"
IMP ORT ANT
You must read these instructions carefully before you start to assemble
this greenhouse. Please carry out the steps in the order set out in these
instructions.
Do not tighten the screws of the Greenhouse until completing on the
assembly of the panels.
Keep these instructions in a safe place for future reference.
SAFETY ADVICE
We strongly recommend the use of work gloves during assembly . Do not attempt to
assemble the greenhouse in windy or wet conditions.
Do not touch overhead power cables with the aluminum pro les. Always wear shoes
and safety goggles when working with extruded aluminum. Dispose of all plastic bags
safely - keep them out of reach of small children. The greenhouse must be positioned
and xed on a at level surface. Do not lean against or push the greenhouse during
construction. Keep children away from the assembly area. Do not position your greenhouse
in an area exposed to excessive wind.
Do not attempt to assemble this greenhouse if you are tired, have taken drugs or alcohol
or if you are prone to dizzy spells. If using a step ladder or power tools ensure that you
follow the manufacturers safety advice. Hot items such as recently used grills, blowtorches
etc. must not be stored in the greenhouse. Ensure there are no hidden pipes or cables
in the ground before inserting the pegs.
GENERAL ADVICE
Inventory all parts before beginning the assembly process to ensure that there are no
missing parts. This is a multi-part assembly that typically requires at least 3 hours. To be
conservative, please allow at least 6 hours for assembly process to ensure time for
completion..
Selecting a site - choose a sunny level position away from overhanging trees. If you are
xing your greenhouse directly to a solid concrete foundation use the pre drilled holes
in the metal base supplied. The component parts should be checked and laid out close
at hand. Keep all small parts (screws etc.) in a bowl so they do not get lost.
Keep roof clear of snow and leaves.
CARE & MAINTENACE
When your greenhouse needs to be cleaned, use a mild detergent solution and rinse
with cold clean water. DO NOT use acetone, abrasive cleaners or other special detergents
to clean the clear panels.
Replacement parts - contact Customers service helpline at: 877-627.8476.
For additional information please visit our web site: www.palramapplications.com
TOOLS & EQUIPMENT
- Silicone sealant applicable to panels & Applicator
- Tape measure
- Work gloves
- Plastic or rubber mallet
- Lubricant
- Phillipshead
-- Step ladder
- Drill
- Large hammer
- Scissors
- 2mm (5/64) metal drill bit
If help is required seek professional advice whithin store.
