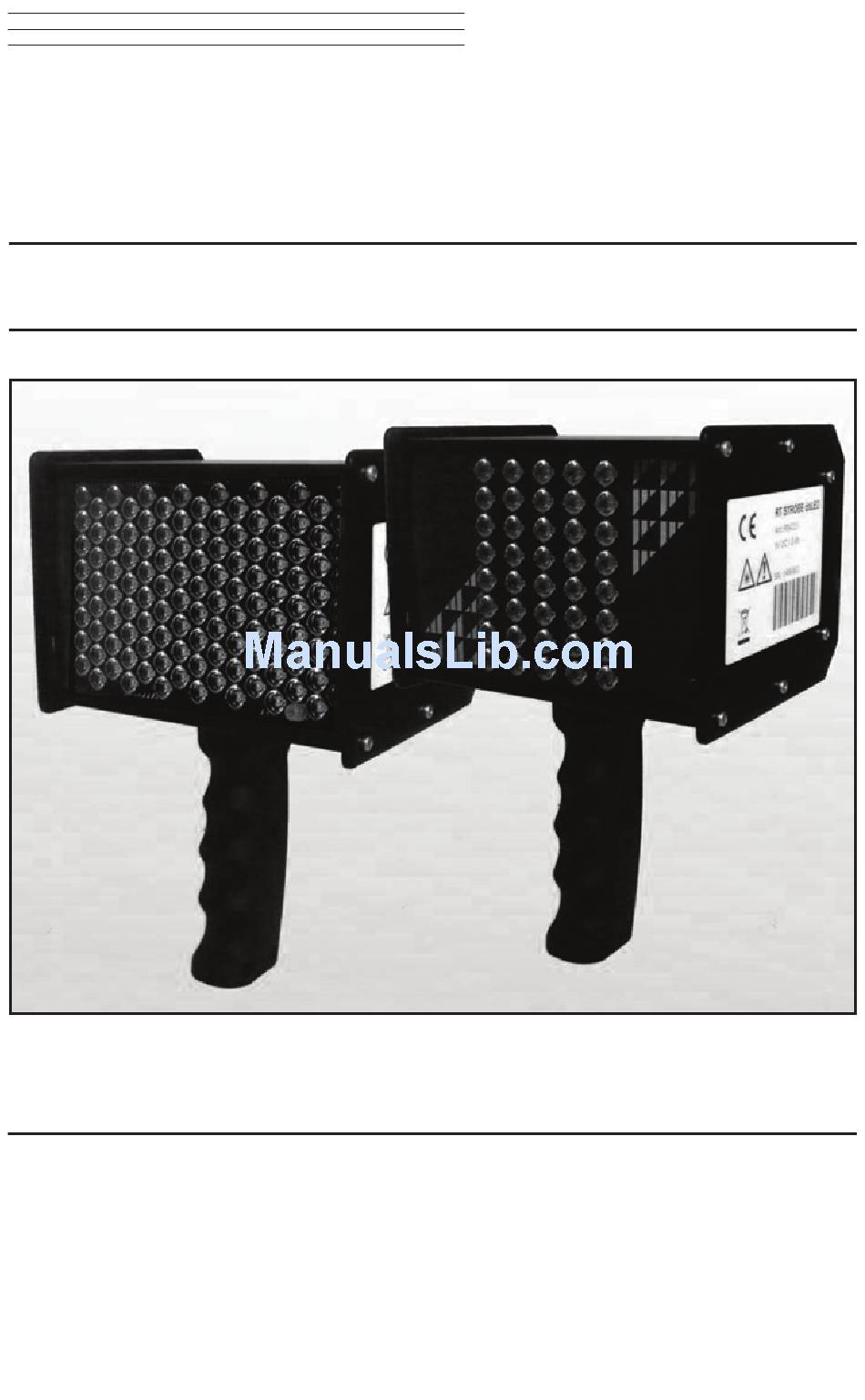

- Page 1 CHECK •LINE ® BY ELECTROMATIC QB-LED & QBS-LED STROBOSCOPES Operating Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ………………………………………………………..… ....02 1.1 Scope of delivery 1.2 Precautions when using Overview ......................... 03 2.1 Connections, controls and settings 2.2 Display Set-Up ......................... 05 3.1 Connections 3.2 Set-up steps 3.3 Connect the trigger Operation ......................... 06 4.1 Controls 4.2 Display 4.3 Standard mode... -
Page 3: Introduction
Wavelength: 650 nm, output: 1 mW. Risk of Injury! Flashing lights can cause retina damage: The stroboscope QB-LED and QBS-LED versions are fitted with 40/118 LEDs respectively. These produce potentially dangerous optical radiation, which can cause retina damage. Do not stare directly at the light and never direct it at people or animals. -
Page 4: Overview
2.0 OVERVIEW Connections, controls and settings (QB-LED QBS-LED) (A) CHARGE = charging socket (B) INPUT = input for external trigger /24 V power supply for sensors (C) Display (D) Rotary/push knob (E) Selector switch: OFF, FREQUENCY, BRIGHT, MENU, LASER* *NOTE: LASER Mode only available on QBS-LED model. -
Page 5: Display
Display Brightness in μs and/or degrees (BRIGHT) Delay in ms and/or degrees (DELAY) Phase shift (PHASE) Unit of frequency in rpm, Hz and/or FPM Value Multiplier (MULT.) Trigger divider (DIV.) Slow motion (SLOW) Trigger signal edge (TRIG.) (10) Internal/external trigger (INT / EXT) (11) Store / read parameters (MEMORY IN / MEMORY OUT) (12) Pro mode (P) (13) Battery status –... -
Page 6: Setup
3.0 SETUP Connectors (see Fig. 1) Marking Term Description CHARGE Charging Socket Device is charged using a charger INPUT Input socket Input for external tripper/24 V power supply Set-up steps Please follow the steps below when setting up the device: 1. -
Page 7: Operation
4.0 OPERATION Note: This device comes in two versions. • QB-LED (40 LEDs, no laser) • QBS-LED (118 LEDs, with laser) Both versions are available in Standard and Pro modes (see section 4.3, Standard mode and section 4.4, Pro mode). -
Page 8: Standard Mode
Standard Mode NOTE: Not all of the setting shown in Fig 2 are available in Standard Mode. Position of the Adjustable Description Selector Switch Parameters — Device is switched off FREQUENCY Frequency selection; FPM: flashes per minute - Turning the knob while pushing it simultaneously, the adjustment increment is effected in steps of 100. - Page 9 Position of the Adjustable Description Display Selector Switch Parameters MENU PHASE deg: Delay setting between the trigger signal 0…359 and flash (in degrees relative to the frequency Phase sift (PHASE in deg) Phase shift setting (in degrees, relative to the frequency) between the trigger signal and flash. This value allows a fixed angle to be set between the trigger signal and flash.
- Page 10 Position of the Adjustable Description Display Selector Switch Parameters (10) MENU INT /EXT Internal /external trigger How to select an internal / external trigger 1. Turn the selector switch (E) to the MENU position. 2. Select the INT / EXT parameter by turning the rotary/push knob (D). 3.
-
Page 11: Pro Mode
Pro Mode Follow the steps below to access the pro mode: 1. Turn the selector switch (E) from OFF to the required position while simultaneously holding the rotary/push knob (D) until the PRO notification appears in the display. 2. When the Pro mode is activated, a P appears in the bottom right area of the display NOTE: If you have selected settings in Pro Mode and then switch the device off, these settings will ONLY be active when the device is switch back on if pro mode is activated. - Page 12 Position of the Adjustable Description Display Selector Switch Parameters MENU rpm / Hz / Unit of frequency selection: - rpm: unit for measuring rotational speed - Hz: flash frequency per second - FPM: flashes per minute Multiplier: MENU MULT: x1, x2, This function is only possible when the x3…/ +1, internal trigger is selected...
- Page 13 Position of the Adjustable Description Display Selector Switch Parameters MENU DIV: Pulse divider, max value 255. 1…2550 This function is only possible when the external trigger is selected Pulse divider (DIV) The pulse divider can be used to set a value x, by which the external trigger signal is then divided. Example: when scanning a cog wheel, an external trigger (e.g.
-
Page 14: Qbs-Led
Stroboscope QBS-LED NOTE: The model QBS-LED features both a higher number of LEDs (118) as well as a Laser for automatic rotational speed measurement and “Auto-Synching” with target. Risk of injury. The model QBS-LED is fitted with a class 2 laser. The laser beam can damage eyes. -
Page 15: Operating Modes
Operating Modes The following operating modes may be displayed: Position of the Adjustable Description Display Selector Switch Parameters Battery Status Fully charged. Battery Status Half charged. Battery Status Low (symbol will flash). LASER / EXT / The trigger frequency is below the SLOW measurement range LASER / EXT /... -
Page 16: Determining An Object's Actual Rotational Speeds
5.0 DETERMINING THE ROTATIONAL SPEED OF OBJECTS The stroboscope can be used as a digital revolution indicator to determine an object’s actual rotational speed and/or the frequency of cyclical movements. The stroboscope does this by visually “freezing” the object’s movement and then taking a reading of the rotational speed or frequency from the LCD display. - Page 17 Which is correct? To determine the fan’s actual rotational speed, one of the ventilator vanes is attached with a marking and the test is repeated. The orientation marking confirms that the images at 3,300, 1,650 and 825 rpm are harmonic multiple images.
-
Page 18: Technical Data And Accessories
6.0 TECHNICAL DATA General Parameters QB-LED Both QBS-LED Number of LEDs Frequency Range 30–300,000 flashed per minute Display LCD, multiline Accuracy ±0.02% (±1 digit/±0.025 µs) Resolution ± 0.1 (30.0 ... 999.9 FPM) ± 1 (1,000 ... 9,999 FPM) ± 10 (10,000 ... 300,000 FPM) External Trigger Input 3 - 30 V / max. -
Page 19: Faactory Reset
7.0 FACTORY RESET To reset the factory settings, press and hold the rotary/push knob (D) for at least 5 seconds –18 –... -
Page 20: Warranty
8.0 WARRANTY ELECTROMATIC Equipment Co., Inc. (ELECTROMATIC) warrants to the original purchaser that this product is of merchantable quality and confirms in kind and quality with the descriptions and specifications thereof. Product failure or malfunction arising out of any defect in workmanship or material in the product existing at the time of delivery thereof which manifests itself within one year from the sale of such product, shall be remedied by repair or replacement of such product, at ELECTROMATIC’s option, except where unauthorized repair, disassembly, tampering, abuse or... - Page 21 NOTES –20 –...
- Page 22 ELECTROMATIC CHECK •LINE ® O . , 600 Oakland Ave., Cedarhurst, NY 11516 – USA INSTRUMENTS TEL: 516-295-4300 • FAX: 516-295-4399...
