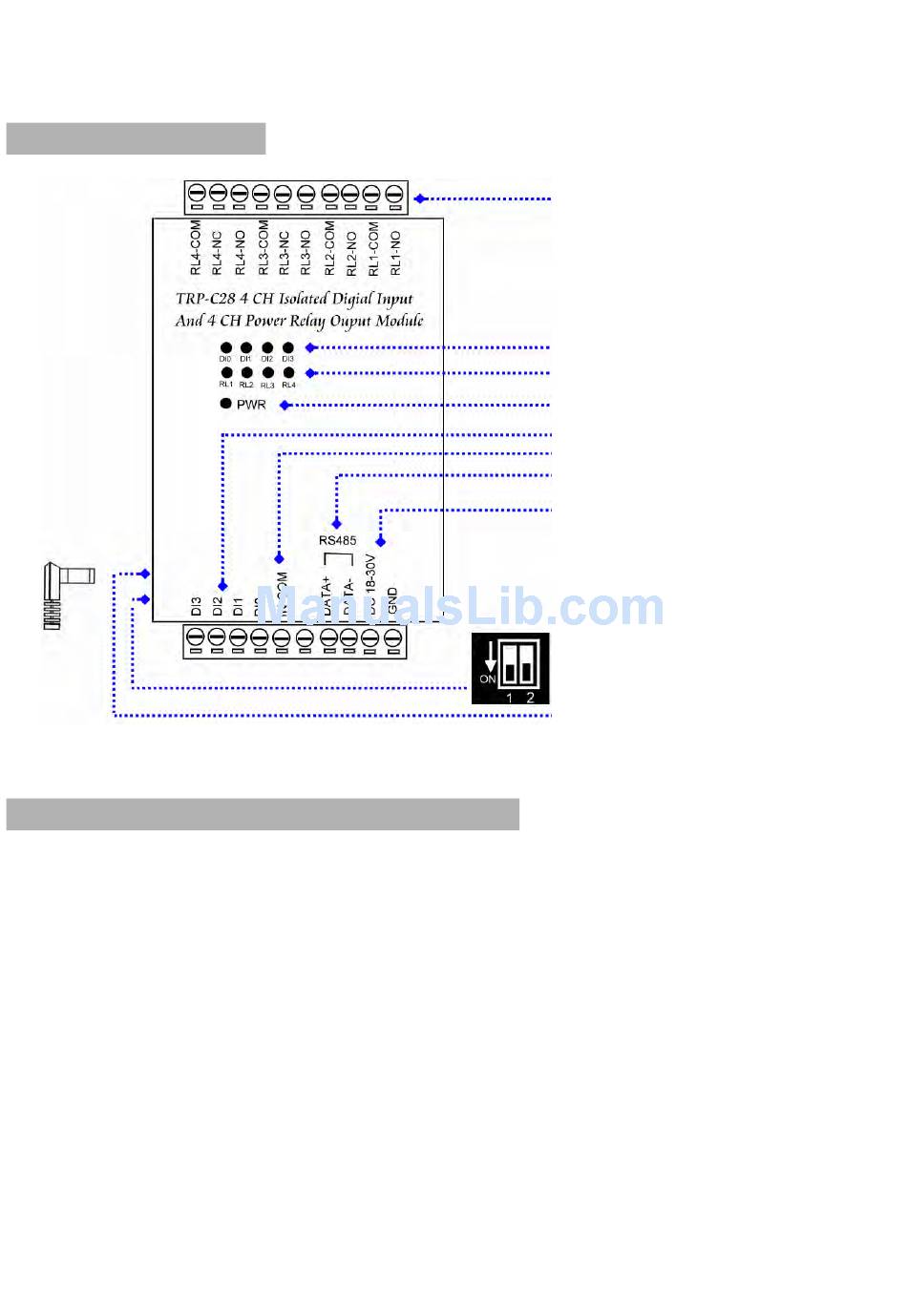

TRP-C28 Panel Layout
DC-jack connector (0.5*2.1 mm plug).
Use in RS485 interface along with bellowing TRP converter family
TRP-C06 :RS232 to RS422/485 optical isolated converter.
TRP-C07 :RS422/485 optical isolated repeater.
TRP-C06E :RS232 to RS422/485 converter.
TRP-C08 :USB to RS232/422/485 optical isolated converter.
TRP-C36 :TCP/IP to RS232/422/485 optical isolated converter.
TRP-C39 :Multi-mode fiber to RS232/422/485 optical isolated converter.
Relay Output Connector
Digital Input LED Indicator
Relay Output LED Indicator
Power or Watchdog/ RS485 flow LED Indicator
Digital Input Connector
External Voltage Input
RS485 Communication
DC Voltage Input From +18V~30V
System Switch Configuration
and hardware test.
External DC-Jack Input
