User Interface

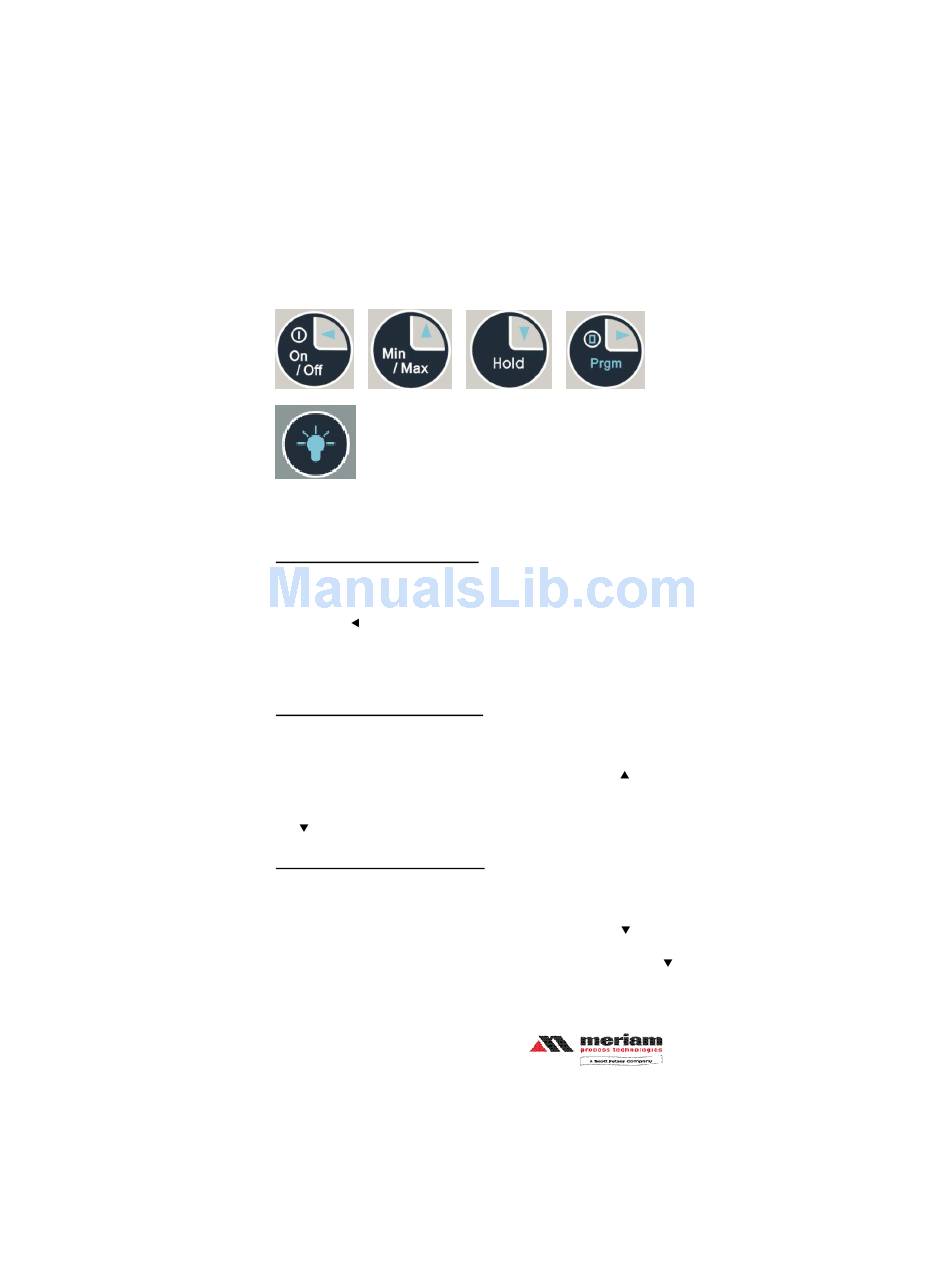

1. Keypad Functions
ON/OFF & BACKSPACE KEY
Turns the manometer on and enters the unit into the Measure
Mode. Pressing the key while in the Measure Mode turns the unit
off. It also serves as a backspace key when editing in the Program
Mode. The
key takes the user out of a programmable register
without changing the previous setting. Pressing this key repeatedly
will return the user to the Measure Mode and then shut off the
manometer.
MIN/MAX & UP ARROW KEY
In the Measure Mode activates the Min/Max function of the
manometer. When activated the minimum value is displayed on the
upper left of the display and the maximum value on the upper right.
This key also deactivates and resets this function. The
used to scroll through the programmable registers when the unit is
in the Program Mode. Once a programmable register is selected
the
key can be used to edit that register.
HOLD & DOWN ARROW KEY
In the Measure Mode toggles on/off the display Hold function.
This freezes the value displayed. If the MIN/MAX function is
activated, those values are also frozen. With HOLD activated, the
letter "H" appears in the lower left of the display. The
used to scroll through programmable registers with the unit in the
Program Mode. Once a programmable register is selected the
key can be used to edit that register.
www.meriam.com
page 3 of 31
Instruction Manual 9R000045-A
APR2007
key is
key is
