Rifton E-Pacer K660 Product Manual

Gait trainer
Hide thumbs Also See for E-Pacer K660:
Table of Contents

Advertisement

Quick Links

Download this manual
E-Pacer
K660 Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-Pacer K660 and is the answer not in the manual?

Questions and answers

Related Manuals for Rifton E-Pacer K660

Summary of Contents for Rifton E-Pacer K660

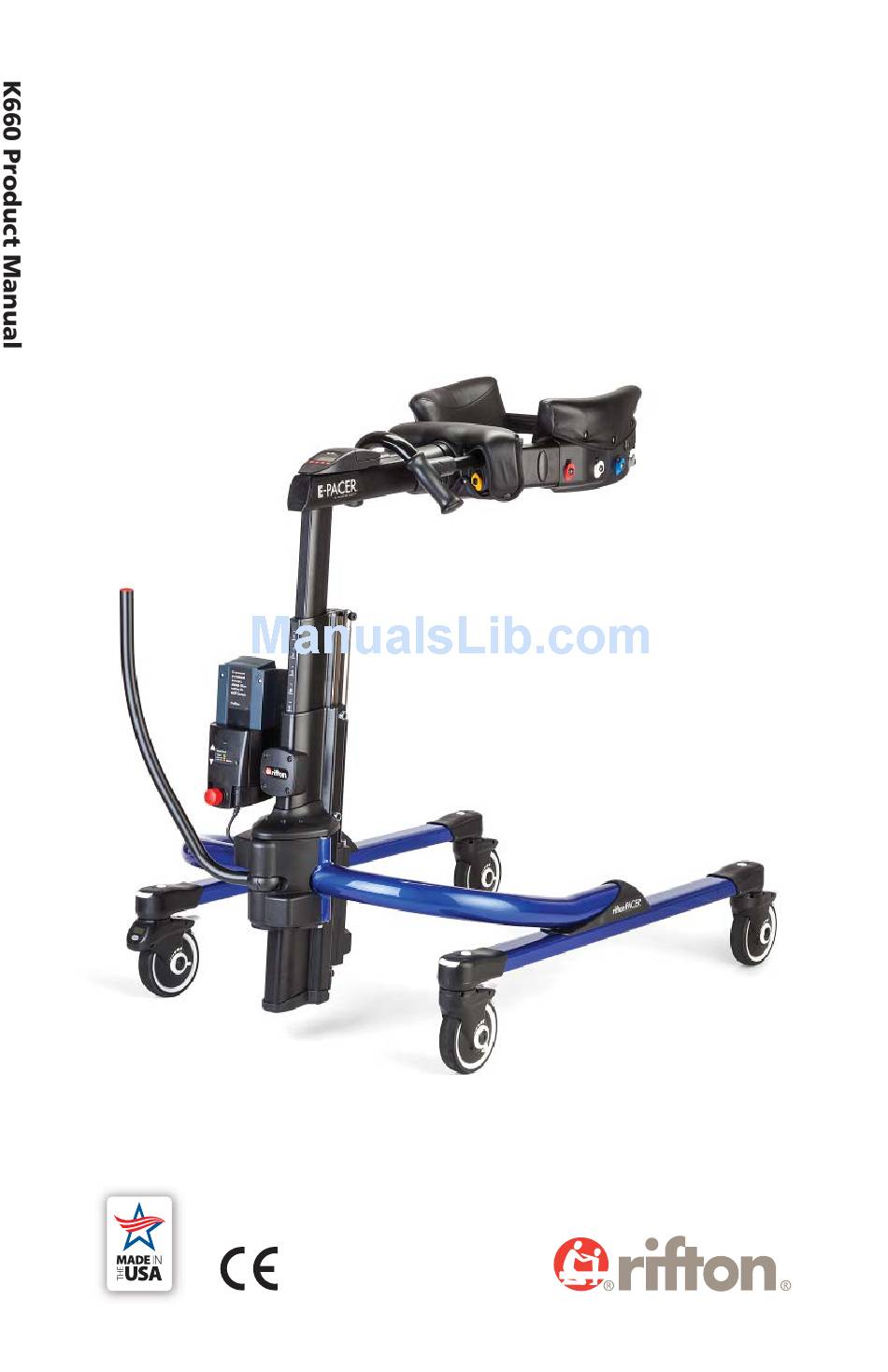

  • Page 1 E-Pacer K660 Product Manual...

  • Page 2: Table Of Contents

    Gait tracker Thigh straps, pelvic support, hip positioner and odometer 17-18 Forearm supports 18-19 Arm platforms Switch pole Operation and transfers 20-22 Battery charger Troubleshooting Technical data Maintenance and cleaning Warranty, materials and user modifi cations © 2017 Rifton Equipment...

  • Page 3: Safety Messages

    WARNING • Thoroughly read and understand the information in this product manual before attempting to use this product. If the procedures and instructions in this product manual are not followed, serious injury or death could occur. • The E-Pacer may not be appropriate for all clients. The client’s therapist or physician should assess the appropriateness and safety of the E-Pacer for each user.

  • Page 4: Key For Users And Important Information

    Use this key to determine which sections of this product manual apply to you. Technical Users For professionals who order and set up Rifton products. Home Users For care-givers who use Rifton products on a regular basis. Maintenance Personnel For anyone who is responsible for service or re-ordering of Rifton products and parts.

  • Page 5: Recommended Use And User And Item Dimensions

    Recommended use The E-Pacer is a Class 1 medical device. It is a mobility and transfer device. As a mobility device it helps a caregiver raise a client to a standing position, and then provides support for standing or ambulation. For transfers it enables a qualifi ed caregiver to lift a client in the seated posture and transfer the client between wheelchairs, chairs, toilets, beds or therapy tables.

  • Page 6: Check Your Order And Basic Item

    Check your order Please check that your E-Pacer has been outfi tted as you ordered it. Every E-Pacer comes with a battery and a battery charger. All accessories are retrofi ttable with the exception of the scale, which must be ordered at the time of purchase.

  • Page 7: Body Support System

    The E-Pacer’s body support system includes the body support pads, patient hand grips, ring clips, and the back belt and buckle (see fi gure 7a). Rifton also offers an alternative back belt with a clip at both ends for easy removal and sanitation (see fi...

  • Page 8: Battery Box

    Battery Box To prevent inadvertent WARNING operation of the up/down switch when the E-Pacer is not in use, press the E-Stop button (A) to disconnect the battery. The battery box houses the microprocessor and rechargeable battery which power and control the E-Pacer’s electric actuator. Up/down arrows (B) on the battery box control the E-Pacer’s vertical movement Figure 9a...
  • Page 9 To prevent damage to the NOTICE battery, charge it when the light turns yellow. The indicator light will extinguish 10 minutes after the last activation of the up/down switch. It will turn on again if the up/down switch is used or if a battery is inserted into the battery box.

  • Page 10: Base Frame Expansion System

    Base frame expansion system To avoid injury, ensure WARNING that all hands and feet are clear of the expansion handle and the base legs before expanding or retracting the base. The base frame expansion system adjusts the width of the base frame from 31”–...

  • Page 11: Casters

    Casters Adjustments (see fi gure 10b) (A) prevents the caster from Swivel lock swiveling. press • To engage the swivel lock: button (A). , press button (B). • To disengage Locking all four casters will keep the client traveling in a straight line. Locking the rear casters (those behind the client) will help stabilize the client, while still allowing for turning.

  • Page 12: Accessories

    Accessories Front handle To prevent pinching or WARNING crushing, ensure that all hands and feet are clear of the vertical lifting column before activating the up/ down switch. The front handle enables a caregiver to maneuver the E-Pacer. It includes the Figure 12a up/down switch (A), located on top of the right hand-grip, which adjusts the height of...

  • Page 13: Scale

    Scale The scale has two purposes: it can be used to measure a client’s weight, and to measure the weight a client is bearing during ambulation. To use the scale, turn on the display and use the lb/kg button to display either pounds or kilograms.

  • Page 14: Scale

    • The scale is accurate to one percent if used correctly. • Rifton recommends that the scale be calibrated by a qualifi ed technician at three to fi ve year intervals, depending on frequency of use. For instructions on service and...

  • Page 15: Gait Tracker

    Gait Tracker The Gait Tracker app allows data from the E-Pacer scale to be displayed on mobile phones and tablets via a BlueTooth connection. The app has two primary functions. 1. It displays the weight measured by the scale, averaged over a 10 second interval for smoothness.
  • Page 16 Thigh straps (see Figure 16a) Thigh straps are used to make seated transfers. Choose either narrow (5”) or wide (7”), depending on the needs of your client. Additional straps can be purchased for individual clients. Figure 16a Pelvic support (see Figure 16b) The pelvic support is used for sit-to-stand transfers and supported ambulation.

  • Page 17: Forearm Supports

    Forearm supports Forearm supports provide positioning support for clients who have low muscle tone. Forearm supports adjust in many directions and angles to accommodate different positioning requirements (see Figure 17a). If forearm supports were purchased initially with the E-Pacer they will be attached Figure 17a and ready for use.

  • Page 18: Arm Platforms

    Adjustments: (see Figure 18a) Height adjustment: Press button (A) and slide the post to the desired height. Loosen knob (B) to: • Slide the arm pad toward or away from the user. • Rotate up or down. • Rotate in or out. Figure 18a •...

  • Page 19: Switch Pole

    3. Spin the ratchet mechanism 180˚ so that the sleeve is in the opposite position. 4. Remount the arm platform pad to the post. Arm strap (C) secures the client’s arm in the arm platform. The arm strap can be removed completely, if desired;...

  • Page 20: Operation And Transfers

    Operation To avoid injury, do the following before and during WARNING every transfer: • Move the origin and the destination of the transfer as close to each other as possible. • Ensure that the body support system is positioned comfortably, correctly and securely, and that the safety buckle is properly engaged.
  • Page 21 Using thigh straps for a seated transfer: 1. Clip one end of each thigh strap onto the yellow clips at the front of the E-Pacer's body support system. 2. With the client sitting up, arms raised slightly, position the body support Figure 21a system pads around the client’s rib cage a few inches below the armpits (see...
  • Page 22 Using pelvic support for sit-to-stand or walking: 1. Position the pelvic support under the client, either by lifting the client using the fi rst four steps on page 21 (see Figure 22a), or by folding the saddle, shifting the client to one side and Figure 22a positioning the saddle under the client one half at a time.

  • Page 23: Battery Charger

    Battery charger To prevent shock or WARNING electrocution, do not charge batteries in a wet area. Installation 1. Remove the battery from the charger to access the mounting bracket. 2. Attach the charger to the wall near an outlet, using two screws (A) (see Figure 23a).

  • Page 24: Troubleshooting

    Troubleshooting Scale display is blank. Lift goes up or down without pressing the switch. (The red E-Stop Make sure four new AA batteries are button will always stop all movement.) inserted correctly. Unplug the front handle or switch pole E-Pacer veers to the side. cord.

  • Page 25: Technical Data

    18 minutes idle. (Replacement batteries available • Turning diameter: 50" (127 cm) from Rifton) • Mass of E-Pacer: 72 lbs (32.5 kg) • Battery charger: Wall-mounted charger, 100 - 240 V AC, max 650 mA.

  • Page 26: Maintenance And Cleaning

    • Immediately remove this product from use when any condition develops that might make operation unsafe. • Do not use Rifton components or products for any purpose other than their intended use. • Replace or repair components or products that are damaged or appear to be unstable.

  • Page 27: Warranty, Materials And User Modifi Cations

    Warranty Statement If a Rifton product breaks or fails in service during the fi rst year, we will replace it free of charge. Materials • Steel hardware items (nuts, bolts, screws, etc.) are typically zinc or nickel plated, or stainless steel.
  • Page 28 Use only replacement parts supplied by Rifton Equipment. We are glad to supply replacement parts. Although Rifton makes every effort to supply correct parts and instructions for repairing or refurbishing your equipment, you are responsible to make sure that the repairs or modifi cations are correctly and safely completed.
