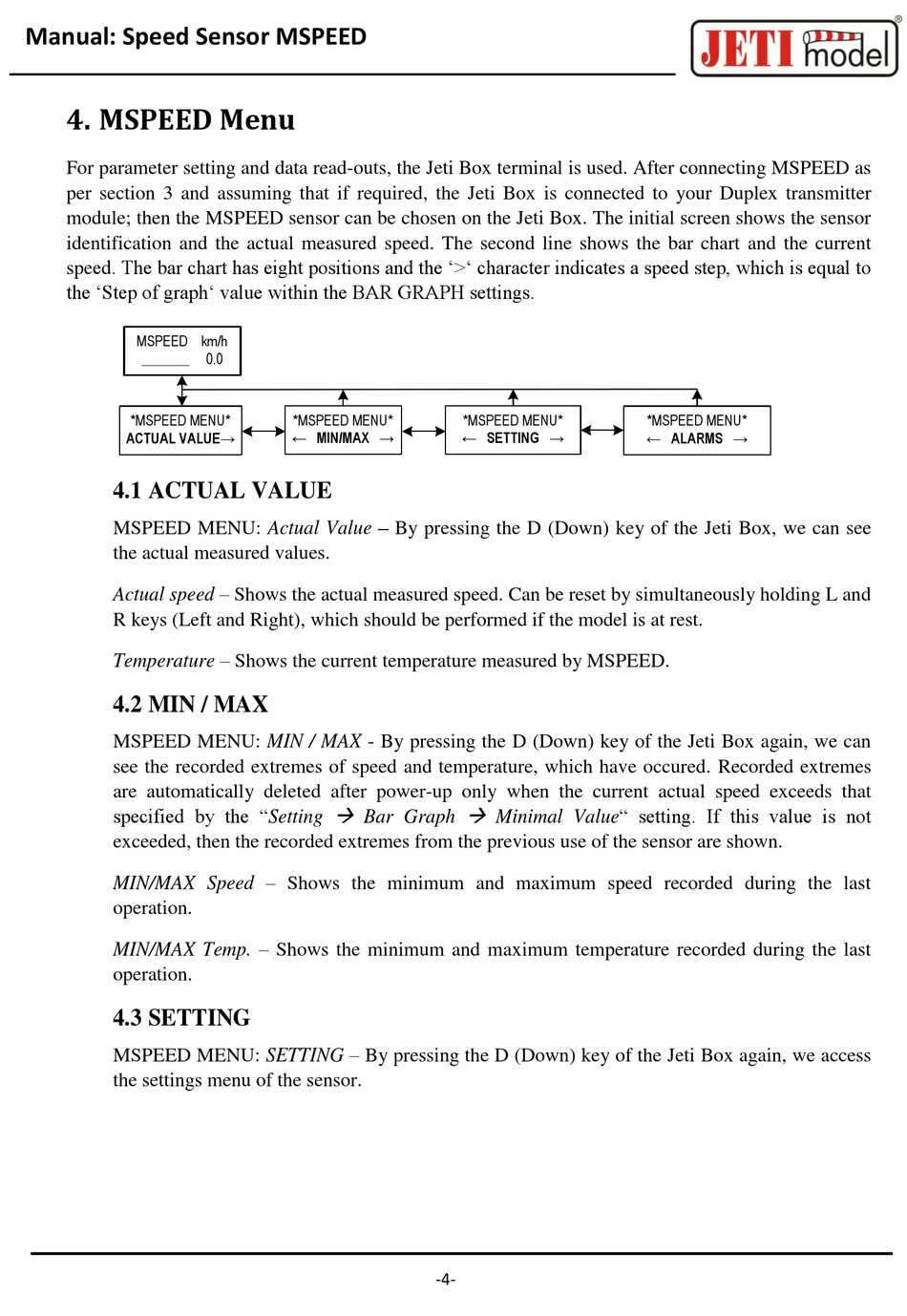

4. MSPEED Menu

For parameter setting and data read-outs, the Jeti Box terminal is used. After connecting MSPEED as
per section 3 and assuming that if required, the Jeti Box is connected to your Duplex transmitter
module; then the MSPEED sensor can be chosen on the Jeti Box. The initial screen shows the sensor
identification and the actual measured speed. The second line shows the bar chart and the current
speed. The bar chart has eight positions and the '>' character indicates a speed step, which is equal to
the 'Step of graph' value within the BAR GRAPH settings.
MSPEED km/h
_______
*MSPEED MENU*
ACTUAL VALUE→

4.1 ACTUAL VALUE

MSPEED MENU: Actual Value – By pressing the D (Down) key of the Jeti Box, we can see
the actual measured values.
Actual speed – Shows the actual measured speed. Can be reset by simultaneously holding L and
R keys (Left and Right), which should be performed if the model is at rest.
Temperature – Shows the current temperature measured by MSPEED.

4.2 MIN / MAX

MSPEED MENU: MIN / MAX - By pressing the D (Down) key of the Jeti Box again, we can
see the recorded extremes of speed and temperature, which have occured. Recorded extremes
are automatically deleted after power-up only when the current actual speed exceeds that
specified by the "Setting
exceeded, then the recorded extremes from the previous use of the sensor are shown.
MIN/MAX Speed – Shows the minimum and maximum speed recorded during the last
operation.
MIN/MAX Temp. – Shows the minimum and maximum temperature recorded during the last
operation.

4.3 SETTING

MSPEED MENU: SETTING – By pressing the D (Down) key of the Jeti Box again, we access
the settings menu of the sensor.
0.0
*MSPEED MENU*
← MIN/MAX →

Bar Graph
*MSPEED MENU*
← SETTING →

Minimal Value" setting. If this value is not
-4-
*MSPEED MENU*
← ALARMS →
