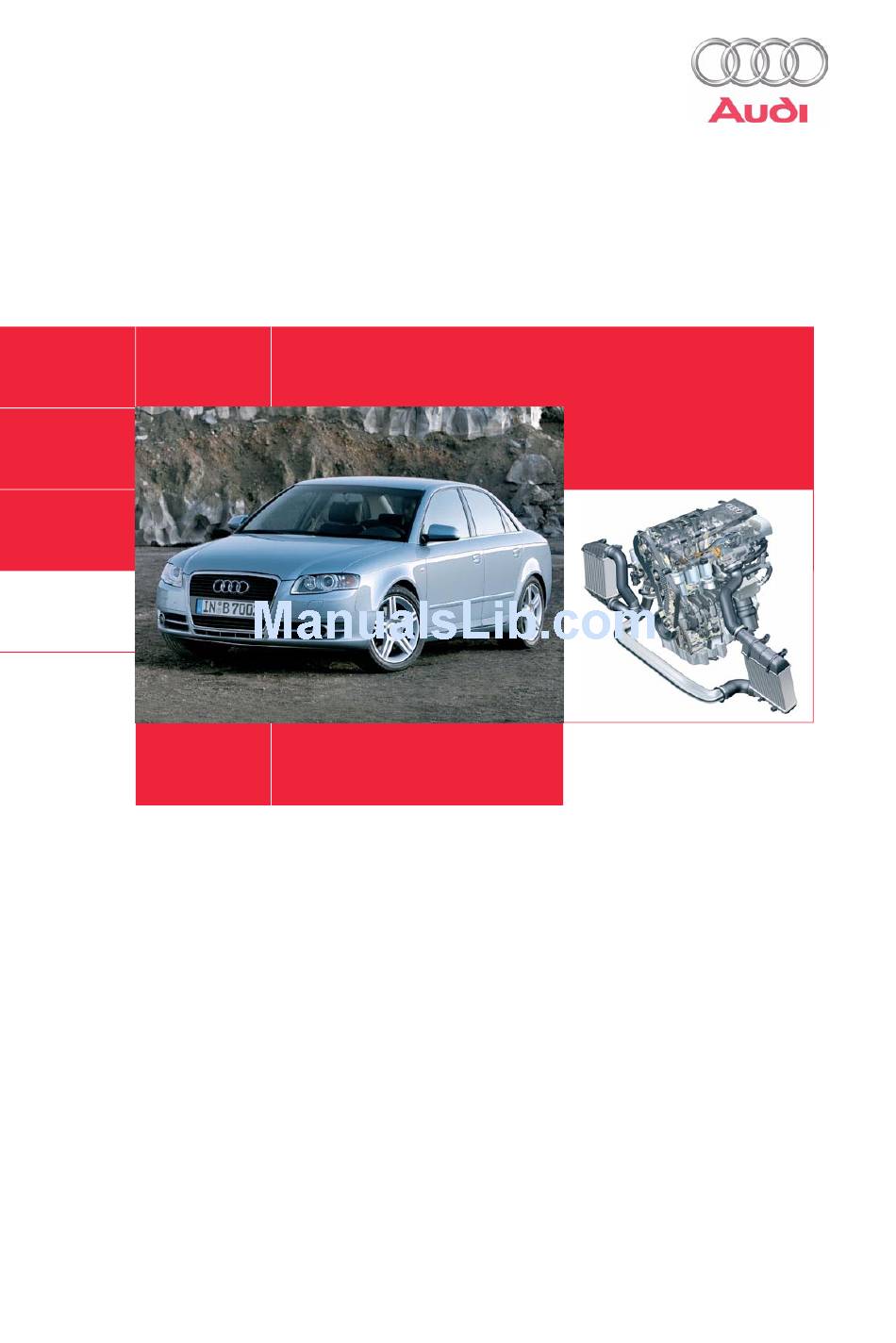

  • Page 1 Service Training The new Audi A4 ´05 Self-Study Programme 343...
  • Page 2 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability Driving pleasure, superior technology, exciting with respect to the correctness of information in this document.

  • Page 3: Table Of Contents

    Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.

  • Page 4: Introduction

    Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.
  • Page 5 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.

  • Page 6: The Body

    Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.
  • Page 7 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.

  • Page 8: Occupant Protection

    The safety system in the Audi A4 ´05 is based on the systems in the Audi A3 Sportback and Audi A6 ‘05. The complete system, as well as the adopted components, were adapted to suit the Audi A4 ’05.

  • Page 9: Permitted Unless Authorised By Audi Ag. Audi Ag Does Not Guarantee Or Accept Any Liability

    The safety system in the Audi A4 ´05 consists of the following components and functions: – Airbag control unit – Driver and front passenger airbags, two-stage – Front side airbags – Sideguards (head airbags) – Side impact detection sensors on the C-pillar –...

  • Page 10: Diagnosis

    Diagnosis K-wire switch VAS 6017 B Like in the Audi A4 ´01, K-wire switch is also required in the Audi A4 ´05 for communication between the individual vehicle systems and the VAS testers. Since the new control units are diagnosable via CAN only, the new K-wire switch VAS 6017 B must be used.

  • Page 11: Permitted Unless Authorised By Audi Ag. Audi Ag Does Not Guarantee Or Accept Any Liability

    Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.

  • Page 12: The Engine

    Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.
  • Page 13 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.
  • Page 14 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.
  • Page 15 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.
  • Page 16 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.
  • Page 17 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.

  • Page 18: The Chassis

    The chassis General Three chassis variants are available for the Audi A4 `05. In the case of the sports suspension, ride height has been lowered by 20mm compared to the standard suspension system. For the heavy-duty suspension, ride height was raised by 13 mm. Both suspensions use different tuning parts (springs, shock absorbers, anti-roll bars).

  • Page 19: Rear Suspension

    Rear suspension The rear suspension is an advancement on the trapezoidal-link suspension familiar from the Audi A4 `04. In particular the bearing set-ups have been modified. Several bearing elements from the Audi A6 `04 are used. Wheel carrier Subframe Damper bearing Upper track control Protected by copyright.
  • Page 20 2.0-litre TFSI vented FNRG-60 16" solid CII-41 16" permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG. 4.2-litre V8 345x30 ContiTeves...

  • Page 21: Steering System

    Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.

  • Page 22: Wheels And Tyres

    Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.

  • Page 23: Tyre Pressure Monitoring System

    Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.

  • Page 24: The Heating / Air Conditioning System

    343_030 Adaption The so-called physiological adaption of the air conditioning system in the new Audi A4 ‘05 is performed using the additional adaption channels. Incidentally, ' physiology' is a medical term describing how stimuli are perceived by the cardiovascular system and how humans feel.
  • Page 25 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability "0" After terminal 15 OFF, the auxiliary heating / auxiliary ventilation function runs until the timer expires with respect to the correctness of information in this document.

  • Page 26: The Convenience Electronics

    Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.
  • Page 27 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not G419 ESP sensor unit permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability J104 ABS with EDL control unit with respect to the correctness of information in this document.
  • Page 28 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability with respect to the correctness of information in this document. Copyright by AUDI AG.
  • Page 29 Engine-specific differences Depending on what engine is fitted in the vehicle, there are differences between detail functions in the dash panel insert. A distinction is made between engines previously available in the Audi A4 ‘01 and engines introduced since the Audi A3 ‘04 or the Audi A6 ‘05.
  • Page 30 Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not The safety central locking system offers the permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability possibility to unlock only the driver's door and the with respect to the correctness of information in this document.
  • Page 31 Self-study programmes on the Audi A4 ‘05 SSP 161 The Audi A8 – The suspension Order number: 440.2809.79.20 343_041 SSP 254 Audi A4 ‘01 - Technology SSP 290 Audi A3 ‘04 – Introduction – The dash panel insert – The body –...
