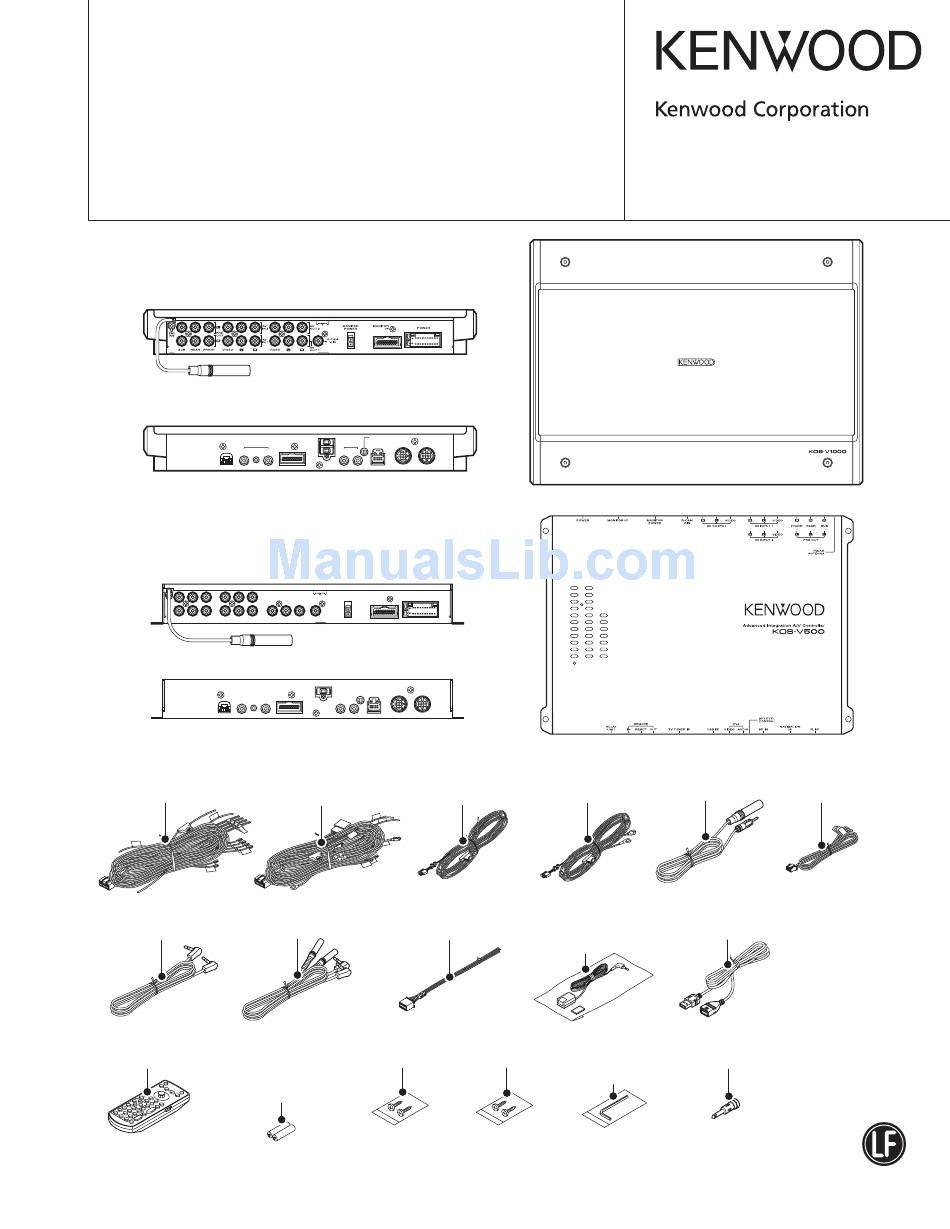

Cord with plug Connecting cord assy Remote control Cord with plug sensor assy (E30-6697-05) (E30-6698-05) (E30-6145-05) (E30-6696-05) (T95-0273-05) (3.5m) (6m) (190mm) x2 (KOS-V1000) (6m) (3.5m) Remote controller assy Screw set Screw set Accessories Antenna adaptor(E type) (A70-2082-15) (N99-1782-05) (N99-1782-05) (KOS-V1000) (T90-0552-05)
Page 2
KOS-V1000/V500 ● The IC106 in the DIGITAL I/O UNIT (X88-2020-10/13) is not a replaceable component. In case of defective of this IC, replace the entire unit (X88-2020-10/13). ● TEST MODE are the same as KVT-719DVD. Please refer to the service manual (KVT-719DVD: B53-0507-00).
Page 3
KOS-V1000/V500 BLOCK DIAGRAM POWER SUPPLY (X14-982) (X88-202) SUB PROCESSOR BU:9.5~16V 5V REG. AUDIO MUTE CIRCUIT 3.3V 3.3V REG. MAIN PROCESSOR 3.3V SRAM 14.4V POWER AMP RELAY CONTROLLER LX BUS TV TUNER BOX Q518 E-VOL 8V REG. ISOLATION AMP AUDIO SELECTOR...
Page 4
IC201 COMP SELECTOR LEVEL SHIFT J700 J951 AV IN-1 IC705 MUTE AV IN-2 AV OUT-1 VIDEO AMP iPod IC300 KOS-V1000 ONLY IC951 SYSTEM MICROCOMPUTER J401 IC402 MUTE AV OUT-1 VIDEO AMP iPod VOUTSEL4 IC603 SERIAL/PARALLEL COMPOSITE VIDEO LINE CONVERTER RGB VIDEO LINE...
Page 5
KOS-V1000/V500 COMPONENTS DESCRIPTION ● VIDEO CONTROL UNIT (X14-982x-xx) Ref No. Function Description Power Management Reference Voltage Regulator (BU5V) Power Management Three terminal Regulater (BU3.3V) Three Outputs DC/DC Converter from a 3.3V or 5V Supply for designed use in TFT-LCD Power Management panels (+11V,-11V,12.5V)
Page 6
KOS-V1000/V500 COMPONENTS DESCRIPTION Ref No. Function Description IC603 Sirial/Parallel convertor 12bit Serial IN Parallel OUT Driver SUB out audio: select from TV, AVIN2, iPod or AVIN1 IC604,605 Differential 4ch Multiplexer MAIN1 out audio: select from TV, AVIN2, iPodUSB, or AVIN1...
Page 7
KOS-V1000/V500 COMPONENTS DESCRIPTION Ref No. Function Description Q102,103 High Speed Power Switch Power MOS FET with Schottky Barrier Diode (SW3.3V, SW5V) Q104 Control Switch Transisitor for POWER_START control of DC/DC CONV Q200 Control Switch Transisitor for NTSC/PAL select cntrol Q201...
Page 8
KOS-V1000/V500 COMPONENTS DESCRIPTION Ref No. Function Description Q606 Mute Switch Transisitor for REARR of PREOUT_MUTE circuit Q607 Mute Switch Transisitor for SWL of PREOUT_MUTE circuit Q608 Mute Driver Transisitor for PREOUT_MUTE control circuit, SWL/R Q609 Mute Switch Transisitor for SWR of PREOUT_MUTE circuit...
Page 9
KOS-V1000/V500 MICROCOMPUTER’S TERMINAL DESCRIPTION ● System µ-com: 703261YGC315A (X14-982: IC303) Pin No. Pin Name Application Note AVREF0 Power supply terminal AVSS V_MUTE Mute signal of composite video signal for monitor (Not used) AVREF Reference voltage input (Not used) CIR_BU_DET Backup detection signal for X88...
Page 10
KOS-V1000/V500 MICROCOMPUTER’S TERMINAL DESCRIPTION Pin No. Pin Name Application Note (Not used) MON_SYS_ON Power ON/OFF control for monitor µ-com MON_S_DATA DATA signal to monitor µ-com MON_M_DATA Communication with monitor µ-com MON_RESET Monitor µ-com reset POWER_START DC/DC converter IC ON/OFF control...
Page 11
KOS-V1000/V500 MICROCOMPUTER’S TERMINAL DESCRIPTION Pin No. Pin Name Application Note VIN_SW5 Composite video signal switching control Mute control of input unit in sync separation IC for composite COMP_MUTE video signal Mute control of input unit in Chroma γ IC for RGB video signal...
Page 12
KOS-V1000/V500 MICROCOMPUTER’S TERMINAL DESCRIPTION SW Logic ● To MONITOR(OP_MONITOR or OEM_MONITOR) γ _VIN γ _SYNC COMP Name of control line RGB_SW3 VIN_SW4 VIN_SW5 OEM_SW _SW2 _SW2 _MUTE _MUTE Terminal number Full_GRAPHIC iPod_VIDEO AVIN/VIN TV (Other than SECAM) TV (SECAM) MONITOR...
Page 13
KOS-V1000/V500 MICROCOMPUTER’S TERMINAL DESCRIPTION ● Audio µ-com: 703030BYGCJ30 (X14-982: IC902) Pin No. Pin Name Application Note TV_JUDGE TV-BOX new/old detection TUN_SCL F/E I2C clock output terminal NAVI_RX Navi control data input NAVI_TX Navi control data output TV_MC_REQ Communication request to TV_COM...
Page 14
ON/OFF of external equipment relay control RELAY_SW2 ON/OFF of external equipment relay control RELAY_SW3 ON/OFF of external equipment relay control Used only in KOS-V1000. RELAY_SW4 ON/OFF of external equipment relay control Used only in KOS-V1000. RELAY_DET1 Detection of external equipment relay control...
Page 15
TUN_IFC F/E IFC OUT input terminal TUN_SMET S meter input R_NOISE FM noise detection terminal RIP_MUTE Power IC inside Used only in KOS-V1000. BU_DET BU reduced voltage detection TV_SC_REQ Communication request from TV_COM SYS_ON SYS_COM communication control input R_CLK RDS decoder CLK input terminal...
Page 16
KOS-V1000/V500 ADJUSTMENT ● SYNC Timing adjustment ● COLOR adjustment Use the arbitrary monitor. (When using the arbitrary monitor, • Conditions use the “Parking OFF” since the screen is shown dark when Video source : NTSC composite video signal (AV-INI) the source is the composite source.)
Page 17
KOS-V1000/V500 ADJUSTMENT COLOR : 60 • Measurement equipment and etc. Video signal generator KOS-L702 monitor Horizontal position default value for both of internal and external monitors (Reference only) Graphic VIDEO (NTSC) NAVI VIDEO (PAL) OSD default value When COLOR register is set to 60 ●...
Page 18
KOS-V1000/V500 PC BOARD (COMPONENT SIDE VIEW) VIDEO CONTROL UNIT X14-982x-xx (J76-0395-11) J803 J805 IC402 J401 R872 R410 R897 R898 13 11 7 IC802 R416 D835 R833 R409 R831 D834 R408 R401 IC401 D808 D807 D806 D805 IC400 10 6 D820...
Page 33
• DC voltages are as measured with a high impedance volt me ter. Val ues may vary J804 KOS-V1000/V500 (1/2) slight ly due to vari a tions between in di vid u al in stru ments or/and units. NAVIGATION...
Page 35
KOS-V1000/V500 (0-10), (0-12) (0-13), (0-15) ONLY (0-10), (0-13) ONLY (0-12), (0-15) ONLY (X88-2020-1x) P304 P305 P306 P307 P308 P310 P309 (X88-2020-1x) UNIT MODEL NAME CN101 CN327 CN328 IC211 J100 J101 KOS-V500 0-10 DW128F70NF5X2 DGND KVT-719DVD KVT-729DVD/Y 0-11 DW128F70NF9W7 KVT-739DVD USB SHELD GND DDX7019 5.0V...
Page 36
KOS-V1000/V500 EXCLUSIVE OR GATE SW3.3V 0-3.3V IC104 CN210 0-3.3V 16 17 20 21 R493 3.3V 0-3.3V IC108 3.3V C149 0-3.3V INVERTER DGND DGND SPCLK CP160 22 EP R5 E R5 EP R4 E R4 SW3.3V CP106 22 EP R3 E R3...
Page 37
KOS-V1000/V500 1.8V SW3.3V 1.8V REG. IC105 C105 R109 MEDIA PROCESSOR IC106 (BOTTOM VIEW) C106 3.3V TP101 0-3.3V 0-3.3V 0-3.3V E G2 E B4 E B1 0-3.3V 0-3.3V 0-3.3V 0-3.3V E G1 E B2 CP128 10K CP147 10K 0-3.3V E B0 0-3.3V...
Page 38
• D C vo l t a g e s a r e a s TP120 measured with a high impedance volt me ter. 1.8V SW3.3V Val ues may vary slight ly due to vari a tions be- tween in di vid u al in stru - ments or/and units. KOS-V1000/V500 (2/2) X88-2020-1x (5/5)
Page 40
KOS-V1000/V500 EXPLODED VIEW (KOS-V500) (X88-) J500 J200 J100 W600 J702 J700 J951 J600 J501 VR800 J800 (X14-) J801 J803 J401 J802 J400 J805 J804 SIZE AAA BATTERY (NOT SUPPLIED) M3x5 N09-6425-15 2.6x6 N86-2606-48 N86-3006-43 N89-3008-43 M3x20 N35-3020-48 N83-3008-41 N89-3008-43 Depends on the models. Refer to the parts list.
Page 41
F52-0004-05 FUSE (MINI BLADE TYPE) 5A C103 CK73GB1H102K CHIP C 1000PF E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 42
25WV C220 CD04BJ1E101M ELECTRO 100UF 25WV C313 CK73GB1H104K CHIP C 0.10UF E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 43
K1M2E2 C537 CC73GCH1H220J CHIP C 22PF C665 CD04BJ1H100M ELECTRO 10UF 50WV E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 44
C760,761 CD04AS1H4R7M ELECTRO 4.7UF 50WV C953 CK73EB1E105K CHIP C 1.0UF K1M2E2 E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 45
D 1/10W L33-2283-05 CHOKE COIL (140UH) RK73GB2A473J CHIP R J 1/10W E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 46
CHIP R J 1/10W R310 RK73GB2A103J CHIP R J 1/10W KK1 E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 47
CHIP R 150K J 1/4W R558 RK73GB2A124J CHIP R 120K J 1/10W E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 48
RK73GB2A103J CHIP R J 1/10W R718-721 RK73GB2A103J CHIP R J 1/10W E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 49
CHIP R 1.0K J 1/4W R884,885 RK73GB2A103J CHIP R J 1/10W KM1E1 E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 50
DAP202U DIODE R986 RK73GB2A153J CHIP R J 1/10W D616,617 AVRM1608180M6A VARISTOR E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 51
ANALOGUE IC 2SB1565 (E,F) TRANSISTOR IC212 BA7649F ANALOGUE IC 2SC4081 TRANSISTOR E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 52
DIGITAL TRANSISTOR C301 CC73HCH1H101J CHIP C 100PF Q903 DTC114TUA DIGITAL TRANSISTOR E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 53
L41-1005-33 SMALL FIXED INDUCTOR (10U) R150 RK73HB1J220J CHIP R J 1/16W E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 54
J 1/16W R369 RK73HB1J101J CHIP R J 1/16W IC303 TC7SET08FU-F MOS-IC E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 55
MOS-IC IC332 NJM2864F05-ZB ANALOGUE IC IC335 TC7WH14FU-F MOS-IC Q302-304 2SA1576A TRANSISTOR E1 : KOS-V500 E2 : KOS-V1000 (Europe) K : KOS-V500 K1 : KOS-V1000 (North America) Indicates safety critical com po nents. M1 : KOS-V500 M2 : KOS-V1000 (Other Areas)
Page 56
KOS-V1000/V500 PARTS LIST CAPACITORS 2 2 0 • Capacitor value CC45 Color* 010 = 1pF 0 = 22pF 1 = Type ... ceramic, electrolytic, etc. 4 = Voltage rating 100 = 10pF 2 = Shape ... round, square, etc. 5 = Value...
Page 57
KOS-V1000/V500 SPECIFICATIONS Video section KOS-V1000 Color system of external video input USB interface section E,M ..............NTSC/ PAL USB Standard ..........USB 1.1/ 2.0 K ................NTSC File System ............FAT 16/ 32 External video input level (RCA jacks) ....1Vp-p/75Ω Maximum Supply Current ........500mA External audio max input level (RCA jacks) ....2V/25kΩ...
Page 58
E ..............153~281kHz M ....153~281kHz (9kHz), 530~1700kHz (10kHz) Usable Sensitivity (S/N : 20dB) ......... 45µV KENWOOD follows a policy of continuous advancements MW tuner section : E,M type in development. For this reason specifications may be Frequency Range ....531~1611kHz (9kHz space) changed without notice.
