Principle behind The End Millennium.

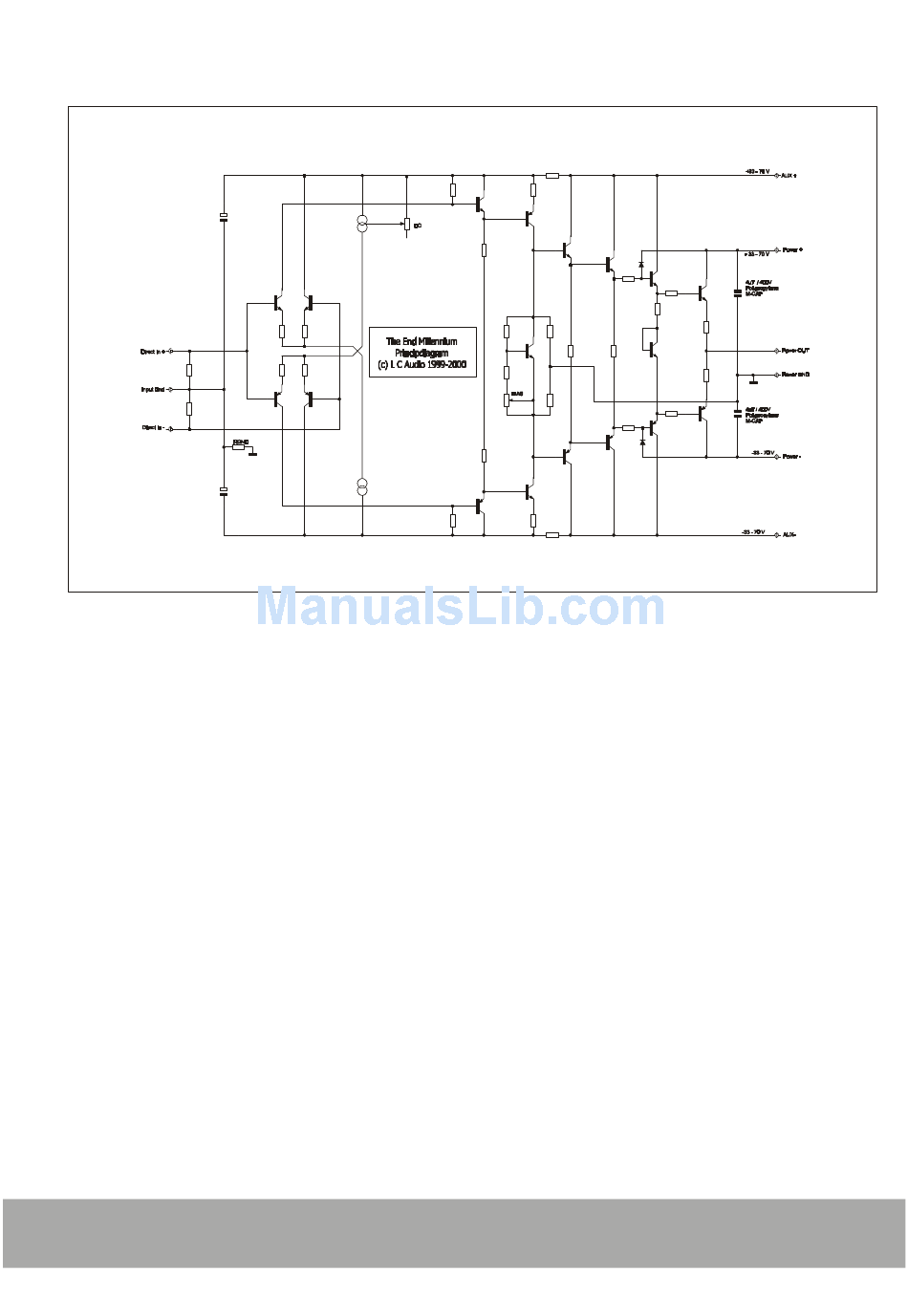

The principle schematic shows how simple the fundamental circuit of Millennium really is. There
are no feedback loops (100% non-feedback), there are no capacitors or other sound depriving
components near the signal path. The frequency responce is linear from DC to extreme hights:
500.000 Hz. This is probably the fastest amplifier You ever heard! Any part of the music from the
deepest bass to the teeniest transient is reproduced with ease by the Millennium!
The Millennium module also contains extra functions such as DC servo and an effective short
circuit protection. The protection will monitor if any overload is evident, and then shut down for a
couple of seconds. No current limiters or signal limiters are used at all. Should an overload occur,
the anp will automatically shut down, and wait for things to normalize again. Then it will turn on
and play normally. This system is so effective, that short circuit is allowed at full power for days!
Owing to the new amplifier topology, which in several aspects is path breaking in modern audio
technology, it has been possible to make available an amplifier with a well controlled sound
picture, a liquid flowing soundstage and extreme precision, at a very affordable price.
The low price is primarily possible because You do the assembly work Yourself.
(Hand built ready versions are available at a higher price).
The four stage output power tunnel lets the speaker membranes draw all the current required,
directly from the power reservoir. Not only to start the motion, but also to stop at the right
microsecond.
