Building Instruction.
Assembling the Millennium is easy and consumes little time.

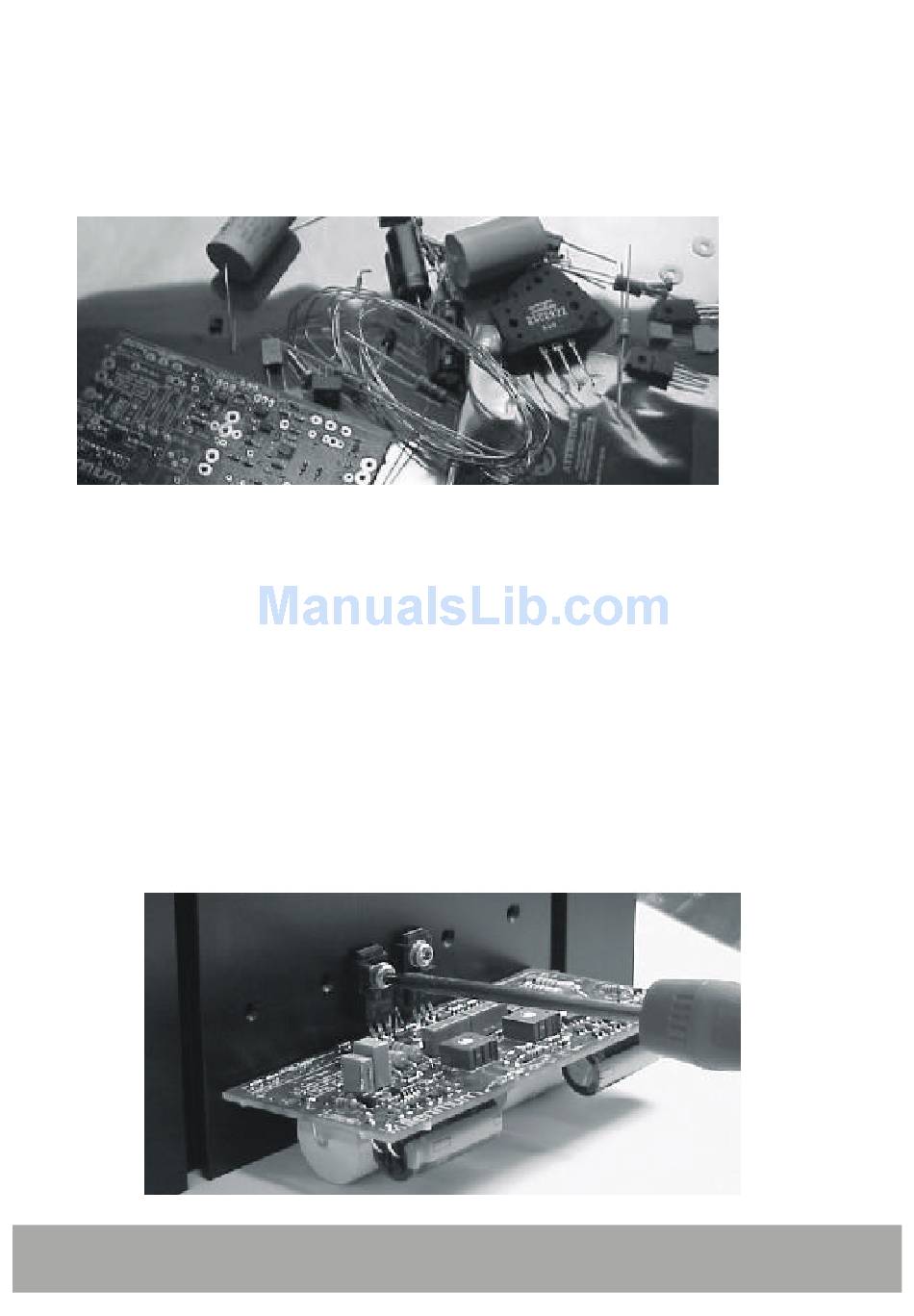

Start by pouring all the components in the package out on Your table.
Get Your Soldering iron heated.
Start by mounting the lowprofile components, like resistors and trimmers. Follow the
printed values on the PCB itself, and compare with the color codes printed on the
previous page. If You are sure everything is mounted correctly, solder it down.
After this fit the capacitors, first the smaller ones and then the larger ones. Solder.
The two 470uF cans go on the backside, remember to polarize them, so the minus
lines printed on them are both clostes to the nearest edge of the PCB.
Lay them down on the PCB (backside) before cutting/soldering.
Now mount the T9 and the drivers, (careful they fit in each ones separate side.) so
high up as the pin lengths allow for. They should be nicely aligned in a right angle
compared to the PCB, now solder them.
After this screw the drivers on the heatsink using the shorter 3mm. screws and the
small washers. No insulation or grease is called for! They should now align to the
heatsink with no airgap. The picture shows that the 4u7 caps are also mounted, but it
is a bit easier to wait with these a few minutes.
The End Millennium
12
L C Audio Technology
