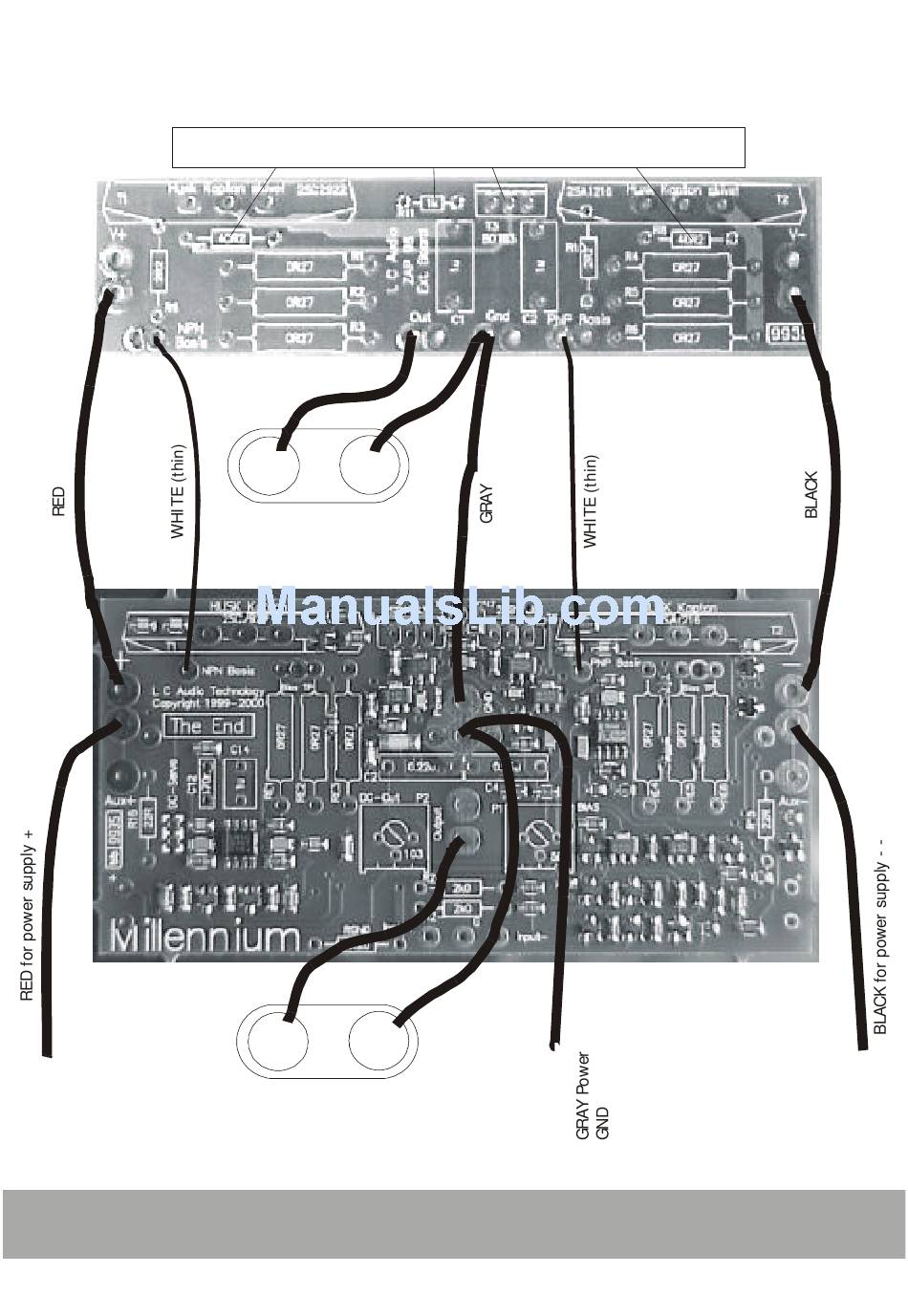

Connecting the Ext. Boards to the Main Board.
Also connect the
AUX supplies, even
though not shown on
this drawing.
The End Millennium
Note, the two 40R2, one 1k resistors and BDT63 should NOT be mounted!
-
+
Separate Bass Outlet
Remember Zobel network.
+
Separate Mid/Treble Outlet
Remember Zobel network.
-
16
L C Audio Technology
One or more ext. boards.
