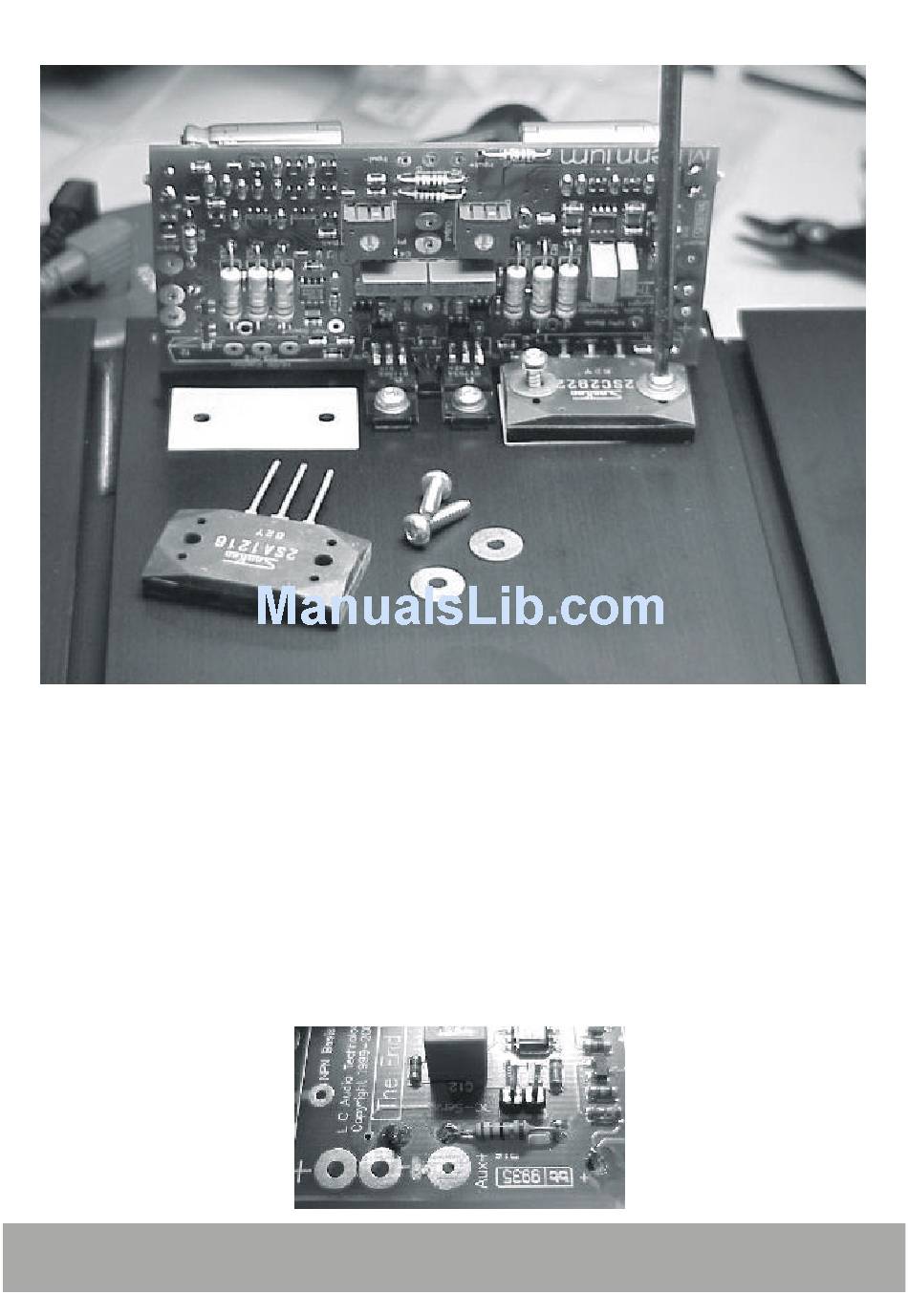

Lay the heatsink down and place the (orange) Kapton sheets over each pair of mounting holes for
the output devices. No grease is called for!
Fit each Sanken output transistor in the CORRECT side of the pcb, the metal side facing the
heatsink. Careful there may be no impurities captured under the powertransistors before
fastening them to the heatsink. Use the bigger washers and screws. Tighten as much as possible
without breaking the screws!
Then solder to the PCB, and crop the pins.
Now mount the 4u7 caps on the backside, from main+ to gnd, and from main- to gnd.
Connect input and output terminals as shown on the following pages.
Important!
If You use the Super Powersupply with separate transformer for the input- and driver stages
(recommended) You are required to cut the thin PCB tracks between + and AUX+, and also
between - and AUX -
