02/03 Rev. 2.17-01
Technical Specifications.................................2
Device types, use .......................................2
Dimensions.................................................2
Performance data .......................................3
Label material specifications ......................6
Ribbon specifications..................................6
Operation features......................................6
USER + SERVICE MANUAL
-
Wildcats (plus)
Appendix ........................................................ 8
Index .............................................................. 9
-
S 45/65/95/105
Connections, device data ........................... 7
Test certificates .......................................... 7
CE Conformity............................................ 7
Through-run diagram ................................. 8
Specifications, page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avery Dennison TTX 450

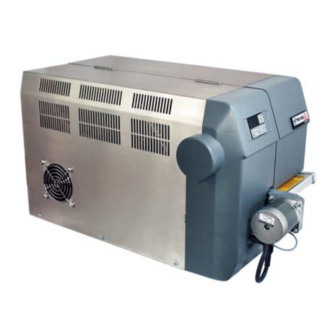

Summary of Contents for Avery Dennison TTX 450
-
Page 1: Table Of Contents
02/03 Rev. 2.17-01 USER + SERVICE MANUAL Specifications, page 1 – – TTX x50/67x Wildcats (plus) S 45/65/95/105 Specifications TTX / Wildcats Technical Specifications.........2 Connections, device data ......7 Device types, use ........2 Test certificates .......... 7 Dimensions..........2 CE Conformity..........7 Performance data ........3 Appendix ............ -
Page 2: 02/03 Rev
– TTX x50/67x Wildcats (plus) S 45/65/95/105 Technical Specifications Device types, use TTX 450/674 Label printing using thermal or thermal transfer printing process, Puma/Puma plus print width up to 106.6 mm (4 inch) S 45 TTX 650/675 Label printing using thermal or thermal transfer printing process, Lion/Lion plus print width up to 127.9 mm (5 inch) -
Page 3: Performance Data
"Near Edge Type" type printhead, high-definition, fast, with integrated temperature control Resolution 12 dots/mm (300 dpi) TTX 450/S45/Puma 100 to 300 mm/s (4 to 12 “/s) Print speed TTX 674/Puma plus 100 to 300 mm/s (4 to 12 “/s) TTX 675/Lion plus 100 to 300 mm/s (4 to 12 “/s) - Page 4 Extended + (1H..) (1X..) 1 x 1 MB 1 x 2 MB 2 x 2 MB S-RAM S-RAM S-RAM TTX 450/ S45 /Puma 356 mm 245 mm 339 mm 679 mm 1359 mm (383 mm*) TTX 650/ S65/ Lion/ 301 mm...
- Page 5 02/03 Rev. 2.17-01 USER + SERVICE MANUAL Specifications TTX / Wildcats, Seite 5 – – TTX x50/67x Wildcats (plus) S 45/65/95/105 Be aware, that the max. printing length may vary from one firmware version to the next. Adding features to the printer means often taking away some millimeters of printing length from the image buffer! For detailed information on the different firmware versions refer to the service manual, topic section "Firmware", "Firmware Versions".
-
Page 6: Label Material Specifications
Roll with max. outer ∅ 210 mm, Material supply inner ∅ 1,5“ (38 mm), 3“ (76 mm), 4“ (102 mm) Material width TTX 450/S45/Puma 25.4 to 113 mm TTX 650/S65/Lion 25.4 to 154 mm TTX 674/Puma plus 25.4 to 154 mm TTX 675/Lion plus 25.4 to 154 mm... -
Page 7: Connections, Device Data
02/03 Rev. 2.17-01 USER + SERVICE MANUAL Specifications TTX / Wildcats, Seite 7 – – TTX x50/67x Wildcats (plus) S 45/65/95/105 Connections, device data Mains voltage 115 V, 230 V and 240 V, ± 10 %, changeable Mains frequency 50/60 Hz Power approx. -
Page 8: Appendix
128.0 mm Through-run diagram TTX 950 160.0 mm TTX 1050 213.2 mm Printhead extendable to max. mat. width TTX 450 not possible TTX 650 possible TTX 950 possible TTX 1050 possible Printer min. mat. width TTX 450/674 26,0 mm TTX 650/675... -
Page 9: Index
02/03 Rev. 2.17-01 USER + SERVICE MANUAL Specifications TTX / Wildcats, Seite 9 – – TTX x50/67x Wildcats (plus) S 45/65/95/105 Index -fan-folded ..........6 Material supply ..........6 Automatic ribbon economy ......4 Material type..........6 Material weight ..........6 Bar codes ............5 Material width ..........
