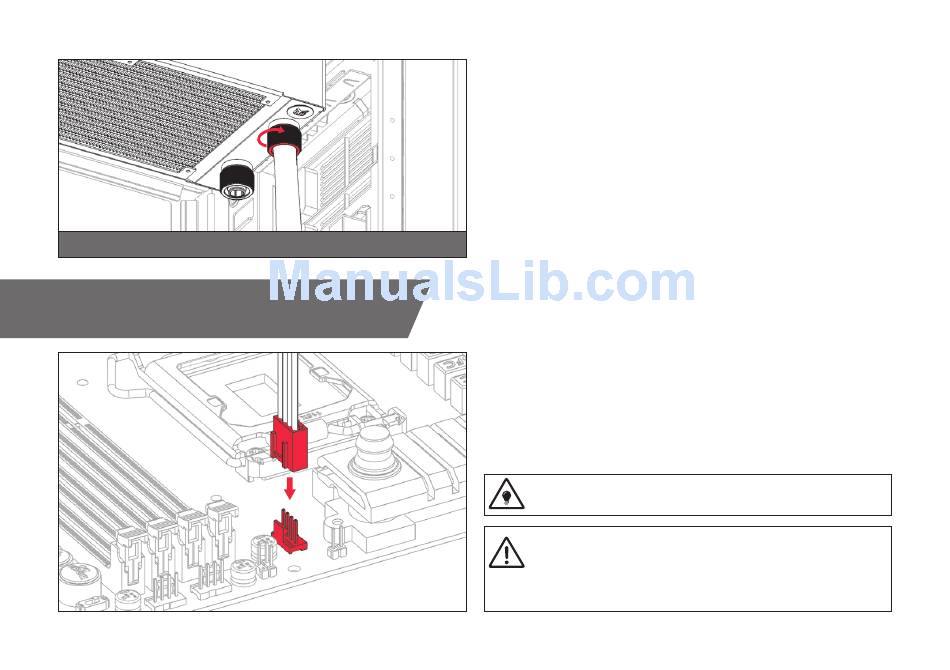

ELECTRICAL CONNECTIONS

/ 22 /
STEP5
STEP 5.:
Slide the fitting ring towards the barb and tighten it in clockwise direction as
far as it goes.
Repeat the procedure on all the fittings in order to connect the water cooling loop.
The liquid cooling loop components are now connected and the cooling cir-
cuit is now complete.
CONNECTING THE PUMP-RESERVOIR
UNIT
Take the cable with 4-pin PWM (fan) connector from the pump-reservoir unit.
Plug it to the male connector header located on the motherboard. Always
use CPU-dedicated fan headers if possible.
Always use CPU fan header. On majority of motherboards these
headers usually offer best PWM regulation.
In order to fill the liquid cooling loop for the first time as well as do a
proper leak test you should connect the pump directly to the pow-
er supply independently (without turning on your PC hardware).
Please proceed to Page 24, chapter RECOMMENDED FILLING
AND LEAK-TESTING PROCEDURE.
