STEP 10
UNC 6-32 x 30 screw
Fan
Radiator
STEP 1
STEP 10
Install the CPU water block along with the motherboard back into the com-
puter chassis.
The installation of the CPU waterblock is now complete.

INSTALLING THE RADIATOR AND FANS

OPTION #1:
INSTALLING THE RADIATOR AND FANS

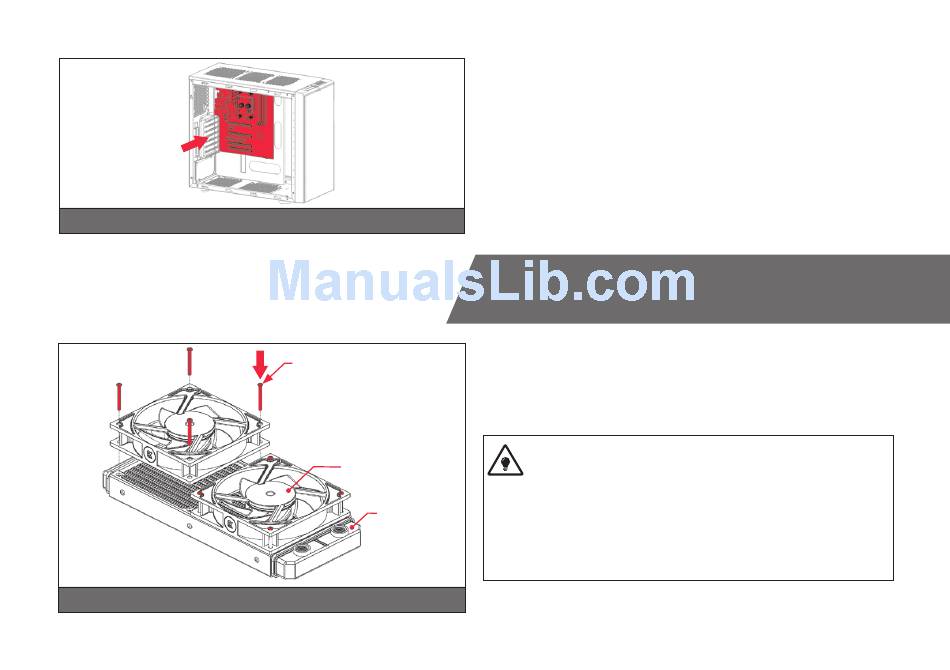

STEP 1
Install the fans on the radiator.
Ideally, the radiator should either:
A) receive the coldest air possible (by placing the radiator on
the air inlet) or
B) serve as an overall hot air exhaust (by placing the radiator on
the exhaust).
The latter results in overall decrease of temperature throughout the
entire computer chassis but also leads to slightly higher liquid tem-
peratures. A reversed air flow is viable option but one should always
strive to achieve unidirectional flow of air throughout the chassis.
Take the four UNC 6-32x30mm screws for each fan and screw them in. Use
enclosed Allen key to tighten the screws in clockwise direction.
