12 Set R-switch position and insert R-wire or wires
Set the R-switch up or down based on your wiring notes in Step 7.
Insert wires into the inner holes of the terminals on the UWP. The tabs will
stay down once the wire is inserted.

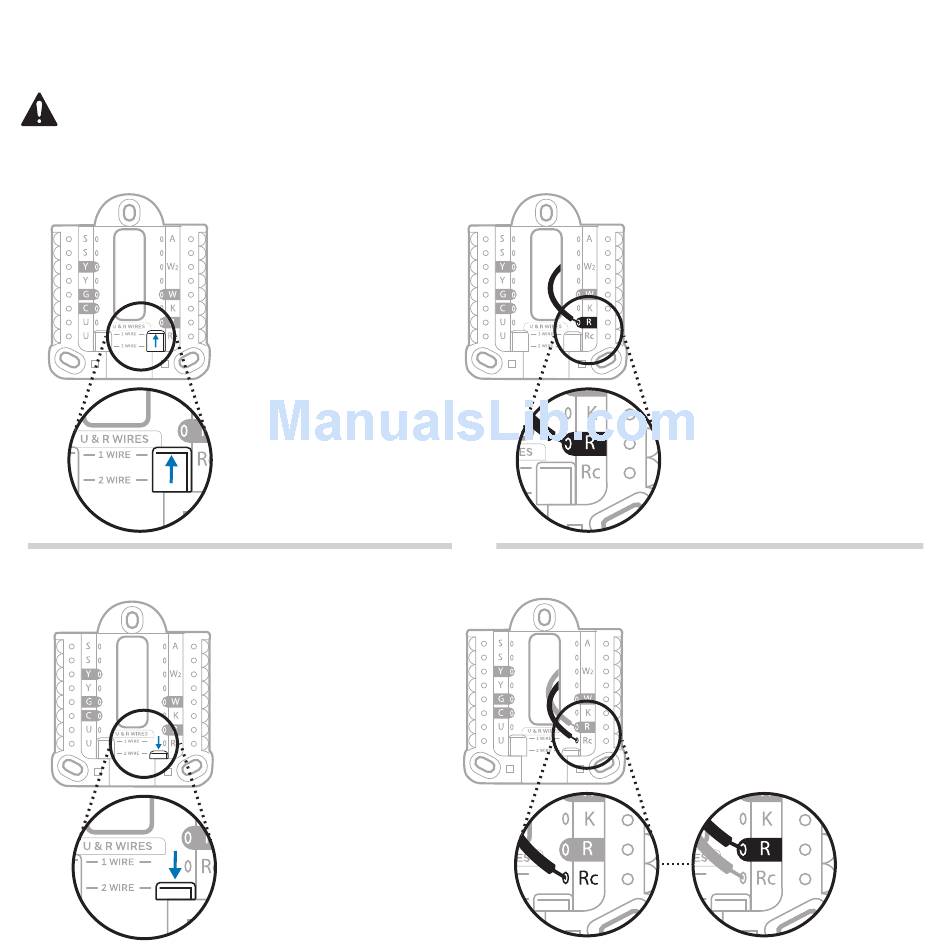

If you have 1 R-wire (R, Rh, or Rc)

If you have 2 R-wires (R or Rh, and Rc)

1. Set R-switch to
the up position.
1. Set R-switch
to the down
position.
2.
or
2.
3.
12
Insert your R-wire
(R, Rh or Rc) into
R-terminal.
Insert your Rc wire
into Rc-terminal.
Insert your R or Rh
wire into R-Terminal.
