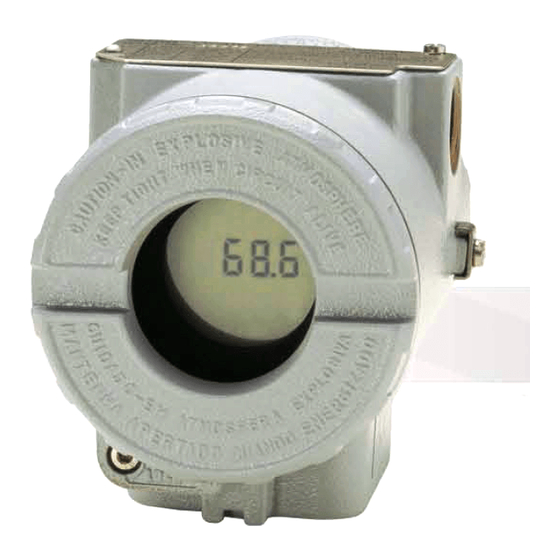

SMAR IF302 Operation, Maintenance & Instruction Manual

Triple channel current to fieldbus converter
Hide thumbs Also See for IF302:
Table of Contents

Advertisement

Quick Links

See also: Installation, Operation & Maintenance Manual
I
F 3 0 2 M E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IF302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMAR IF302

Summary of Contents for SMAR IF302

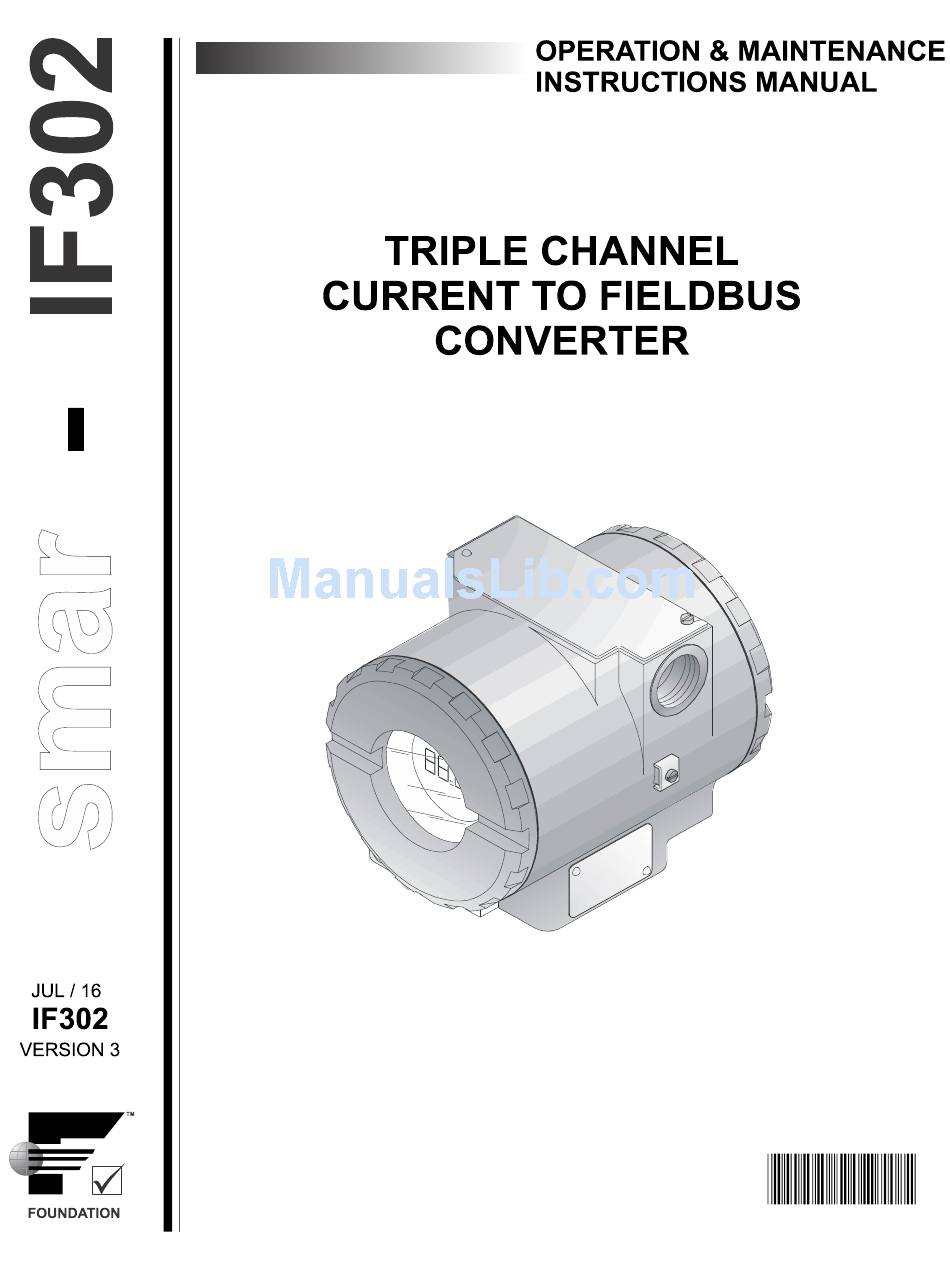

  • Page 1 F 3 0 2 M E...
  • Page 2 Specifications and information are subject to change without notice. Up-to-date address information is available on our website. web: www.smar.com/contactus.asp...
  • Page 3 The IF302, like the rest of the 302 family, has several Function Blocks built in, like PID controller, Input Selector, Arithmetic, Signal Characterizer and Flow Totalization. These useful blocks eliminate the need for separate devices and reduce communication and therefore decreasing dead-time and making the control tighter, not to mention the reduction in cost.
  • Page 4 Smar provides specific training to instruct and qualify such professionals. However, each country must comply with the local safety procedures,...

  • Page 5: Table Of Contents

    Vcdng"qh"Eqpvgpvu" TABLE OF CONTENTS UGEVKQP"3"/"KPUVCNNCVKQP"0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"303" GENERAL .................................... 1.1 MOUNTING ..................................1.1 ELECTRIC WIRING ................................1.1 TOPOLOGY AND NETWORK CONFIGURATION ......................1.3 INPUT WIRING ..................................1.5 UGEVKQP"4"/"QRGTCVKQP"000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"403" FUNCTIONAL DESCRIPTION – ELECTRONICS ....................... 2.1 UGEVKQP"5"/"EQPHKIWTCVKQP"000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000"503" TRANSDUCER BLOCK ............................... 3.1 HOW TO CONFIGURE A TRANSDUCER BLOCK ......................3.1 TERMINAL NUMBER ................................
  • Page 6 KH524"⁄"Qrgtcvkqp"cpf"Ockpvgpcpeg"Kpuvtwevkqp"Ocpwcn" XK"...
  • Page 7 Simulate the value(s) in the 4 a 20 mA input and verify the signal(s) in Fieldbus. Energize the converter properly. Is the indication correct? IF302 needs a external power supply for supply the 4 - 20 mA equipment . See section 4 - Maintenance XKK"...
  • Page 8 KH524"⁄"Qrgtcvkqp"cpf"Ockpvgpcpeg"Kpuvtwevkqp"Ocpwcn" XKKK"...

  • Page 9: General

    Section 1 INSTALLATION General NOTE The installation carried out in hazardous areas should follow the recommendations of the IEC60079-14 standard. The overall accuracy of measurement and control depends on several variables. Although the converter has an outstanding performance, proper installation is essential, in order to maximize its performance.
  • Page 10 Various types of Fieldbus devices may be connected on the same bus. The IF302 is powered via the bus. The limit for such devices is 16 for one bus (one segment) for non-intrinsically safe requirement. In hazardous area, the number of devices may be limited by intrinsically safe restrictions.

  • Page 11: Topology And Network Configuration

    Installation ALLOW 150 MM MINIMUM FOR LOCAL ZERO AND SPAN ADJUSTMENT WITH MAGNETIC TOOL. PLUG CONDUIT CONNECTION PLUG COMMUNICATIONS TERMINAL WALL OR PANEL MOUNTING FOR WALL MOUNTING MOUNTING BRACKET 2 EXPANSION ANCHOR - 2 HEXAGON SCREW - 3/16”X70 FOR PANEL MOUNTING PIPE 2"...
  • Page 12 IF302 - Operation and Maintenance Instruction Manual 24VDC OUT 1 Fieldbus H1 OUT 2 Fieldbus H1 OUT 3 Fieldbus H1 OUT 4 Fieldbus H1 Spur Terminator Enabled FUSE 2,5A Junction smar Shield PS302 PSI302 Terminator FAIL FAIL 1 FAIL 2...

  • Page 13: Input Wiring

    Installation Input Wiring The IF302 accepts up to three current inputs in the range 0-20 mA or 4-20 mA. The three inputs have a common ground and they are protected from reverse polarity signal. The inputs should be connected as per Figure 1.6 - Input Wiring.
  • Page 14 In Explosion-Proof installations the cable entries must be connected or closed using metal cable gland and metal blanking plug, both with at least IP66 and Ex-d certification. The standard plugs provided by Smar are certified according to CEPEL certificate. If the plug needs to be replaced, a certified plug must be used.

  • Page 15: Functional Description - Electronics

    The IF302 accepts signals from mA generators such as most conventional transmitters. It is therefore ideal for interfacing existing equipment to a Fieldbus system. Functional Description – Electronics Refer to the block diagram (See Figure 2.1 - IF302 Block Diagram). The function of each block is described below. MUX Multiplexer The MUX multiplexes the input terminals to ensure that all three channels reach the A/D converter.
  • Page 16 IF302 – Operation and Maintenance Instruction Manual MAIN CIRCUIT BOARD INPUT CIRCUIT BOARD POWER ISOLATION FIRMWARE LOCAL ADJUST DOWLOAD INTERFACE SUPPLY FLASH POWER SUPPLY EEPROM SIGNAL MODEM SHAPING (*) Resistor Shunt  3 x 100 DISPLAY BOARD DISPLAY CONTROLLER Figure 2.1 - IF302 Block Diagram * WARNING Apply in the inputs of the conversor only current levels.

  • Page 17: Transducer Block

    One of the many advantages of Fieldbus is that device configuration is independent of the configurator. The IF302 may be configured by a third party terminal or operator console. The IF302 contains three input transducer blocks, one resource block, one display transducer block and function blocks.

  • Page 18: Primary Value Status

    Current Trim The IF302 provides the capability of making a trim in the input channels, if necessary. A trim is necessary if the indicator reading of the transducer block output differs from the actual physical output. The reason may be: ...
  • Page 19 Figure 3.1 - Current Trim - IF302 It is possible to calibrate the current inputs of the transmitter by means of parameters CAL_POINT_LO and CAL_POINT_HI. Let’s take the lower value as an example: Supply 4 mA or the lower value to the terminal block and wait until the readout of parameter PRIMARY_VALUE stabilizes.

  • Page 20: Via Local Adjustment

    LAST_TRIM_BACKUP. Via Local Adjustment The IF302 has 3 input transducers and its device leaves SMAR with factory settings. The factory setting establishes only the transducers #1 as default for local adjustment. In order to configure the others via local adjustment, the user should configure them in the display transducer via SYSCON, according specific instructions for this transducer block.

  • Page 21: Display Transducer Block

    SYSCON (System Configurator). The Figure 3.8 - Parameters for Local Adjustment Configuration and the Figure 3.11 - Step 1 - IF302 show all parameters and their respective values, which shall be configured in accordance with the necessity of being locally adjusted by means of the magnetic tool.
  • Page 22 IF302 - Operation and Maintenance Instruction Manual Sub_Index In case you wish to visualize a certain tag, opt for the index relative equal to zero, and for the sub- index equal to one (refer to paragraph Structure Block in the Function Blocks Manual).
  • Page 23 Configuration Figure 3.5 - Parameters for Local Adjustment Configuration Figure 3.6 - Parameters for Local Adjustment Configuration...

  • Page 24: Programming Using Local Adjustment

    IF302 - Operation and Maintenance Instruction Manual Figure 3.7 - Parameters for Local Adjustment Configuration The option "update" should This parameter be selected in order to updates the local execute the upgrade of local adjustment adjustment programming programming tree tree.

  • Page 25: J1 Jumper Connections

    Configuration Magnetic Tool Span Hole Zero Hole Fig. 3.9 - Local Adjustment Holes Table 3.1 shows the actions on the Z and S holes on the LD302 when Local Adjustment is enabled. HOLE ACTION Initializes and rotates through the available functions. Selects the function shown in the display.
  • Page 26 IF302 - Operation and Maintenance Instruction Manual In order to Place the start the local magnetic adjustment, tool in orifice place the S and wait magnetic tool during 5 in orifice Z seconds. and wait until letters MD 5.00 5.00 displayed.
  • Page 27 Apply the 20.0 mA S, it is current in the 1 and 4 Figure 3.14 - Step 4 - IF302 a) In order to decrement the address value, place the magnetic tool in...
  • Page 28 IF302 - Operation and Maintenance Instruction Manual 3.12...

  • Page 29: General

    Converter Fieldbus Connections Check wiring polarity and continuity. Power Supply Check power supply output. The voltage at the IF302 Fieldbus terminals must be between 9 and 32 VDC. Electronic Circuit Failure Check the boards for defect by replacing them with spare ones.

  • Page 30: Disassembly Procedure

    Disassembly Procedure Refer to Figure 4.1 - IF302 Exploded View Make sure to disconnect power supply before disassembling the converter. To remove the circuit boards (5 and 7) and display (4), first loose the cover locking (8) on the side not marked “Field Terminals”, then unscrew the cover (1).

  • Page 31: Exploded View

    Maintenance Exploded View Figure 4.1 - IF302 Exploded View Accessories ACCESSORIES ORDERING CODE DESCRIPTION Magnetic Tool for Local Adjustment BC302 Fieldbus/RS232 Interface SYSCON System Configurator PS302 Power Supply PSI302 Power Supply Impedance BT302 Terminator Process Control Interface...

  • Page 32: Spare Parts List

    IF302 - Operation and Maintenance Instruction Manual Spare Parts List SPARE PARTS LIST CATEGORY DESCRIPTION OF PARTS POSITION CODE (NOTE 4) Aluminium 1 and 15 204-0102 Cover Without Window (Includes O-Ring) 316 Stainless Steel 1 and 15 204-0105 Aluminium 204-0103...

  • Page 33: Technical Characteristics

    Section 5 TECHNICAL CHARACTERISTICS Functional Specifications 0-20 mA, 4-20 mA or any within 0 and 20 mA. Reverse polarity protected (*). Input Signal (Field Values) Output Signal Digital only, Foundation Fieldbus, 31.25 kbits/s voltage mode with bus power. (Communication) Resistive 100 Ohms , plus a 0.8 V drop over diode in forward direction. Input Impedance Bus power 9 - 32 Vdc.

  • Page 34: Ordering Code

    IF302 – Operation and Maintenance Instruction Manual Ordering Code MODEL TRIPLE CHANNEL CURRENT TO FOUNDATION FIELDBUS CONVERTER IF302 COD. Local Indicator Without indicator With indicator COD. Mounting Bracket Without Bracket Carbon Steel Accessories: Carbon Steel 316 Stainless Steel. Accessories: AI316 Carbon Steel.
  • Page 35 Crrgpfkz"C " CERTIFICATIONS INFORMATION Gwtqrgcp"Fktgevkxg"Kphqtocvkqp" Consult www.smar.com for the EC declarations of conformity for all applicable European directives and certificates. ATEX Directive (94/9/EC) – “Electrical equipment and protective system intended for use in potential explosive atmospheres” The EC-Type Examination Certificate had been released by Nemko AS (CE0470) and/or DEKRA EXAM GmbH (CE0158), according to European Standards.

  • Page 36: Csa (Canadian Standards Association)

    Environmental Protection - Enclosure Types (Type X): Supplementary letter X meaning special condition defined as default by Smar the following: Saline Environment approved - salt spray exposed for 200 hours at 35ºC. (Ref: NEMA 250). - Ingress protection (IP W): Supplementary letter W meaning special condition defined as default by Smar the following: Saline Environment approved - salt spray exposed for 200 hours at 35ºC.

  • Page 37: Fm Approvals (Factory Mutual)

    @ Terminals 1 – 4: Vmax = 30 V, Imax = 110 mA, Ci = 5nF, Li = 12 u H; when connected through CSA Certified Safety Barriers as per Smar Installation Drawing 102A0558; Code T3C. Note: Only models with stainless steel external fittings are Certified as Type 4X.

  • Page 38: Cepel (Centro De Pesquisa De Energia Elétrica)

    Special conditions for safe use: The certificate number ends with the letter "X" to indicate that for the version of Current to FIELDBUS Converter model IF302 equipped with housing made of aluminum alloy, only can be installed in "Zone 0" if is excluded the risk of occurs impact or friction between the housing and iron/steel itens.
  • Page 39 Egtvkhkecvkqpu"Kphqtocvkqp" Kfgpvkhkecvkqp"Rncvg"" CSA (Canadian Standards Association) FM Approvals (Factory Mutual) NEMKO (Norges Elektriske MaterielKontroll) / EXAM (BBG Prüf - und Zertifizier GmbH) C07"...
  • Page 40 KH524"⁄"Qrgtcvkqp"cpf"Ockpvgpcpeg"Kpuvtwevkqp"Ocpwcn" CEPEL (Centro de Pesquisa de Energia Elétrica) C08"...
  • Page 41 Egtvkhkecvkqpu"Kphqtocvkqp" Eqpvtqn"Ftcykpi" Canadian Standards Association (CSA)
  • Page 42 KH524"⁄"Qrgtcvkqp"cpf"Ockpvgpcpeg"Kpuvtwevkqp"Ocpwcn" C0:"...

  • Page 43: Control Drawing

    DESIGN VERIFIED APPROVED 0049/08 MELONI SINASTRE PELUSO M.MISSAWA MARCIAL MISSAWA ALT DE 0004/07 07 07 MOACIR CASSIOLATO ALT DE CUSTOMER: O.S. 0043/03 DRAWING N. EQUIPMENT: IF302/303 MOACIR CASSIOLATO ALT DE 102A0081 0015/00 CONTROL DRAWING REV. DESIGN APPROVED AREA 01/01 C0;"...
  • Page 44 KH524"⁄"Qrgtcvkqp"cpf"Ockpvgpcpeg"Kpuvtwevkqp"Ocpwcn" C032"...
  • Page 45 Company: _____________________________________________________________________________________________________________ Contact: _______________________________________________________________________________________________________________ Title: _________________________________________________________________________________________________________________ Section: ______________________________________________________________________________________________________________ Phone: _________ _________________________ _________ _________________________ Extension: ___________________________ E-mail: ________________________________________________________________________ Date: ______/ ______/ __________________ For warranty or non-warranty repair, please contact your representative. Further information about address and contacts can be found on www.smar.com/contactus.asp.

  • Page 46: Returning Materials

    IF302 – Operation, Maintenance and Instructions Manual Returning Materials Should it become necessary to return the converter to SMAR, simply contact your local agent or SMAR office, informing the defective instrument’s serial number, and return it to our factory. In order to expedite analysis and solution of the problem, the defective item should be returned with a description of the failure observed, with as many details as possible.
