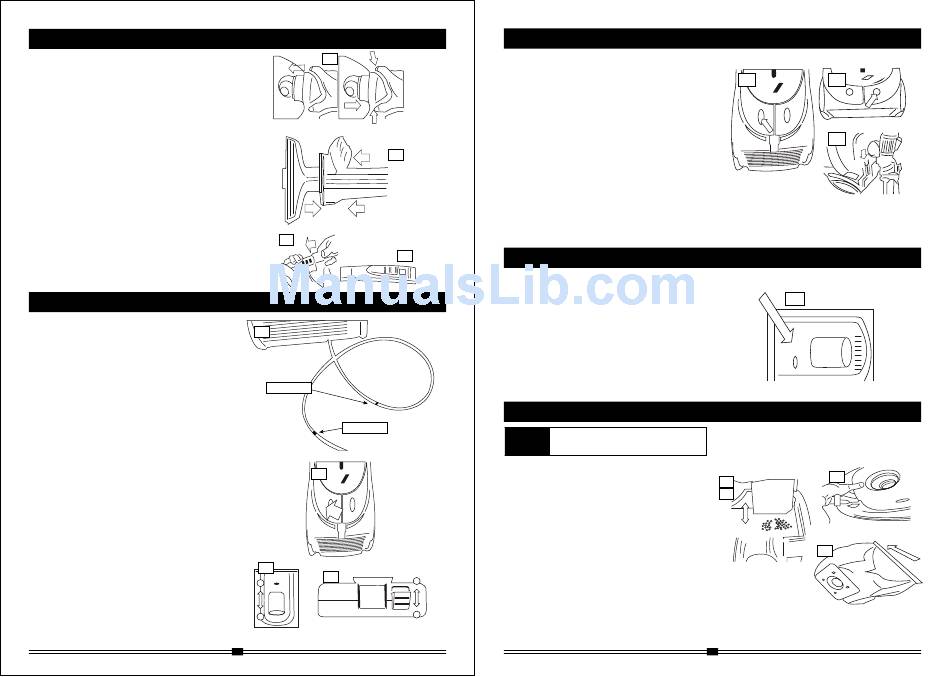

B-Preparing for Use
B-1 To connect hose, push it into the hose inlet
on the main unit. Connect extension tube and
floor brush.
To disconnect the hose, pull out while pushing
the button on the swivel connector.
B-2 Store accessory nozzles in the holder.
Attach the accessory holder to the extension
tube, and store Upholstery Brush, Dusting
Brush and Crevice Nozzle.
B-3 Adjust the length of extension tube.
Push the length adjustment button downward
(in the direction of arrow) and adjust to the
length of your favor.
B-4 Adjust suction power.
Adjust the suction power with suction
regulator.
Suction power is weakened by sliding the
regulator forward and open the vent.
Suction power is strengthened by sliding the
regulator backward and close the vent.
C-1 Pull power cord out of the main unit, and plug
in to the wall socket.
Yellow mark indicates the remaining cord is
approx. 1m.. Red mark indicates the cord is
pulled out to the maximum length.
C-2 Press ON/OFF power switch and start
cleaning.
C-3 Adjust suction power.
Adjust the suction power with power control
knob.
Suction power is strengthened by sliding the
regulator forward.
Suction power is weakened by sliding the
regulator backward.
C-4 Use accessory nozzle by attaching to the end
of handgrip.
Use at adjust suction power is weakened.
C-5 Adjust floor brush.
Adjust the kind of floor with ON/OFF brush
switch.
ON/OFF brush switch is knocked down
backward and it cleans on flooring.
ON/OFF brush switch is knocked down
forward and it cleans on carpet.
In case of operating more than 2 hours, power
is turned off as the safety device acts.
Unplug from wall socket and leave the main
unit at a cool place for 1 hour.
B-1
B-3
C-Cleaning
C-1
Red Mark
Yellow Mark
C-2
C-3
C-4
1
2
4
D-1 Press ON/OFF power switch to turn off the
power, and unplug from wall socket.
D-2 Press the cord rewind button and store the
power cord.
When rewinding power cord, hold the plug to
prevent any injury.
D-3 Shorten the extension tube and insert the
stand stopper into the storage slot on the main
unit.
B-2
B-4
E-1 When the dust bag becomes full and the dust
indicator on the main unit lights, clean the dust
bag.
To check the dust indicator, lift up the floor
brush from the floor.
If the dust indicator appears while cleaning
with accessory nozzle, check if the indicator is
still on even without the nozzle.
If the dust indicator is still on even after
detaching the nozzle, clean the dust bag.
Turn off the Switch before unplugging, Unpiug
CAUTION
for Turn off the Main Switch before unplugging.
Unpiug from outlet before maintenace
Before cleaning, unplug the power plug from the
wall socket.
Cleaning Dust Bag
F-1 Detach the hose from the main unit, and open
the lid by pressing lid release tab.
F-2 Take out the dust bag and take off the sliding
fastener.
F-3 Throw away the dust in the dust bag.
F-4 Wash the dust bag with hands and leave it dry
at a shaded place.
F-5 Set the dust bag to the main unit.
F Cleaning Filter
1
F-6 Detach the hose from the main unit, open the
lid and take out the dust bag.
F-7 Take out the filter and wash the filter by gently
2
pressing it in water, and leave it dry at a
shaded place.
F-8 Set the filter to the main unit.
D-After Use
D-1
D-2
D-3
E-Dust Indicator
E-1
F-Maintenance
F-1
F-7
F-8
F-2
5
