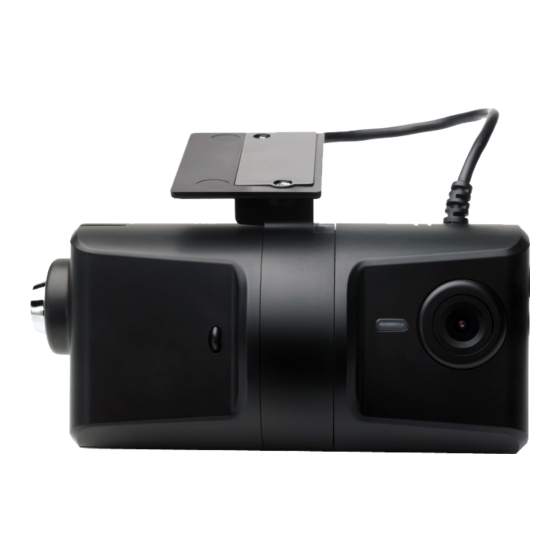

SmartWitness KP1S

Installation Guide

v.1.2
WARNING: SmartWitness installations should be performed by a qualified individual or
installation professional only. Working with a vehicle's power system can be dangerous to
both you and your vehicle. This installation is intended only to be a guide since vehicle
designs and power/input sources can vary significantly from vehicle to vehicle.
If you need to schedule a professional installation service in the USA for your SmartWitness
device(s), please visit
http://smartwitness.com/scheduleinstall
and submit the online form.
www.smartwitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KP1S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smart Witness KP1S

Summary of Contents for Smart Witness KP1S

  • Page 1: Installation Guide

    SmartWitness KP1S Installation Guide v.1.2 WARNING: SmartWitness installations should be performed by a qualified individual or installation professional only. Working with a vehicle's power system can be dangerous to both you and your vehicle. This installation is intended only to be a guide since vehicle designs and power/input sources can vary significantly from vehicle to vehicle.
  • Page 2 Conflicting Reports of Actual Events, Driving Offence Allegations (speeding, traffic signal violations, swerving, etc.). When a 3G SIM card is used with KP1S, video, images, and driving data is transmitted in real-time via a cellular network. Customers can use the KP1S to transmit safety-...

  • Page 3: Package Contents

    Depending on the order, the secondary camera, 3G Modem, and SD card may or may not be included SD Cards, Secondary camera, Power Adaptor, and 3G modems may be in a separate package from the KP1S (common in large, bulk orders).

  • Page 4: Installation: First Steps

    Camera lens *USB input for Wi-Fi modem (optional) * If this is the WiFi version of KP1S, then the WiFi modem should be inserted at this time into the USB input beneath the SD card slots.  Attach the provided 3M adhesive pad to the KP1S bracket and press firmly.
  • Page 5 KP1S Power Adaptor and Wiring:  To connect the KP1S lead cable to the INT1S power adaptor, lining up the arrows on the silver cable connectors and then push together. Twist the silver plate as shown below to secure the connection.

  • Page 6: Ignition (Ign+)

    Connecting the Secondary Camera to KP1S ch2 input (optional)  The KP1S is equipped with a simple plug & play connection to a variety of SmartWitness 5V cameras. Simply connect the 2.5mm male stereo connector of the SmartWitness camera (any model ending in “-S”, such as the SVA030-S) into the female stereo input on the KP1 and mount the camera to the...
  • Page 7  Secondary Camera installation examples: On windshield using adhesive On A-Pillar or headliner using screw mount Connecting 3G Cellular Modem (optional)  Connect the male USB port from the 3G Modem into the female USB port as seen in picture below. Secure the male/female USB connection with the provided silicone cold shrink tape.

  • Page 8: Final Steps

    & 3G modem), you can turn on vehicle ignition and the KP1S will power on. There will be a sequence of LED lights cycling during boot process. Once boot up is complete, there will be a solid blue light. This indicates proper operation and recording.

  • Page 9: Troubleshooting

    If Link LED is OFF, check the USB connection of the cable and modem  If Link LED is blinking and the KP1S Green LED is also blinking, it may be a camera  configuration issue or server issue. Please contact SmartWitness.
  • Page 10 KP1S LED Specification Normal Operation Power OFF Startup 30sec Boot up complete 90sec 0sec 1.1. Startup, Data Buffering to NAND (0 to 90seconds after power on) KP1 BOOT UP SEQUENCE (red) (green) (blue) (orange) step ( 0~12sec) step (12 ~ 30sec) ON &...
  • Page 11 1.2. Normal Operation (after 90 second boot up sequence) Normal Operation (red) (green) (blue) (orange) 3G Connected No dongle or SIM Connectivity 3G error (network dead ON & OFF zone, server down, etc.) slowly Continuous Record mode Event Record mode Recording (by record Dual Record Mode...
  • Page 12 1.3. Other Functions Item (red) (green) (blue) (orange) Immediately after power ON & OFF together, ON & OFF together, FW Upgrade on when FW file (.bin) is alternating with alternating with present Blue/Green Red/Orange ON and OFF Quickly + After Power up sequence G-Sensor and small red button on Beep...
