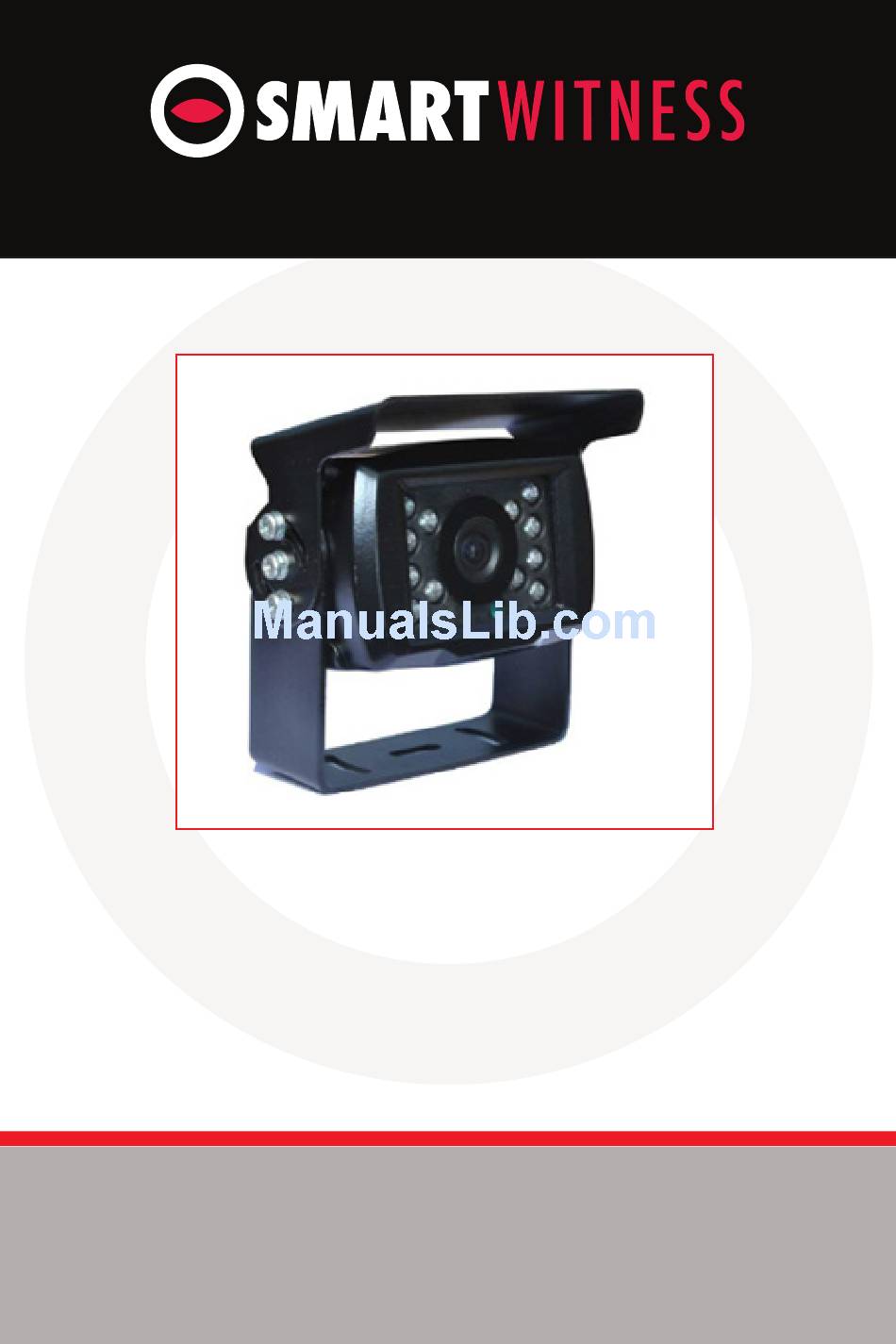

- Page 1 VEHICLE CCTV AND SAFETY SYSTEMS Weatherproof Camera with 92° Wide Angle Lens & 10m IR Night Vision SVA035-2 User Guide www.smartwitness.com...
-
Page 2: Table Of Contents
CONTENTS Safety Advice ................1. Overview ................. Contents ................2. Installation ................3. OSD Options ..............................Specifications www.smartwitness.com... -
Page 3: Safety Advice
SAFETY ADVICE CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN DO NOT REMOVE THE COVER REFER SERVICING TO QUALIFIED SERVICE PERSONNEL Please unpack the box carefully and identify that all the parts are present. The camera is NOT suitable for indoor or outdoor use. Make sure you use the recommended power input. -
Page 4: Overview
1. OVERVIEW The SVA035-2 is a durable external vehicle CCTV rear view camera with a 20cm cable that terminates in a BNC socket (for video output) and a DC socket (for power input). The camera has a heavy duty design and features a 92°... -
Page 5: Installation
2. INSTALLATION DC Socket for OSD Controller power BNC Socket for video Connect to 12V DC Power Supply Connect to any camera input device that supports BNC (as shown above)*. *Accessories may be required to convert BNC Socket. www.smartwitness.com... -
Page 6: Osd Options
3. OSD Options White Balance AWB1/AWB2/AWB-SET/ CRR/ MW ON/OFF 2DNR Lens shading compensation /H.mirror/ Font color/Display/ Neg.image Image Adjustable DWDR DWDR/ON/OFF BLC/HLC/OFF High/ Mid/ Low/ OFF Day/Night B/W, COLOR, AUTO Privacy Zones ON/OFF(8 zones) Motion Detection ON/OFF(4 zones) Mirror H--Mirror/ OFF Gamma 0.45/ USER(0.05-1.0 adjustable) Display mode... -
Page 7: Specifications
4. SPECIFICATIONS Image Sensor 1/3” Sony Super HAD II CCD Lens 2.8mm Angle of View 92° Video Resolution 700TVL Minimum Illumination 0 Lux (IR On) Night Vision Up to 10m IR Night Vision White Balance Auto Electronic Shutter Auto Power Supply DC 12V ±10% Size (WxHxD) in mm 76x80x68... - Page 8 Technical Support For Technical Support, please contact your local distributor. Limited Warranty This product is supplied with a 2 year warranty. The Warranty excludes products that have been misused, (including accidental damage) and damage caused by normal wear and tear. In the unlikely event that you encounter a problem with this product, it should be returned to the place of purchase.
- Page 9 Manufactured Exclusively for: VEHICLE CCTV AND SAFETY SYSTEMS www.smartwitness.com Smart Witness, Unit 2 Valley Point, Beddington Farm Road, Croydon, Surrey, CR0 4WP...
