PIPING DIAGRAMS

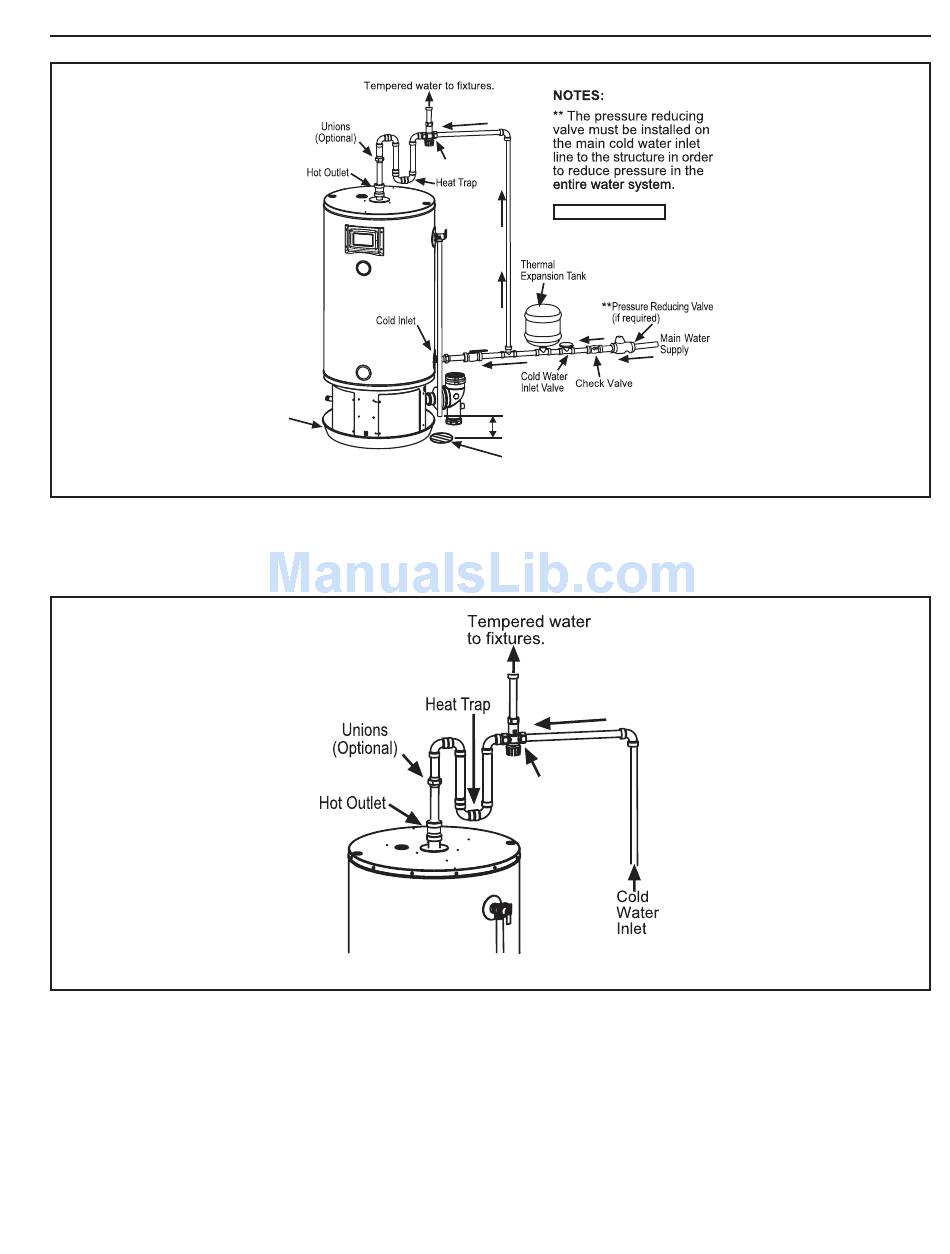

Figure 52: TYPICAL ONE-TEMPERATURE SYSTEM PIPING INSTALLATION (All Models)
Mixing Valve
Metal
Drain
Pan
Figure 53: SAMPLE MIXING VALVE INSTALLATION (All Models)
Check local codes.
6" (15.2cm)
Air Gap Max.
Adequate Drain
Mixing Valve
(set to 120° F
[48.8° C] or lower)
59
