WIRING DIAGRAM

CAUTION
LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND
DANGEROUS OPERATION. VERIFY PROPER OPERATION AFTER SERVICING.
CCB J17
Low Voltage Field
CCB J5
CCB J16
CCB J1
CCB J3
Blower Logic
Low Voltage In
HIGH Voltage In
Transformer
Secondary
Power
Transformer
Supply J1
Primary

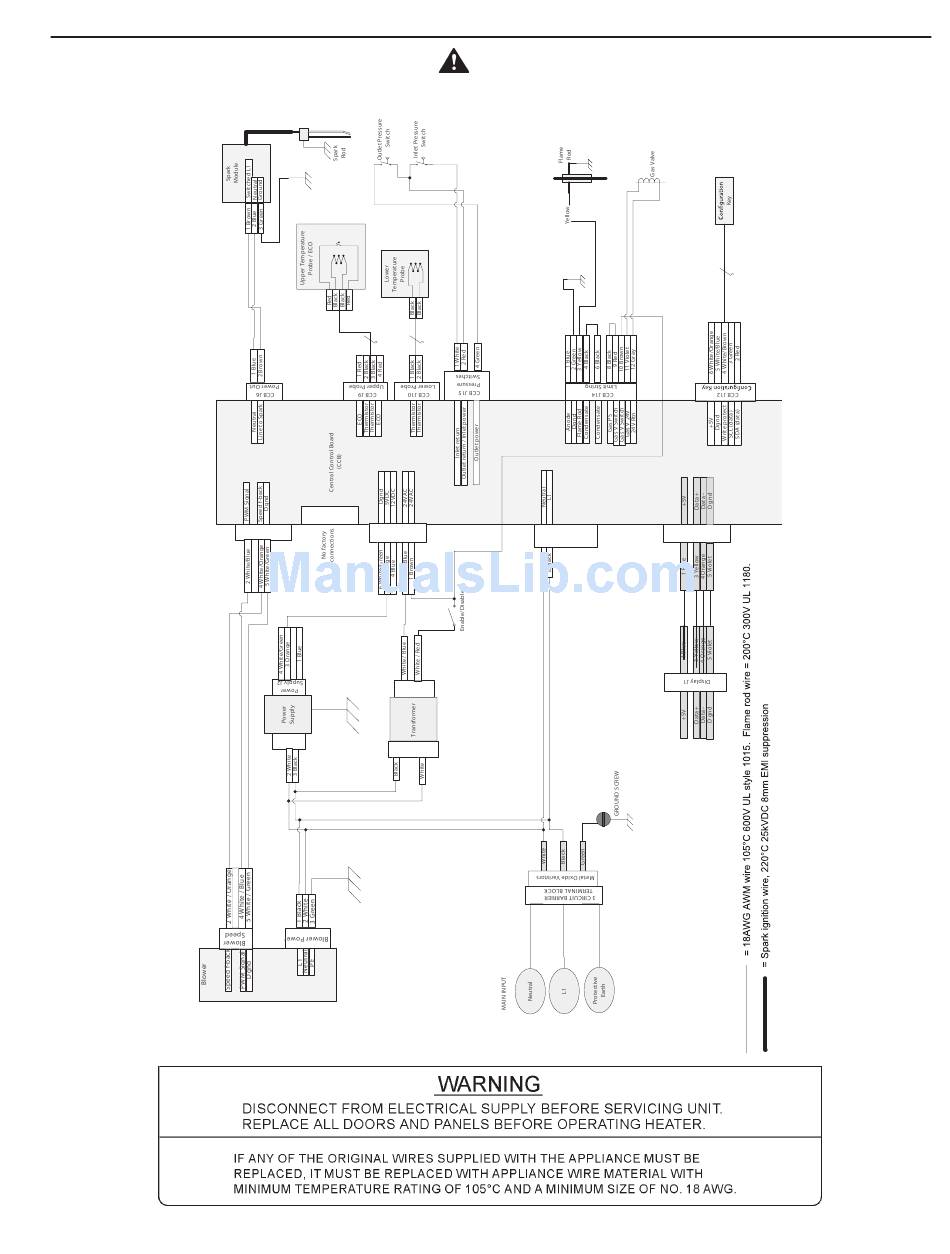

Figure 49: WIRING SCHEMATIC (All Models)
