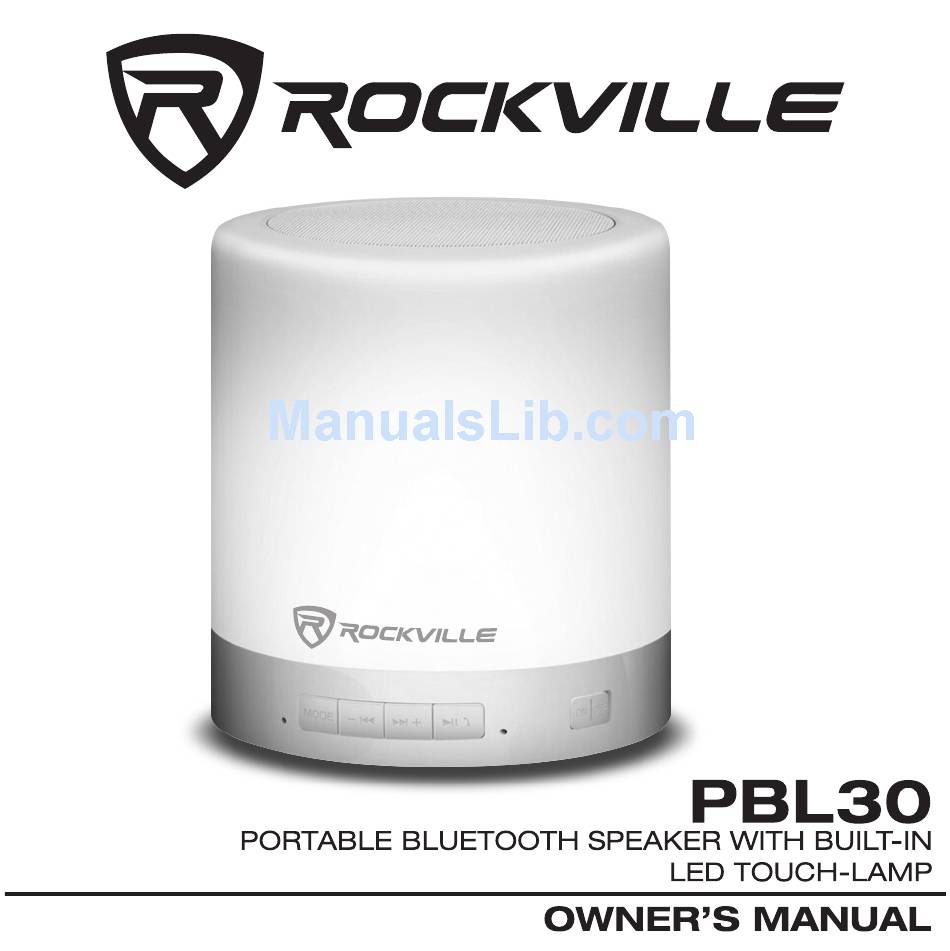

Rockville PBL30 Owner's Manual

Portable bluetooth speaker with built-in led touch lamp
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBL30 and is the answer not in the manual?

Questions and answers

Related Manuals for Rockville PBL30

Summary of Contents for Rockville PBL30

  • Page 2 LED touch-lamp. After many months of engineering Rockville is finally ready to introduce the PBL30 speaker! This is one of the best sounding and coolest Bluetooth speakers on the market. What makes this unique is that it is a multi-colored LED lamp and a Bluetooth speaker all in one.

  • Page 3: Features And Specifications

    FEATURES AND SPECIFICATIONS • 30 watts peak power • 10 watts continuous RMS • Battery charges with included USB cable • 3.7V / 1800 mAH battery supports 10 hours of playback at 70 % volume • Charge time: 1-2 Hours •...
  • Page 6 FUNCTIONS 1. LED touch-lamp control: The multi-colored LED touch lamp is controlled by touching the speaker mesh. It has 3 brightness settings when in lamp mode. To increase lamp brightness, touch the speaker mesh until desired brightness is achieved. Once the lamp is at its brightest setting, touching the speaker mesh again will turn it off.
  • Page 7 6. Play/pause/answer & end call: In Bluetooth and SD mode press button once to play current track. Press again to pause current track. In hands-free calling mode, press once to answer call and again to end call. 7. Microphone 8. Power on/off: Press for 5 seconds to power unit on or off. The speaker will automatically enter Bluetooth mode upon powering up.

  • Page 8: Light Modes

    8 —10 hours at 70% volume. LIGHT MODES The PBL30 has variety of light modes. Touching the speaker mesh for 5 sec- onds will switch the unit between lamp mode and color mode. LAMP MODE: To activate lamp mode simply push the speaker mesh. This will set the lamp to its lowest mode.

  • Page 9: Handsfree Calling

    MOBILE DEVICE PAIRING: To connect your mobile device (phone, tablet, MP3 player) enter the Bluetooth settings and search for nearby Bluetooth devices. When you see Rockville in the list of available devices, select it. If your device requires a password, enter 0000. Once succesfully paired, the blue indicator LED will stop flashing and remain solid blue.

  • Page 10: Aux Input

    AUX INPUT To enter AUX mode, insert a 3.5mm jack into the auxillary port on the back of the PBL30. This will override both Bluetooth and SD mode. Use your input device’s controls to play/pause music, navigate tracks, and adjust volume.
