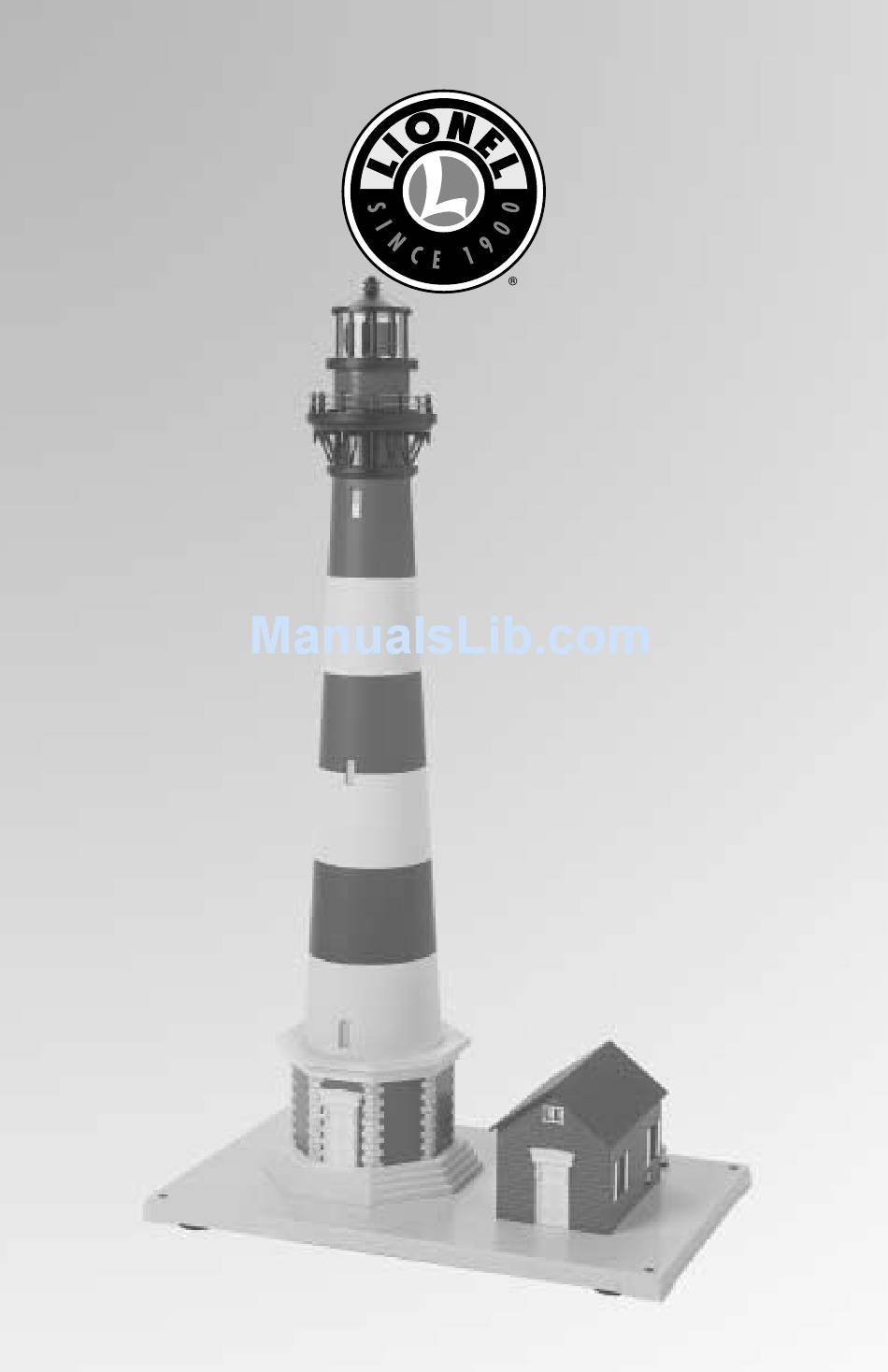

- Page 1 71-4087-250 7/02 Lionel Operating Lighthouse Owner’s Manual...
-
Page 2: Table Of Contents

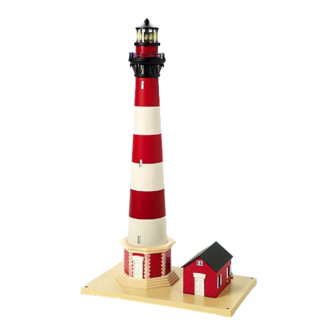

Lionel Operating Lighthouse! Featuring a bright rotating beacon and a realistic foghorn sound, the Lighthouse is perfect for any O or O-27 gauge layout. Table of contents Installing and powering your lighthouse Operating the Lighthouse... -
Page 3: Installing And Powering Your Lighthouse
Installing and powering your lighthouse lace your Lighthouse on any flat, level area on your layout, securing it to the layout by driving screws through the holes in the base. Once the Lighthouse is in place, you are ready to make these power connections for conventional operation. The Lighthouse operates best at 12-18 volts. -
Page 4: Operating The Lighthouse
Operating the Lighthouse urn on the separate power supply or power up your track, and the beacon will begin to rotate while the interior lights turn on. Press the separate control button to sound the foghorn. Turn the barrel next to the sound posts to adjust the volume. Refer to Figure 1 on page 3 for the location of the control button and the volume control knob. - Page 5 Wiring and operating your Lighthouse with TrainMaster Command Control (continued) Accessory Switch Controller wiring and operation ive wires are needed to connect your Lighthouse to the ASC and a separate accessory transformer. Connect the Lighthouse as shown in Figure 3. Use the AUX2 button on your CAB-1 Remote Controller to toggle the Lighthouse beacon ON and OFF;...
-
Page 6: Replacing The Lamps In Your Lighthouse
2. Slide the entire lamp unit down through the base. 3. Gently unscrew the expired lamp. 4. Replace the lamp with lamp no. 600-1447-300, available from your local Authorized Lionel dealer or service station. 5. Follow these steps in reverse order to replace the lamp assembly. -
Page 7: Notes
Notes... -
Page 8: Limited Warranty/Lionel Service
Limited Warranty/Lionel Service his Lionel product, including all mechani- Your nearest Lionel Service Center can be found by cal and electrical components, moving calling 1-800-4-Lionel, or by accessing our Website parts, motors and structural components, at www.lionel.com. except for light bulbs, is warranted to the original...
