Simple ISFM2351 Installation & Operation Manual page 3

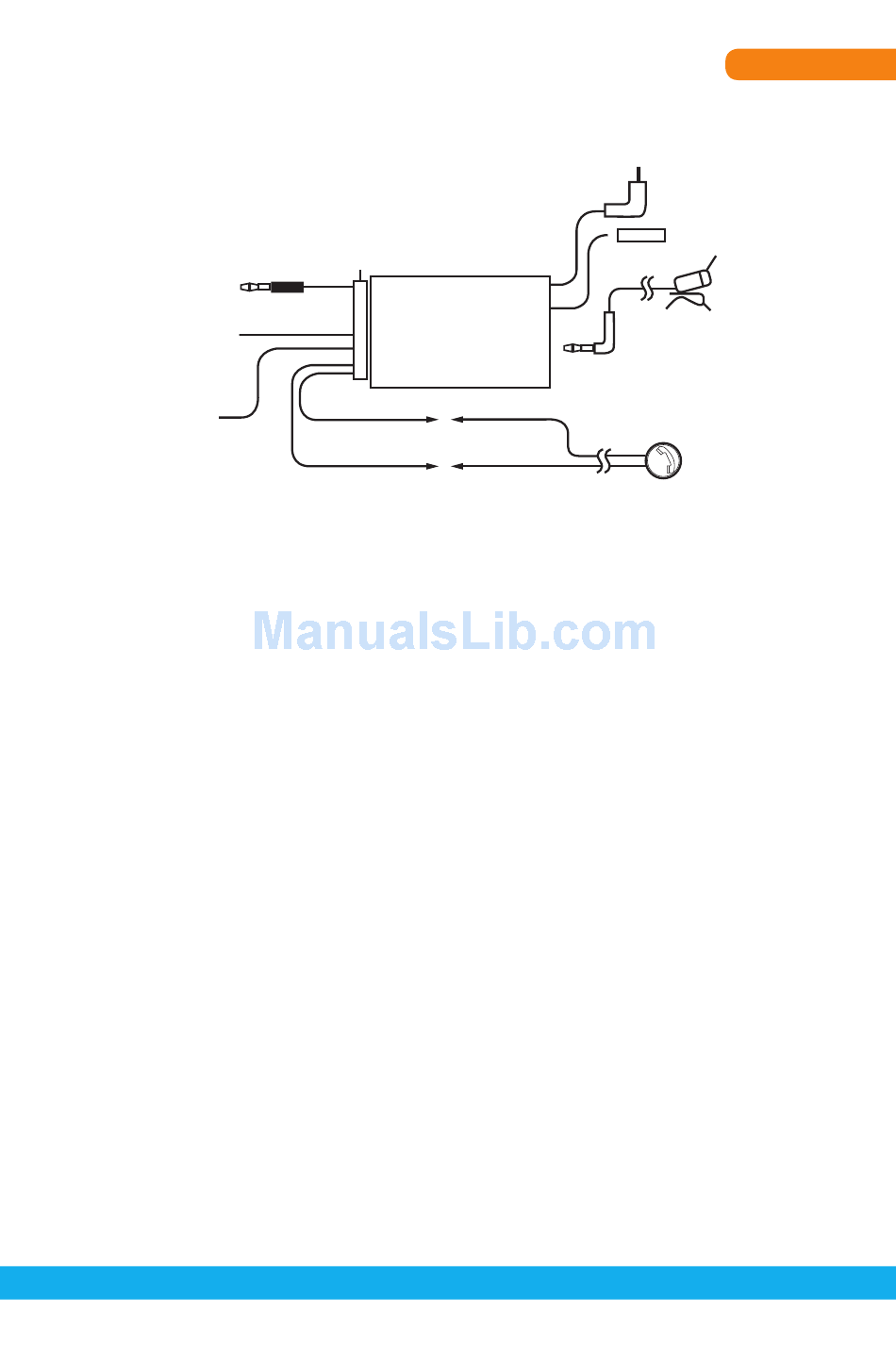

3.5mm Connector
(used for option B)
Red Wire
12V + Acc.
Switched Power
Black wire
Chassis Ground
Required connections for all applications:
Make these connections, then make the connections
described in Option A or Option B
Power connections:
1) Red wire – Connect to 12V + ACC (switched power)
2) Black wire - Connect to chassis GND
Control Button connections:
1) Pink wire - Connect control button Pink wire to ISFM2351 Pink wire
2) Black wire - Connect control button Black wire to either of the ISFM2351 Black wires
Microphone:
1) Microphone - Plug into side of ISFM2351 module
Option A - Connecting to a vehicle without an aux audio input
Audio connections:
1) 3.5mm connector – Do Not Use for this install option. (insulate for best performance)
2) Antenna connectors – connect in-line with your antenna behind your radio.
Tune the radio to 98.1 FM to enjoy your music
Option B- Connecting to a vehicle equipped with a 3.5mm
Auxiliary audio input.
Audio connections:
1) Antenna connectors - Do Not Use for this install option. (insulate for best performance)
2) 3.5mm connector – Connect into your vehicle's aux input jack
Select your radio's aux input source to enjoy your music
Harness
ISFM2351
Pink wire Pink wire
Black wire Black wire
TranzIt BLU HF
Antenna Connectors
(used for option A)
Microphone
Visor Clip
Control Button
