ZyXEL Communications PES-100 User Manual

ZyXEL Communications PES-100 User Manual

Phoneline ethernet switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

PES-100
Phoneline Ethernet Switch
User's Guide
Version 2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PES-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZyXEL Communications PES-100

Summary of Contents for ZyXEL Communications PES-100

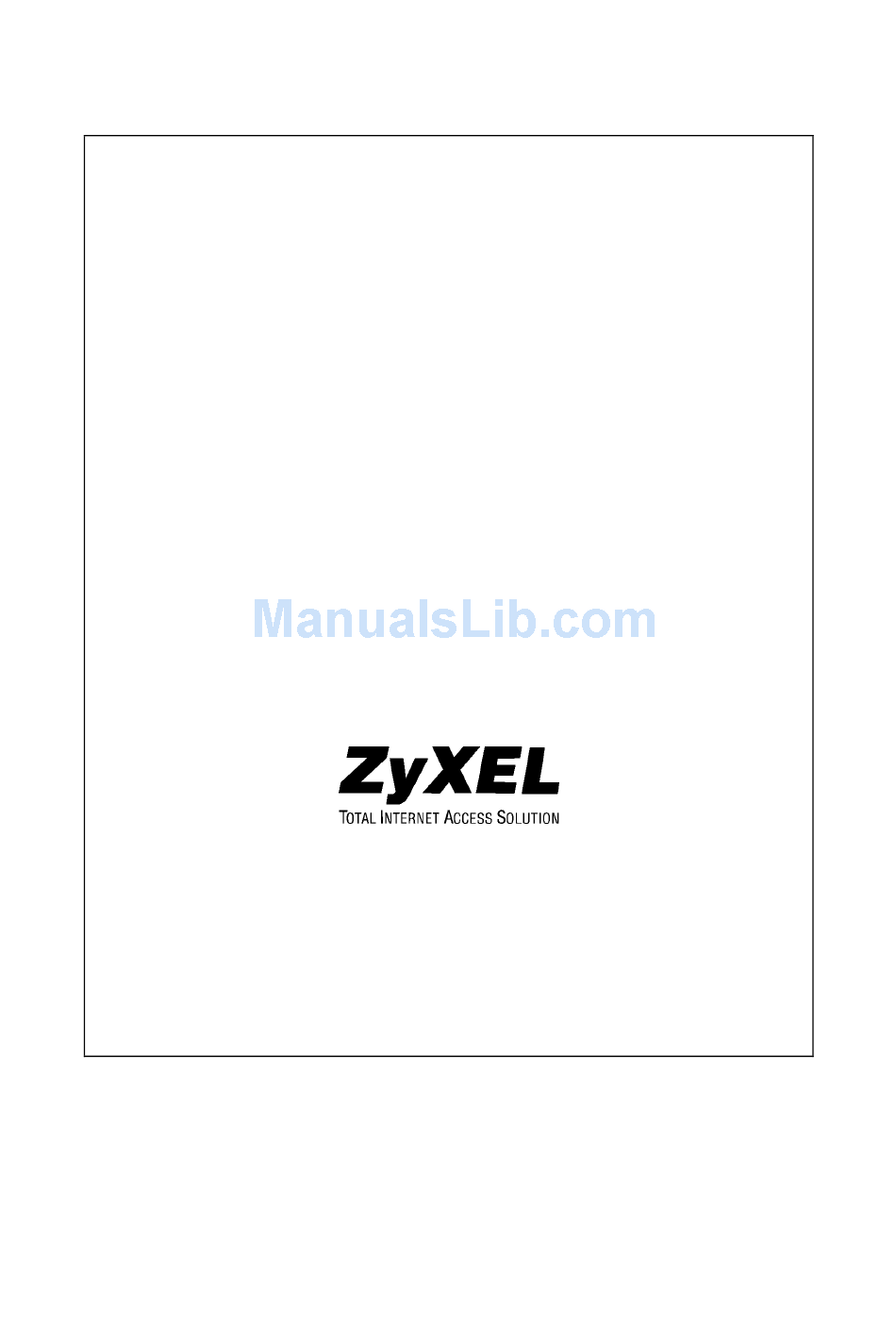

  • Page 1 PES-100 Phoneline Ethernet Switch User's Guide Version 2.0...

  • Page 2: Disclaimer

    ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein.

  • Page 3: Fcc Statement

    PES-100 Phoneline Ethernet Switch FCC Statement This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 PES-100 Phoneline Ethernet Switch important in rural areas. Caution Users should not attempt to make such connections themselves, but should contact the appropriate electrical inspection authority, or electrician, as appropriate. Note This digital apparatus does not exceed the class A limits for radio noise emissions from digital apparatus set out in the radio interference regulations of Industry Canada.

  • Page 5: Zyxel Limited Warranty

    This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. Registration Please register your PES-100 Phoneline Ethernet Switch (fast, easy online registration at www.zyxel.com) for free product updates and information.

  • Page 6: Customer Support

    PES-100 Phoneline Ethernet Switch Customer Support If you have questions about your ZyXEL product or desire assistance, contact ZyXEL Communications Corporation offices worldwide, in one of the following ways: Table 1 Customer Support E-MAIL – Support/ Sales Telephone/Fax Regular Mail...

  • Page 7: Table Of Contents

    PES-100 Phoneline Ethernet Switch Table of Contents COPYRIGHT ......................... II DISCLAIMER........................ II TRADEMARKS......................II FCC STATEMENT ......................III INFORMATION FOR CANADIAN USERS .............III ZYXEL LIMITED WARRANTY .................V CUSTOMER SUPPORT ....................VI UNPACKING INFORMATION ................1 INTRODUCTION....................2 ..................2 ENERAL ESCRIPTION ....................
  • Page 8 PES-100 Phoneline Ethernet Switch ................8 ORWARDING AND ILTERING LAN ....................8 IRTUAL CONSOLE PROGRAM/NETWORK MANAGEMENT........9 ................... 10 YSTEM ANAGEMENT ..................11 ANAGEMENT ................... 11 EMOTE ANAGEMENT PRODUCT SPECIFICATIONS ................13 PHONELINE ETHERNET 交換器..............14 使用說明書..................... 14 安裝方式......................15 網路線的安裝....................
  • Page 9 PES-100 Phoneline Ethernet Switch List of Figures Figure 1 The Package................... 1 Figure 2 Front Panel ..................... 3 Figure 3 Rear Panel ....................5 Figure 4 RS-232 DB-9, DCE/female connector ............ 9 Figure 5 System Management ................11 Figure 6 前面板 ....................14 Figure 7 後面板...

  • Page 10: Unpacking Information

    PES-100 Phoneline Ethernet Switch 1 Unpacking Information Thank you for purchasing the PES-100 Phoneline Ethernet Switch. Before you start, please check the contents in the package. The package should include the following: Ÿ One Phoneline Ethernet Switch Ÿ One power cord Ÿ...

  • Page 11: Introduction

    2 Introduction General Description The PES-100 is a powerful and innovative phoneline networking switch with twelve 1 Mbps phoneline networking ports and two 10/100 Mbps Fast Ethernet ports. It is ideal for delivering a dedicated 1 Mbps bandwidth for each attached phoneline networking device.

  • Page 12: The Front Panel

    PES-100 Phoneline Ethernet Switch Embedded web server Telnet for remote management Extensive LED status indicators Internal universal switching power supply (100 ~ 240VAC) FCC Class A The Front Panel The front panel of the switch is shown below. Figure 2 Front Panel 2.3.1 Power LED...

  • Page 13: Uplink Port

    PES-100 Phoneline Ethernet Switch Each Fast Ethernet port has three LED indicators: Speed LED The Speed LED. indicates the current speed of the Fast Ethernet port. The LED is on when the speed is 100 Mbps; it is off when the speed is 10 Mbps.

  • Page 14: The Rear Panel

    PES-100 Phoneline Ethernet Switch RS-232 port are 9600 bps, no parity, 8 data bits and 1 stop bit (n, 8, 1). The detailed connection will be described in chapter 5. The Rear Panel The rear panel of the switching hub is shown next.

  • Page 15: Installing And Using Phoneline Ethernet Switch

    PES-100 Phoneline Ethernet Switch 3 Installing and Using Phoneline Ethernet Switch Installing Phoneline Ethernet Switch 3.1.1 Desktop Installation For desktop installation, place the switch on a clean, flat surface close to a power outlet. When deciding the location of the switch, you must ensure: It is accessible and cables can be connected easily.
  • Page 16 PES-100 Phoneline Ethernet Switch the telephone line into one of the 1 Mbps port and the other end into the stations network adapter. 3.1.3.2 Ethernet Connections The Ethernet ports are for connecting the phoneline networking switch to other devices, e.g., an Ethernet switch or a router. The general rule for Ethernet is to...

  • Page 17: Switch Operations

    PES-100 Phoneline Ethernet Switch 4 Switch Operations Store and Forward The switch employs a store-and-forward architecture. The switch stores a complete packet in an internal buffer and does the complete processing, including error checking, before transmitting it to the network. Packets with error are discarded, so they will not disturb the network.

  • Page 18: Console Program/Network Management

    PES-100 Phoneline Ethernet Switch 5 Console Program/Network Management The switch has an RS-232 console port for local management. The following table and diagram show the RS-232 pin definitions. Table 2 RS-232 Pin Definitions Description TX (Transmit) RX (Receive) GND (Ground) Figure 4 RS-232 DB-9, DCE/female connector To connect a terminal directly to the switch, use a standard RS-232 serial cable.

  • Page 19: System Management

    PES-100 Phoneline Ethernet Switch 3. Reset Device This item is used to reset the switch. 4. Save Setting This item saves the current system/port configuration in the flash memory. The configuration will be available after system reset or power cycle.

  • Page 20: Port Management

    PES-100 Phoneline Ethernet Switch Wrong Password for Firmware Upgrade Wrong Password for Telnet Wrong Password for Web Management Ø Password: Select this item to change the password. Ø Error Rate: Select this item to set the threshold of CRC error rate (1%, 3%,).
  • Page 21 PES-100 Phoneline Ethernet Switch IP address of the switch in advance. The default user name is “admin” and the password is “admin”, also. Because the embedded web server uses the Java programming language, you need to modify some settings in Internet Explorer as follows: 1.

  • Page 22: Product Specifications

    PES-100 Phoneline Ethernet Switch 6 Product Specifications Table 3 Product Specifications Standards IEEE802.3, 10Base-T, 100Base-TX HomePNA specification 1.1 Interfaces 12 1 Mbps phoneline networking ports 2 10/100 Mbps Fast Ethernet ports and 1 uplink port Cables 10Base-T: UTP Category 3, 4, 5...

  • Page 23: Phoneline Ethernet 交換器

    PES-100 Phoneline Ethernet Switch 7 Phoneline Ethernet 交換器 使用說明書 感謝您購買 Phoneline Ethernet 交換器，本交換器提供以電話線及電腦終端機設 備連接網路之功用。主要功能㊠目包括： 支援 1Mbps HomePNA specification 1.1。 支援 IEEE 802.3 10BASE-T 及 IEEE 802.3u 100BASE-TX。 支援 12 個 1Mbps phoneline ports。 支援 2 個 10/100 Mbps Fast Ethernet RJ-45 ㆚太網路 ports。...

  • Page 24: 安裝方式

    PES-100 Phoneline Ethernet Switch 安裝方式 Phoneline Ethernet 交換器不需任何軟體安裝，然而如果使用者需使用網管功能， 則㈲㆒些 IP 設定是必須的，以電話線連接最高可達 500 呎(150 公尺)。 網路線的安裝 2. 電話線的連接 將 RJ-11 電話線連㆖ Phoneline Ethernet 交換器的任㆒ RJ-11 port ㆖;另㆒端接 ㉃ phoneline networking 之用戶端設備。 2. 交換器與交換器網路線的連接 在較大的網路環境㆗，可以集結數台 Phoneline Ethernet 交換器㉃高速 Ethernet 交換器或是伺服器。...

  • Page 25: Console Port 連接設定方式

    PES-100 Phoneline Ethernet Switch Console Port 連接設定方式 RS-232 腳位定義 Table 4 RS-232 腳位定義 腳位 定義 TX (Transmit) RX (Receive) GND (Ground) (RS-232 DB-9, DCE/female connector)

  • Page 26: Console 終端連接設定方式

    PES-100 Phoneline Ethernet Switch Console 終端連接設定方式 連接好 console 埠㉃ PC 後，請用終端機模擬程式進入主選單 : System Management 主要給㆒些系統設定， 如 IP address,subnet mask,password,… 等等. Port Management 將顯示出㆒些流量狀況及各 port 的狀況. Reset Device 重新啟動 Save Setting 將系統設定儲存㉃記憶體，RESET 或重新開機㈾料仍然存在. Factory Defaults 將系統設定回復㉃出廠之初始值 Quit 離開 console 程式...

  • Page 27: Index

    PES-100 Phoneline Ethernet Switch Index 1 Mbps phoneline, 2 IEEE802.3, 2 10/100 Mbps Fast Ethernet, 2 IEEE802.3u, 2 individual subscribers, 8 Installation Ethernet Connections, 7 Network Cables, 6 Cables, 2, 14 Telephone Wires, 7 Canadian Users Rack-Mount Installation, 6 information for, iii...
  • Page 28 PES-100 Phoneline Ethernet Switch Standards, 14 Statistics, 13 Store and Forward, 8 Package, 1 Password, 12 straight-through cable, 2, 5, 7 Port Management, 10, 12, 18 Subnet Mask, 11 System Buffer Memory, 14 Power, 3 Power Receptacle, 5 System Management, 10...
