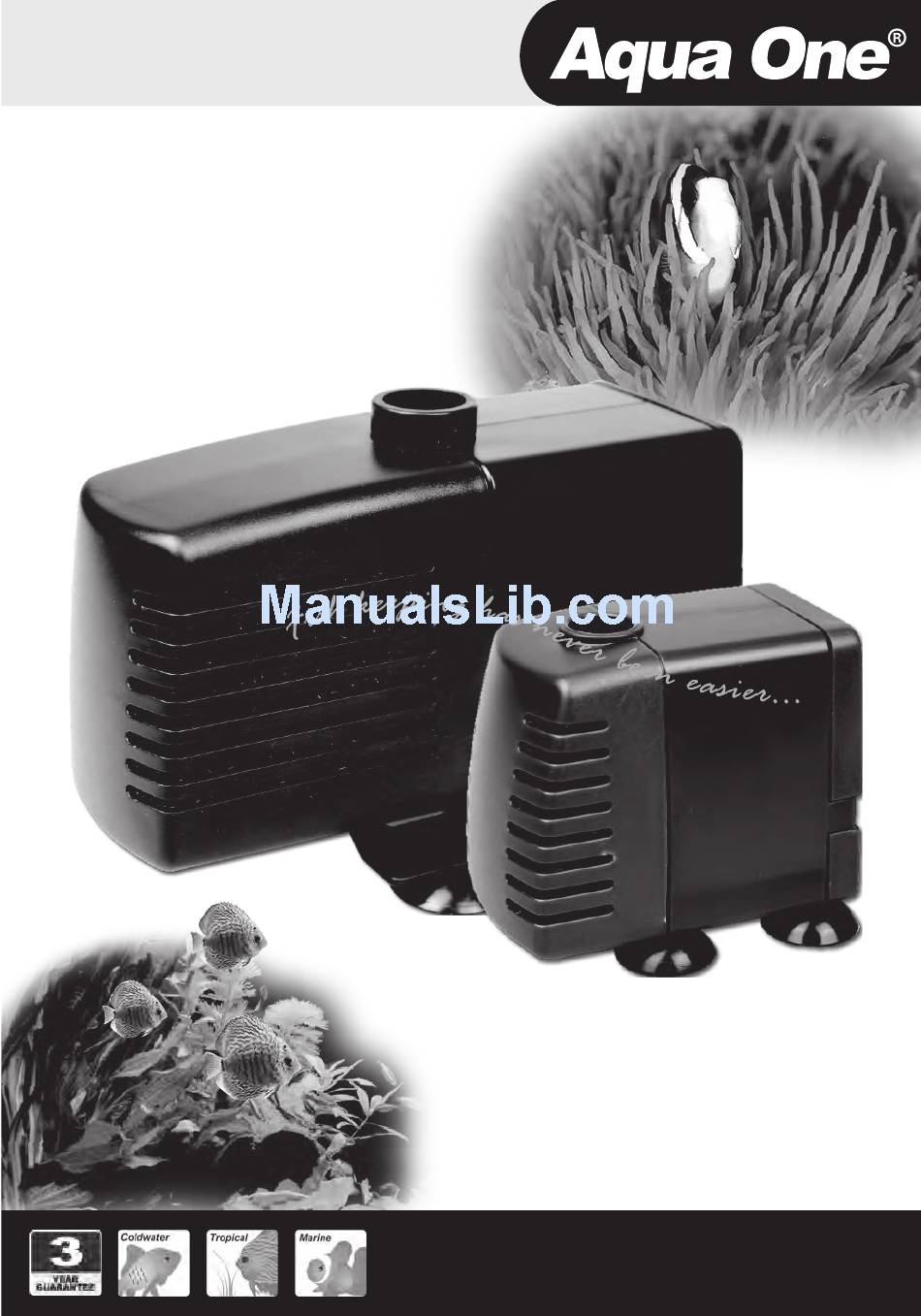

- Page 1 Moray Models: 360/480/1300 2300/3600/4900 Instruction Manual...
-
Page 2: Important Safeguards
Important Safeguards This appliance is not intended for use by persons 5. Do not use the pump for reasons other than the (including children) with reduced physical, intended use. The use of attachments that are not sensory or mental capabilities, or lack of experi- recommended or sold by the pump manufacturer may ence and knowledge, unless they have been given cause the product to be unsafe. -
Page 3: Before First Use / Preparation

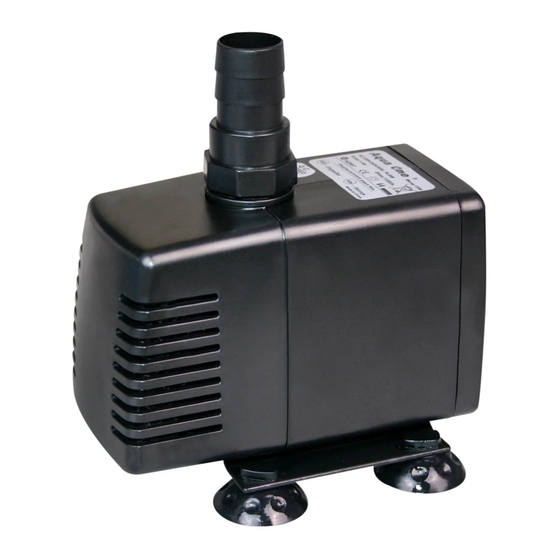

If the cord is damaged the Use Aqua One Genuine Spare Parts Only. pump should be scrapped. See your local Aqua One Dealer and look for the number listed below for the spare part you require. Alternatively you will find these numbers on the red label located on the product. - Page 4 Know Your Pump 360 / 480 1. Motor 2. Venturi outlet 3. 12mm joiner 4. Duckbill 5. Hang bracket 6. Rubber end cap 7. Impeller 8. Shaft 9. Venturi adjuster and airline 10. Impeller cover/lock 11. Internal strainer 12. Uplift adapter 13.
- Page 5 Know Your Pump 1300 1. Motor 2. Hang bracket 3. Rubber end cap 4. Impeller 5. Ceramic shaft 6. Impeller cover /lock 7. Internal strainer 8. Uplift adapter 9. Sponge 10. Strainer 11. Venturi outlet 12. Multi directional outlet 13. Barbed 19mm hose tail 14.
- Page 6 Know Your Pump 2300/3600/4900 1. Motor 2. Base 3. Rubber end cap 4. Impeller 5. Ceramic shaft 6. Impeller cover 7. Impeller lock 8. Internal strainer 9. Sponge 10. Strainer 11. Barbed 25mm hose tail 12. Threaded reducer 13. Barbed 19mm hose tail 14.
-
Page 7: Pump Installation
Pump Installation The 360, 480 or 1300 series Morays can be They are also provided with multiple outlet mounted in 2 different ways and used for a options. variety of applications. All 3 models come with uplift pipe adapters enabling them to be used as an alternative to air driven systems on under water level gravel filters. -
Page 8: Maintenance
Maintenance Pump Installation 2300 - 4900 Before installation ensure the correct materials If these pumps are being used in salt water, have been prepared and the most suitable they must be checked regularly for buildup of pump position has been selected. As with all calcium and other deposits. - Page 9 7. Use an Aqua One double ended pipe brush to clean the impeller chamber thoroughly. (Where the impeller sits in the motor)
- Page 10 1. all express and implied warranties and conditions under statute or general law, are expressly excluded and Aqua One, where permitted, will limit liability as follows and at Aqua One’s option to: in regard to goods either a) the replacement of goods or supply of equivalent goods b) the repair of goods or the cost of replacing the goods or of acquiring equivalent goods OR in regard to services either c) the re-supply of services d) the cost to re-supply services.
-
Page 11: Model Specifications
Model Specifications 220-240V ~50Hz Moray 600 L/hr 0.86m 6.5W Moray 720 L/hr 0.96m 8.5W Moray 1100 L/hr 1.4m 14.6W 1300 Moray 2200 L/hr 2.2m 2300 Moray 3600 L/hr 3.4m 3600 Moray 4800 L/hr 3.6m 100W 4900 Notes... - Page 12 Fish keeping has never been easier... Aqua One specialises in all of your aquarium needs. Aqua One uses state of the art technology which results in the most efficient and superior aquarium products. The Aqua One range includes a wide range of curved glass aquariums, air pumps, filters, power heads, heaters, reflectors, under water lighting, along with fish foods, cleaning and maintenance accessories and decorations.
