Summary of Contents for Aqua One Moray Series

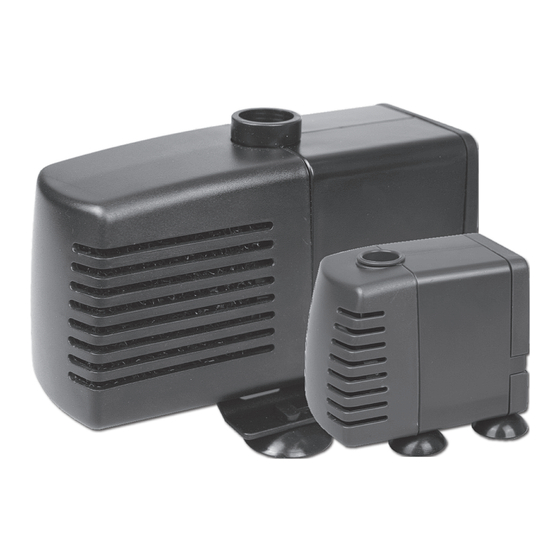

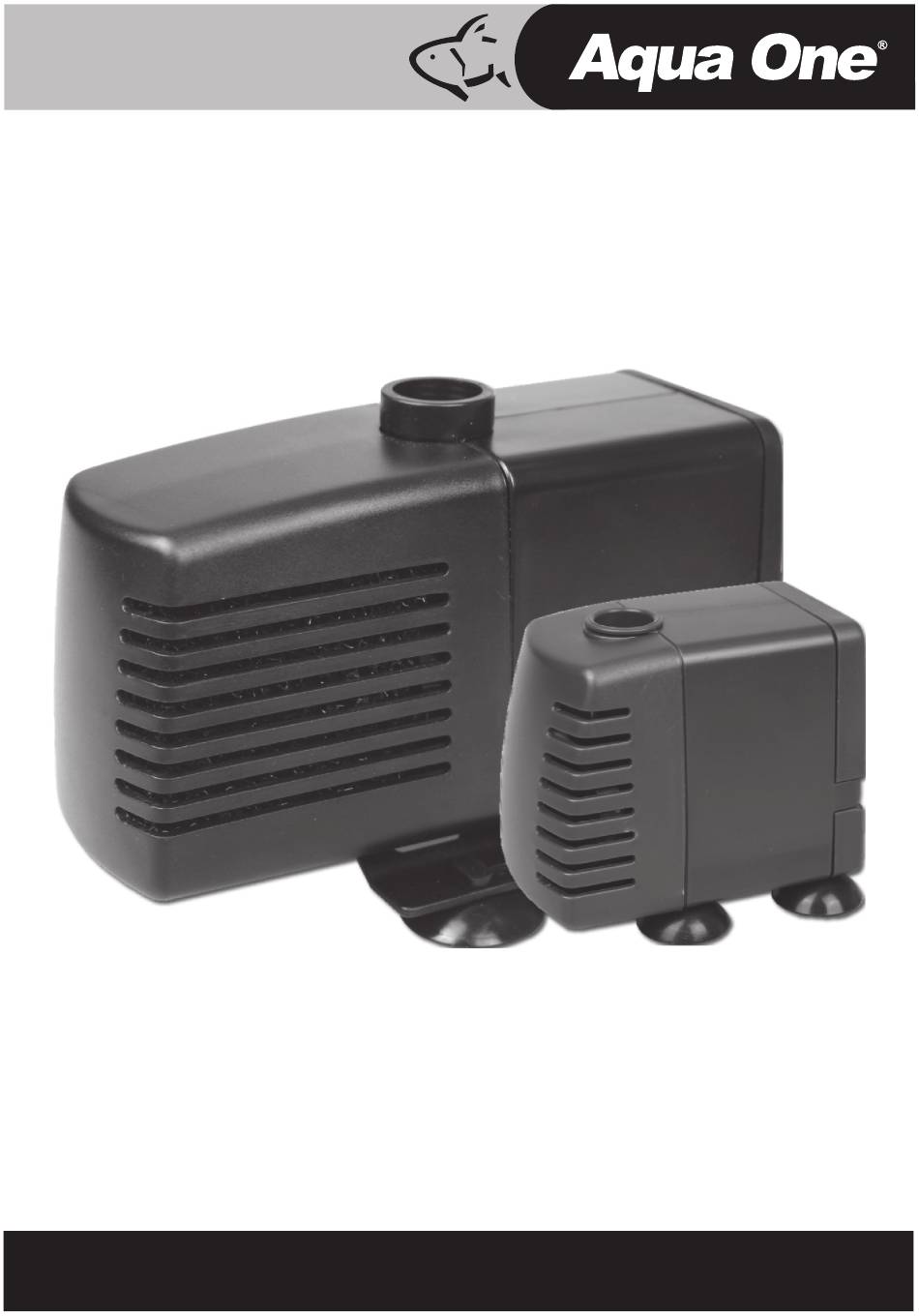

- Page 1 Moray Inspiring Excellence in Fish Keeping! Aquarium Pumps www.aquaone.com.au...
-
Page 2: Table Of Contents
Contents, Inhalt, Contenu, Inhoud Page Seiten Important Safeguards Wichtige Sicherheitshinweise Before First Use/Preparation Vor der ersten Benutzung/Vorbereitungen Know Your Pump: 360/480 Lernen Sie Ihre Pumpe kennen: 360/480 Know Your Pump: 1300 Lernen Sie Ihre Pumpe kennen: 1300 Know Your Pump: 2300-4900 Lernen Sie Ihre Pumpe kennen: 2300-4900 Installation: 360/480/1300 Installation: 360/480/1300... -
Page 3: Important Safeguards
Important Safeguards To guard against injury, basic safety precautions 8. Do not install or store the appliance where it will be should be observed, including the following: exposed to weather or temperatures below freezing. 9. Make sure any component mounted on a tank is securely installed before operating it. - Page 4 Replacement Parts & Filter Media Use Aqua One Genuine Spare Parts Only. See your local Aqua One Dealer and look for the number listed below for the spare part you require. Alternatively you will find these numbers on the silver label located on the product.
- Page 5 Know Your Pump: Moray 360/480 1. Motor 2. Venturi outlet 3. 12mm joiner 4. Duckbill 5. Hang bracket 6. Rubber end cap 7. Impeller 8. Shaft 9. Venturi adjuster and airline 10. Impeller cover/lock 11. Internal strainer 12. Uplift adapter 13.
- Page 6 Know Your Pump: Moray 1300 1. Motor 2. Hang bracket 3. Rubber end cap 4. Impeller 5. Ceramic shaft 6. Impeller cover /lock 7. Internal strainer 8. Uplift adapter 9. Sponge 10. Strainer 11. Venturi outlet 12. Barbed 19mm hose tail 13.
- Page 7 Know Your Pump: Moray 2300/3600/4900 1. Motor 2. Base 3. Rubber end cap 4. Impeller 5. Ceramic shaft 6. Impeller cover 7. Impeller lock 8. Internal strainer 9. Sponge 10. Strainer 11. Barbed 25mm hose tail (3600/4900) 12. Threaded reducer (3600/4900) 13.
- Page 8 Installation: 360/480/1300 The 360, 480 or 1300 series Morays can be mounted in They are also provided with multiple outlet options. 2 different ways and used for a variety of applications. All 3 models come with uplift pipe adapters enabling them to be used as an alternative to air driven systems on under gravel filters.
-
Page 9: Maintenance
Installation 2300-4900 Maintenance Before installation ensure the correct materials have If these pumps are being used in salt water, they must been prepared and the most suitable pump position has be checked regularly for buildup of calcium and other been selected. As with all water pumps, the greatest deposits. -
Page 10: Accessing The Impeller
Remove the rubber end caps and ceramic shaft and run clean water through the hole in the centre of the impeller. 7. Use an Aqua One double ended pipe brush to clean the impeller chamber thoroughly. (Where the impeller sits in the motor) 2300 - 4900 shown. -
Page 11: Specifications
Specifications Pump Model: Moray 360 Maximum Flow Rate: 600L\hr Maximum Head Height: 0.86m Power Requirements: 220 ~ 240V Power Consumption: 6.5W Suitable: Cold water, Tropical, Marine Pump Model: Moray 480 Maximum Flow Rate: 720L\hr Maximum Head Height: 0.96m Power Requirements: 220 ~ 240V Power Consumption: 8.5W Suitable: Cold water, Tropical, Marine Pump Model: Moray 1300... -
Page 12: Guarantee
1.0. Terms and Conditions of Guarantee. 1.1. Aqua One warrants to the purchaser, for 2 Years from date of original purchase, to repair or replace goods where fault is found due to defective materials or faulty workmanship and where goods do not operate in accordance with the instructions.
