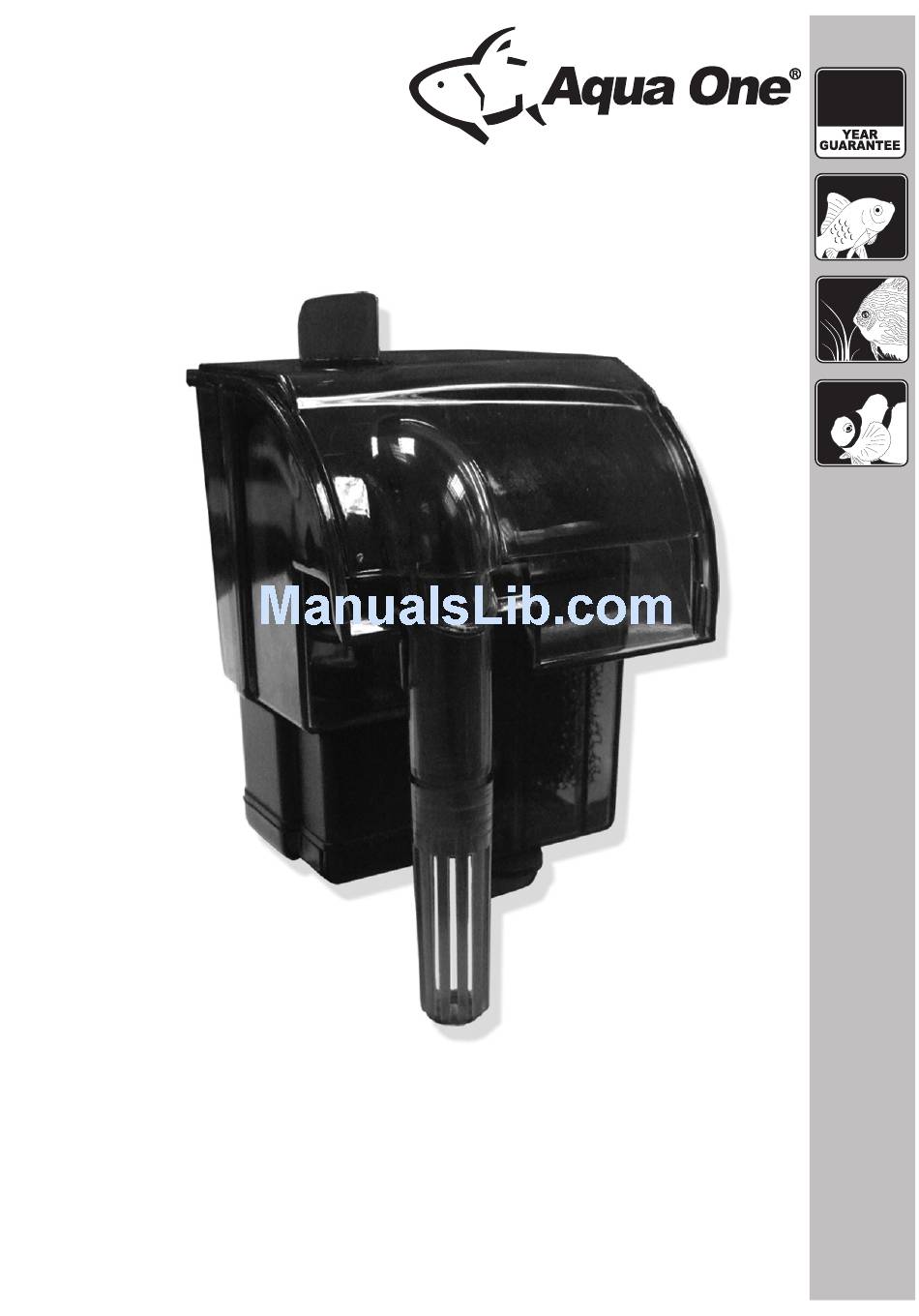

- Page 1 Cleaview 75, 100, 200, 280, 300, 500, 800 Coldwater Tropical Marine Instruction version: 19/03/2015 www.aquaone.com.au...
-
Page 2: Important Safeguards
Important Safeguards To guard against injury, basic safety precautions 8. Do not install or store the appliance where it will be should be observed, including the following: exposed to weather or temperatures below freezing. 9. Make sure any component mounted on a tank is securely installed before operating it. -
Page 3: Before First Use / Preparation
Use Aqua One Genuine Spare Parts Only. See Your attention is drawn particularly to the sections your local Aqua One Dealer and look for the concerning “IMPORTANT SAFEGUARDS” and the number listed below for the spare part you require. - Page 4 Know Your Filter 75 / 100 1. Dust Cover 1. Dust Cover 2. Carbon Cartridge 2. Carbon Cartridge 3. Flow Controller 3. Flow Controller 4. Sponge 4. Sponge 5. Inlet U-Pipe 5. Inlet U-Pipe 6. Filter Body 6. Filter Body 7.
- Page 5 Know Your Filter 200-800 1. Dust Cover 2. Flow Controller 3. Inlet U-Pipe 4. Carbon Cartridge 5. Biogrid 6. Extension Tube 7. Strainer 8. Filter body 9. Impeller 10. O-ring 11. Motor Clearview 200, 300, 500, 800...
-
Page 6: Installation
Installation Clearview 75-100 Clearview 200-800 1. Remove the filter lid to access the filter 1. Remove the filter dust cover to access the body. filter body. 2. Place the inlet u-pipe into position. The 2. Place the inlet u-pipe into position. The longer side of the pipe sits on the outside of longer side of the pipe sits on the outside of the filter body. -
Page 7: Maintenance
Maintenance 1 - 2 WEEKS 7. Put the impeller back in place then reconnect the motor to the filter body. 1. Turn off at the power supply. 8. Clean the inlet u-pipe and extension tube 2. Remove the dust cover. Slide the carbon with a double ended pipe brush then put back cartridge out of the filter. -
Page 8: Specifications
Specifications Model: Clearview 75 Model: Clearview 300 Maximum Flow Rate: 190L/hr Maximum Flow Rate: 300L/hr Max Aquarium Volume: 30L Max Aquarium Volume: 80L Power Requirements: 220 – 240V AC Power Requirements: 220 – 240V AC Power Consumption: 2.5W Power Consumption: 5.2W Suitable: Cold water, Tropical, Marine Suitable: Cold water, Tropical, Marine Model: Clearview 100... - Page 9 The Manufacturer or Distributor, of Aqua One goods, is collectively known herein as “Aqua One”. Please refer to contact details for Aqua One below or on the applicable Aqua One website. Any product that is covered by its own Guarantee (as enclosed with the product) is subject to the conditions of that Guarantee.
- Page 12 Inspiring Excellence in Fish Care!
