F@ST 2704R
Connection

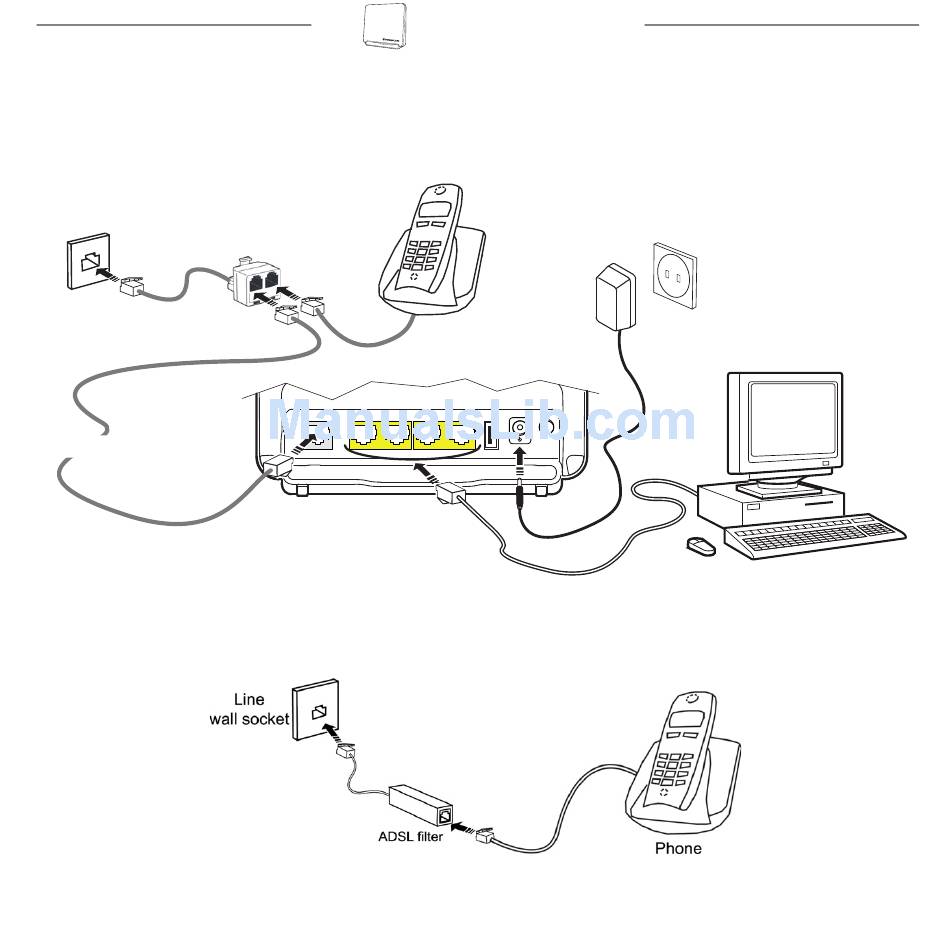

Connecting your router
Make the connections as shown in the diagram below.
Line
Mains
Phone set
wall socket
wall socket
Filter/Spitter
LINE
PHONE
Mains Adapter
with its lead
MODEM
PWR
ETH1
ETH2
ETH3
ETH4
Line cord
LINE
PWR
Connecting additional telephones
Make the connections as shown in this diagram.
13
