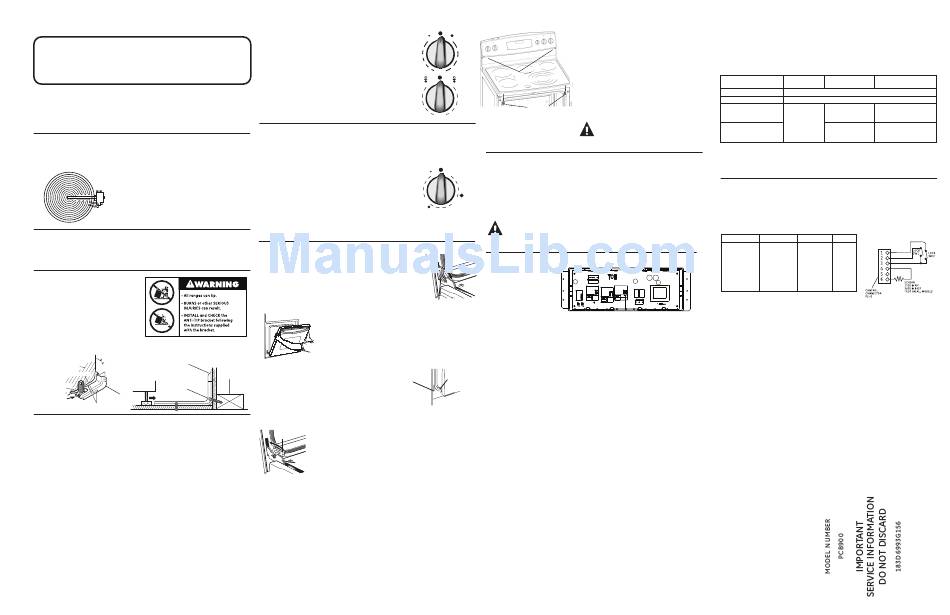

GEAppliances PC8900 Service Information

30" RADIANT FREE-STANDING RANGE
IMPORTANT SAFETY NOTICE: This information is intended for use by individuals
pos sess ing adequate backgrounds of electrical, elec tron ic and mechanical
experience. Any at tempt to repair a major ap pli ance may result in personal
injury and property damage. Neither the manufacturer nor the seller can be
responsible for the in ter pre ta tion of this information or assume any liability
in connection with its use.
DISCONNECT POWER BEFORE SERVICING
IMPORTANT: RECONNECT ALL GROUNDING DEVICES. All parts of this appliance
capable of conducting electrical current are grounded. If grounding wires, screws,
straps, clips, nuts or washers used to complete a path to ground are removed for
service, they must be returned to their original position and properly fastened.

RADIANT HEATING ELEMENT SYSTEMS

Heating Elements: The radiant heating element consists of a spiral-wound resistance
wire attached to microporous insulation with molded ceramic fiber walls in a corrosion-
protected metal tray.
The Heating Elements come in various sizes:
• 6" – 240 Volt, 1500 Watts
• 12" – 240 Volt, (1050, 1950, 3000 Watts)
(Triple 6", 9" and 12")
• Warmer – 240 Volt, 120 Watts
• 9" – 240 Volt, (1400, 3000 Watts)
(Double 6" and 9")

HOT SURFACE INDICATOR LIGHT

The Hot Surface Indicator Lights are now under the cooktop. The Hot Surface Indicator
Light will turn on when the surface unit switch is turned on. The Indicator Light will
remain on through an additional set of contacts on the limiter as long as the glass
temperature exceeds 150°F.
NOTE: Installation information is
for reference only. See Installation
Instructions shipped with the product
for complete details and before
attempting to install.
Brackets should be attached to the floor
and wall to hold either the right or left
rear leg leveler. Make sure the leg leveler
reengages the bracket when the range
is moved for any reason.
Attachment to Wall and Floor
Adjacent Cabinet
or Final Location of
Anti-Tip Device
Range Side Panel
Wall Holes
Wood Floor Holes
Screw Must
Anti-Tip
Enter Wood
Device Side
or Metal
Rear Leveling
Leg of Range
Concrete Floor Holes

TEMPERATURE LIMIT/HOT LIGHT SWITCH

The Temperature Limit/Hot Light Switch performs two functions:
1. Turns on HOT LIGHT when the Surface Unit Switch is turned on. The hot light will
remain on until the glass surface above the heating unit has cooled below 150°F
(even after the surface unit switch has been turned off).
2. Detects when the glass temperature above a unit has exceeded its limit
of approximately 1031°F and disconnects power to that unit. When the glass
temperature cools below 1031°F, the unit will turn back on. The temperature limit/hot
light switch cannot be calibrated.
SH. 1 OF 6

DUAL CIRCUIT CONTROL

The left-front element may have two cooking zones:
• To use the large cooking area or bridge, push to turn
the control knob clockwise to the desired setting.
• To use the small cooking area, push to turn the control
knob counterclockwise to the desired setting.
When a cooking zone is activated, coils beneath the zone
radiate heat through the glass cooktop to the utensil. The
red glow of the coils will be visible through the glass. It will
take the cooking zone on the glass surface a few moments
to heat up. The coil cycles on and off to maintain the
selected setting.

TRIPLE CIRCUIT CONTROL

The right-front element may have three cooking zones:
• To use the large cooking zone, push to turn the control
clockwise to the desired setting.
• To use the small cooking zone, push to turn the control
knob counterclockwise to the desired setting.
• To use the medium cooking zone, push to turn the control
knob clockwise or counterclockwise to the desired setting
between the large and small setting areas.
When a cooking zone is activated, coils beneath the zone
radiate heat through the glass cooktop to the utensil. The
red glow of the coils will be visible through the glass. It will
take the cooking zone on the glass surface a few moments
to heat up. The coil cycles on and off to maintain the
selected setting.

REMOVABLE OVEN DOOR

The door is very heavy. Be careful when removing.
and lifting the door. Do not lift the door by the handle.
To Remove:
1. Fully open the door .
2. Push the hinge locks down toward the door frame, to the unlocked
position. A tool, such as a small flat-blade screwdriver, may be required.
3. Firmly grasp both sides of the door at the top.
4. Close door to the door removal position, which is halfway
between the broil stop position and fully closed.
5. Lift door up until the hinge arm is clear of the slot.
Removal position
Wall
Bottom Edge
To Replace:
Plate
of Slot
1. Firmly grasp both sides of the door at
the top.
2. With the door at the same angle as the
removal position, seat the indentation of
the hinge arm into the bottom edge of the
hinge slot. The notch in the hinge arm must
be fully seated into the bottom of the slot.
Hinge
3. Fully open the door . If the door will not fully open,
Lock
the indentation is not seated correctly in the
bottom edge of the slot.
4. Push the hinge locks up against the front frame of
the oven cavity , to the locked position.
Hinge Arm
5. Close the oven door.
Push hinge locks up to lock

COOKTOP REMOVAL

To Remove:
M AX M AX
1. Disconnect power.
8
8
2. Remove the 2 screws securing the front
6
of the cooktop to the chassis.
6
4
3. Prop up the cooktop, and unplug the
4
2
M
IN 2
Hinge Pins connectors at the back by squeezing the side
tabs. Remove the screw securing the ground
M AX M AX wire.
8 8
4. Lift up the back end of the cooktop about
6 6
2 inches to unhook the hinge pins from the
Cooktop
4 4
brackets.
Mounting
2 2
M M
IN IN Screws 5. Reverse the process to reinstall.
cooktop too high can break the glass.

CONTROL PANEL ASSEMBLY REMOVAL

The control panel contains the ERC, infinite heat switches and membrane switch.
To service:
M M
AX IN
8 2
1. Remove the 2 screws (from bottom) securing the control panel assembly to the
5 5
backguard endplates.
2 8
2. Remove the 2 screws at the top, in the back of the range.
M M
IN AX
M
AX M IN
8 2 3. Pull out the bottom of the panel while lifting up the panel.
5
4. Lay the panel assembly on the cooking surface.
CAUTION:
Place a protective covering (such as a towel) between
the control panel and the cooking surface to avoid damage to the control panel.
Slot

ERC ACCESS

The Electronic Range
Control for the oven
system consists of
the control, key panel,
oven sensor, and door
lock assembly.
Hinge Lock
Pull hinge locks
down to unlock

KEY PANEL TEST

1. Touch each pad on the Key Panel.
2. If the Key Panel is functioning properly, the following should occur:
• Bake, Broil, Clean, Timer, Clock, Stop Time and Cook Time Modes – An audible
tone sounds and the display shows the mode of the operation selected.
• Clear/Off – An audible tone sounds and the display shows the time of day.
Hinge Arm
• Number pads can only be used after another function has been selected.
Indentation
NOTE: Mode and temperature selection is necessary for operation of relay contacts.
This model incorporates Double Line Break, meaning there is no voltage on the
elements when the control is in standby.
NOTE: Voltage must be present across terminals L1 to N for control to operate.
Terminals on ERC (element terms
are on tops of large relays)
1 L N -
L - 1 2 L
L - 1 A B E K
CAUTION:
L - 1 R B O L I
Raising the
*If not, check indicated element and harnessing.
**Relay is on only when calling for heat. 240VAC when not calling for heat; otherwise, check indicated element and wiring.

OVEN SENSOR AND DOOR SWITCH OHMMETER TEST

Remove power from oven. Make resistance measurement from side of sensor and lock
switch connector with exposed terminals.
CIRCUIT CONDITION
Oven Sensor Room Temp
Clean Temp
Unlatch Unlatched
Latch Latched
CONTROL VOLTAGE – ERC
Voltage, standby Voltage, Broil Voltage, Bake
(no relays energized) mode active mode active
2 1 V 0 C A i ( n f t o h , r a e n s s m y a e b a b ) d
4 2 V 0 C A i ( n f t o h , r a e n s s m y a e b a b ) d
4 2 V 0 C A m ( o e d c a v i t , e ~ V 0 C A w h n e a b e k e e l m e t n n o
bake relay off, DLB (if not, relay/ERC may be bad)**
relay on)*
~0VAC (if not, relay
may be bad)
~ V 0 C A w h n e r b l i o 4 2 V 0 C A m ( o e d c a v i t , e r b l i o
element on (if not, relay off, DLB relay on)*
relay/ERC may be bad)**
Oven Sensor/Lock Sw. Connector
TERMINALS OHMS
4 to 6 1100Ω
4 to 6 2650Ω
3 to 1 0Ω
2 to 3 Open
3 to 1 Open
2 to 3 0Ω
