www.divecochran.com
Cochran
EMC-16
Owner's Manual
English - Imperial
Ver: EMC16FO2-3.00
For your records, please fill in the following:
Serial Number: _________________________
Your Name: ____________________________
Your Contact: __________________________
______________________________________
______________________________________
Purchase Date: _________________________
Purchase Place: ________________________
Address: ______________________________
______________________________________
______________________________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMC-16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cochran EMC-16

Summary of Contents for Cochran EMC-16

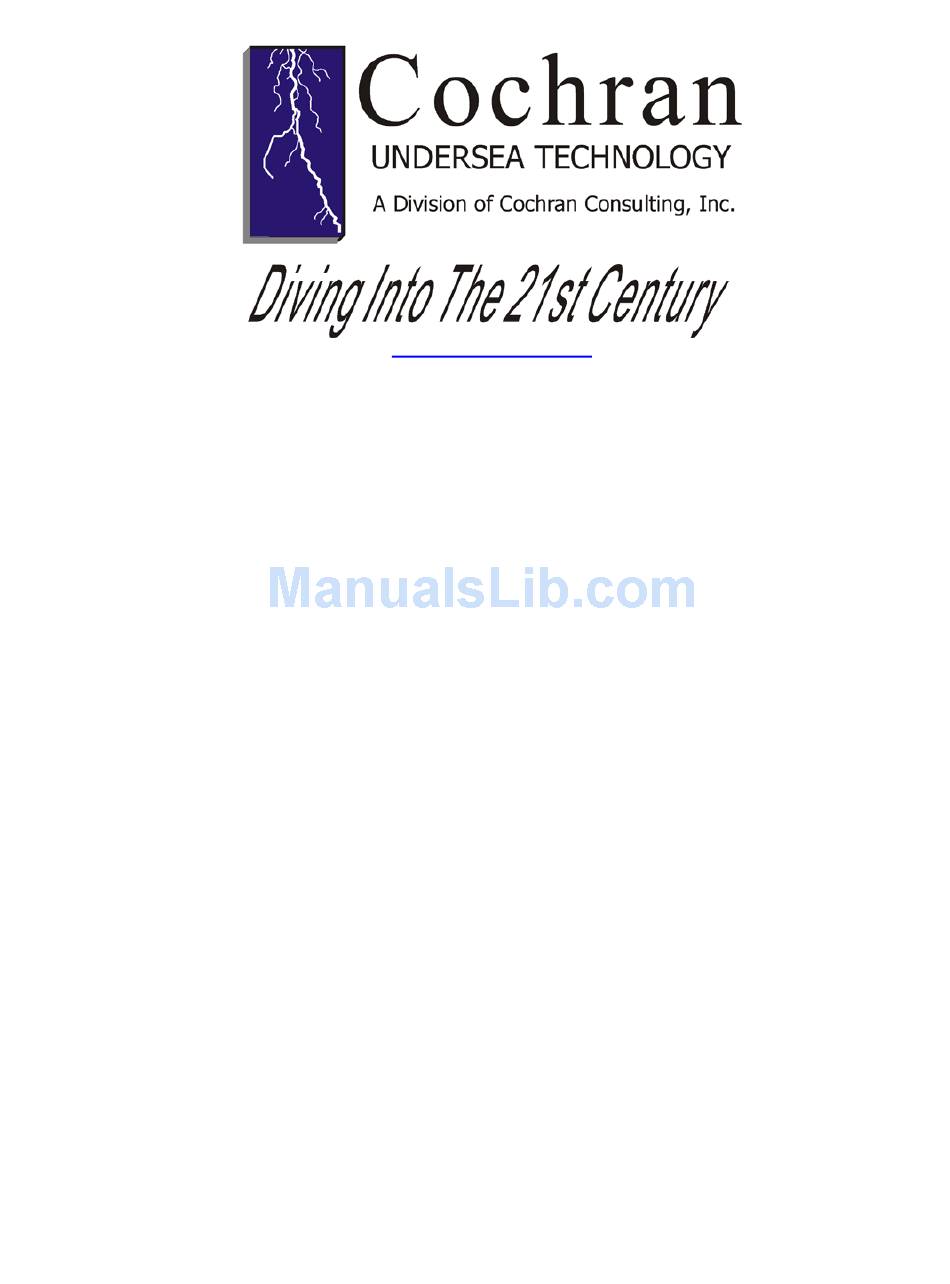

  • Page 1 Cochran EMC-16 Owner's Manual English - Imperial Ver: EMC16FO2-3.00 For your records, please fill in the following: Serial Number: _________________________ Your Name: ____________________________ Your Contact: __________________________ ______________________________________ ______________________________________ Purchase Date: _________________________ Purchase Place: ________________________ Address: ______________________________ ______________________________________ ______________________________________...
  • Page 3 Every time Contacts 1 & 2 are bridged with wet fingers, the unit will stay on for one full hour. The EMC-16 will not turn on if the altitude is greater than 16,000 feet or if the battery voltage is less than 2.0 volts, or a fault is detected during the self-test.
  • Page 4 There is no compensation above 75 degrees F. Pressure to determine Altitude. Barometric Altitude can vary from actual Bottom Time will begin once the EMC-16 senses that the diver has Altitude by over +/- 1000 feet! What is important to the body when diving descended below five feet (see Training Mode) and continues until the is “Barometric Altitude”.
  • Page 5 1-foot seas. In the Training Mode, on the EMC-16. the EMC-16 enters the Dive Mode at a depth of 2 feet instead of 5 feet and will exit the Dive Mode at 1 foot instead of 3 feet. Also the Post Dive If the diver surfaces before satisfying his decompression obligation, the ®...
  • Page 6 Clock mode it will display the time of day in a 24 hour day format. The clock will continue to run when the EMC-16 is in the Dive Computer Mode. The EMC-16 can be placed into the Clock Mode from the Dive Computer Mode when the unit is in the Normal Surface Interval, while the unit is in Clock Mode the Dive Computer will be in the “Sleep”...
  • Page 7 Contacts. During the PreDive Prediction Mode, the unit will compute and display the maximum safe time and the calculated PO value at that depth. The EMC-16’s PreDive Prediction starts at 30 feet and increases in 10 feet increments. PreDive Predictions will terminate...
  • Page 8 TOUCH PROGRAMMING - TACLITE™: The Taclite™ dwell (on) time can be set so that when the face on the EMC-16 is tapped the Taclite™ will stay on from 1 to 98 seconds. If the dwell time is programmed to ‘0’...
  • Page 9 The EMC-16 will track the OTU based on Dr. Bill Hamilton’s ‘REPEX’ The Maximum Depth will be replaced with “S-d“ or "S--" to indicate the low- method of oxygen exposure management.
  • Page 10 EMC-16 allows the diver to use two different gas blends during a dive. These two gas blends are commonly referred to as the Normal or Bottom Gas Blend and the Decompression Gas Blend.
  • Page 11 "99" the TACLITE™ will stay on all the time and only turn off when Selectable Variable-By-Depth Ascent Rate Alarm (On or Off): This the EMC-16 does. From the factory this is set to 10. This option may also option gives the diver the ability to utilize a fixed ascent rate warning or a be set via the Touch Contact Programming method.
  • Page 12 This option enables the Training Mode for the EMC-16. In this mode the EMC-16 will enter the Dive Mode at 2 feet instead of 5 feet and exit the Dive Mode at 1 foot instead of 3 feet. The Training Mode also permits the selection of an increased Post Dive Interval period from 10 to 30 minutes in one-minute increments.
  • Page 13 As the battery cap is screwed in, carefully observe that the double O-rings module and cable to maintain compliance with FCC Regulations. install correctly. It is best to have the new batteries ready to install since the EMC-16 was PATENT INFORMATION designed to allow for battery changes without resetting. This period of Protected under one or more Foreign or US patents.
  • Page 14 Should it be desired to initiate a dive PRIOR to completing the adaptation EXCLUSIVE AND IN LIEU OF ALL OTHERS, WHETHER ORAL OR time, the EMC-16 will treat this dive as a repetitive dive in its algorithm, WRITTEN, EXPRESSED OR IMPLIED. COCHRAN UNDERSEA taking into account the "residual"...
  • Page 15 METRIC/IMPERIAL MODES: If the computer is computing and displaying in Metric, the “METRIC” legend will be illuminated when the computer is ® on. Metric/Imperial selection is made using the Analyst software. Changing Modes does not affect any profiles or data stored in the computer.
  • Page 16 Central Nervous System Toxicity 29a Programming Mode - Constant FO Mode Oxygen Tolerance Units (OTU) - Setting Blend #2 Bottom Time EMC-16 - Two Gas Nitrox 30 Programming Mode - Constant FO Mode Gas Blend Switching Deco Depth Benchmark Menu...
  • Page 18 Cochran EMC-16 Owner's Manual English - Imperial Ver: EMC16FO2 - 3.00 1758 Firman Drive Richardson, Texas 75081, USA Phone 972-644-6284 972-644-6286 www.divecochran.com...
