Wiring The Control Part

Preliminary Steps
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Read and understand the instructions in Safety Information chapter before performing any procedure
in this chapter.
Failure to follow these instructions will result in death or serious injury.
UNINTENDED BEHAVIOR OF INPUTS AND OUTPUTS
The functions of the inputs and outputs depend on the selected operating mode and the settings of the
corresponding parameters.
Verify that the wiring is appropriate for the settings.
Only start the system if there are no persons or obstructions in the hazardous area.
When commissioning, carefully run tests for all operating states and potential error situations.
Failure to follow these instructions can result in death, serious injury, or equipment damage.

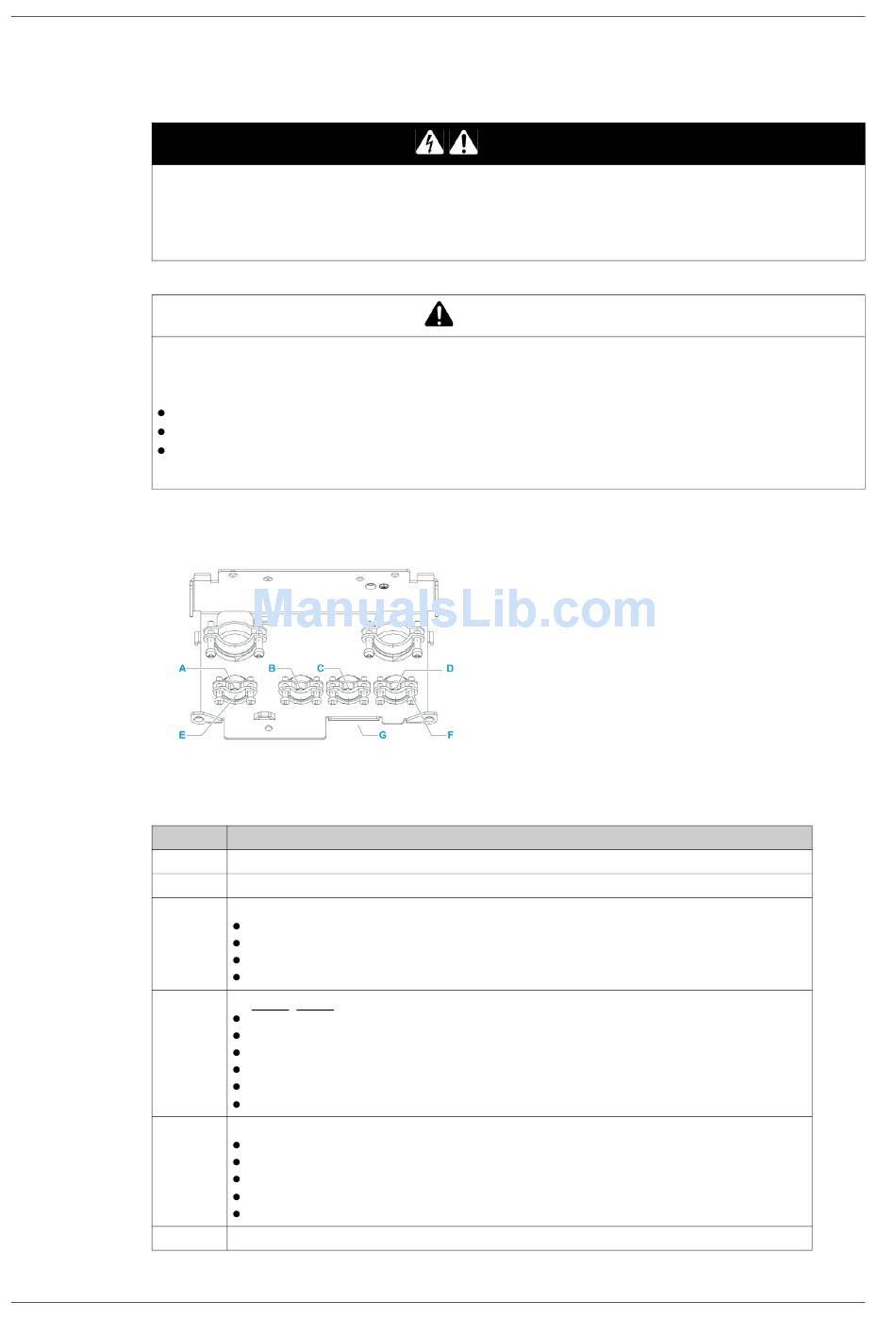

Cabling plate preparation
NOTE: Cabling plate shown is for frame size 3. Other cabling plates look slightly differs from this one.
Apply the following instructions before connecting the control cables to the drive
Step
90
Action
1 Unscrew the cable grommet (E) screws (D) if required
2 Insert in drilling (A) and (B) the option cables, such as communication modules.
3 Insert in drilling (C) the cable including the wires for the following terminals
P24
0V
DI1...DI6
24V
4 Insert in drilling (D) the cable including the wires for the following terminals
STOA, STOB
24V
COM
AO1, AO2
10 V
AI1...AI3
5 Location G is intended to receive the wires for the following terminals
R1A...R1C
R2A...R2C
R3A...R3C
RJ45
Other options
6 Screw back the cable grommet screws
DANGER
WARNING
EAV64301 01/2015
