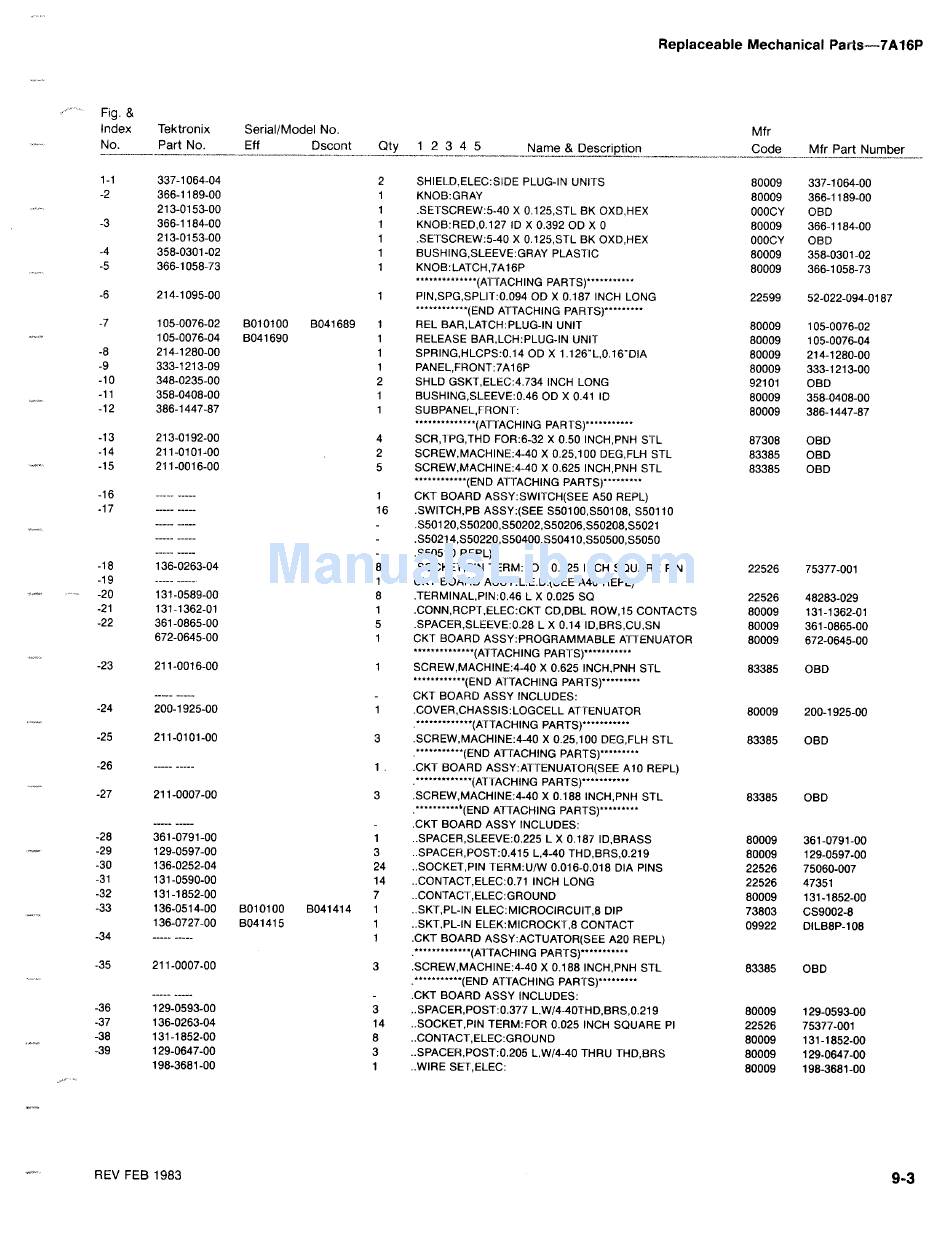

Tektronix 7A16P Instruction Manual page 194

R
E
V FEB 1983
R
eplaceable
M
echanical Parts-7 Α U Ρ
9- 3
F
ig . &
Index
No .
Tektronix
P
art No .ω.~
Serial/Model
E
ff
No .
Υ Dscont-..
Qt
y
1 2 3 4 .-
5
,_ .. Name .& .Description . .__
Mfr
Code .,
M
fr
P
art Number .-
1-1
337-1064-04 2 SHIELD,ELEC :SIDE PLUG-IN UNITS
80009 337-1064-00
-2
366-1189-00 1 KNOB :GRAY
80009 366-1189-00
213-0153-00 1 .S
E TSCREW :5-40 Χ 0.125,STL SK OXD,HEX
OOOCY OBD
-3 366-1184-00 1 KNOB :RED,0 .127 ID Χ 0.392 OD Χ 0
80009
366-1184-00
213-0153-00 1 .S
E, rsCREW :5-40 Χ 0.125,STL ΒΚ OXD,HEX
OOOCY OBD
-4
358-0301-02 1
BUSH
I
NG, SLEEVE : GRAY PLASTIC 80009
358-0301-02
-5 366-1058-73 1
KNOB : LΑΤCΗ,7Α16 Ρ
80009 366-1058-73
"'""""""(ATTACHING PARTS)""""""
-6 214-1095-00 1
PIN,SPG,SPLIT:0 .094 OD Χ 0.187 INCH LONG
22599 52-022-094-0187
'""""""(EN
D ATTACHING PARTS)""""'
-7
105-0076-02 Β010100 Β041689 1 REL BAR, L
ATCH : PLUG-IN UNIT
80009 105-0076-02
105-0076-04 Β041690 1 REL
E ASE BAR,LCH:PLUG- IN UNIT
80009 105-0076-04
-8 214-1280-00 1
SPRING,HLCPS :0 .14 OD Χ 1 .126"L,0 .16"DIA
80009 214-1280-00
-9 333-1213-09 1
PANEL, F RONT :7A16P
80009 333-1213-00
-10
348-0235-00 2
SHLD GSKT,ELEC:4 .734 INCH LONG 92101
OBD
-11
358-0408-00 1
BUSH ING,SLEEVE :0 .46 OD Χ 0.41 ID 80009
358-0408-00
-12
386-1447-87 1
SUBPANEL,FRONT:
80009 386-1447-87
""""'"". .(ATTACHING PARTS)"""'"""
-13 213-0192-00 4
SCR,TPG,THD
F
OR :6-32 Χ 0.50 INCH,PNH STL
87308 OBD
-14 211-0101-00 2
SCREW, MACH ΙΝΕ:4-40 Χ 0.25,100 DEG,FLH STL
83385 OBD
-15 211-0016-00
5 SCREW,MACHINE:4-40 Χ 0.625 INCH,PNH STL
83385 OBD
""""""(END ATTACHING
P
ARTS)""""'
-16
----- -----
1
CKT
B
OARD ASSY :SWITCH(SEE Α50
RE
PL
)
-17
----- -----
16 SWITCH,PB ASSY :(SEE S501 00,S50108, S50110
----- -----
- S50120,S50200,S50202,S50206,S50208,S5O2I
----- -----
- .S50214,S50220,S50400,S50410,S50500,S5050
----- -----
- .S50510 REPL)
-18 136-0263-04 8
.SOCKET',ΡΙΝ TERM :FOR 0.025 INCH SQUARE PIN
22526 75377-001
-19 ----- -----
1
CKT BOARD ASSY :L .E .D .(S
E
E Α40 REPL)
-20 131-0589-00 8
.TERM1NAL,PIN :0 .46 L Χ 0.025 SO
22526 48283-029
-21 131-1362-01 1
.CONN,RCP'Τ',ELEC :CKT CD,DBL ROW,15 CONTACTS
80009 131-1362-01
-22 361-0865-00 5
.SPACER,SLEEVE :0 .28 L Χ 0.14 ID,BRS,CU,SN
80009 361-0865-00
672-0645-00 1 CKT BOARD ASSY: PROGRAMMABLE ΑT
T
ENUATOR
80009 672-0645-00
""". ""' .(ATTACHING PARTS) . ... . .. . .. .
-23
211-0016-00 1
SCREW,MACHINE:4-40 Χ 0.625 INCH,PNH STL
83385 OBD
........' "'"(END ATTACHING PARTS).........
----- -----
- CKT
B
OARD ASSY INCLUDES :
-24
200-1925-00 1
.COVER,CHASSIS :L000ELL ATTENUATOR
80009 200-1925-00
...........( Α'TTACHING PARTS) ....... ....
-25 211-0101-00
3 .SCREW,MACHINE :4-40 Χ 0.25,100 DEG,FLH STL
83385 OBD
.........(END ATTACHING PARTS) ....... ..
-26
----- -----
1 .
CKT BOARD ΑSS Υ: ΑΤΤΕΝUΑΤΟR(SEE Α10 REPL)
........ ...( ΑΤΤΑ CΗΙΝG PARTS) ..... .... ..
-27 211-0007-00 3
.SCREW,MACHINE :4-40 Χ 0.188 INCH,PNH STL
83385 OBD
.... ....'(END ATTACHING PARTS)*********
----- -----
- CKT
B
OARD ASSY INCLUDES :
-28
361-0791-00 1 . .S PACER,SLEEVE: 0.225 L Χ 0.187 ID,BRASS
80009 361-0791-00
-29
129-0597-00 3 . .SPACER,POST :0 .415 L
,4-40 THD,BRS,0.219
80009 129-0597-00
-30
136-0252-04 24 . .SOCKET,PIN TERM :U/W 0.016-0 .018 DIA PINS
22526 75060-007
-31
131-0590-00 14 . .CONTACT,ELEC :0 .71 INCH LONG
22526
47351
-32
131-1852-00 7 . .CONTACT,ELEC :GROUND
80009 131-1852-00
-33 136-0514-00 Β010100 Β041414 1 . .SKT,PL-IN ELEC :MICROCIRCUIT,8 DIP
73803 CS9002-8
136-0727-00 Β041415 1 . .SKT,PL-IN ELEK :MICROCKT,8 CONTACT
09922 DILB8P-108
-34 ----- -----
1 CKT
B
OARD ASSY :ACTUATOR(SEE Α20 REPL)
...........(ATTAC
H
ING PARTS)... ........
-35
211-0007-00 3 SCREW,MACHINE :4-40 Χ 0.188 INCH,PNH STL
83385 OBD
.........(END ATTACHING
P
ARTS).........
----- -----
- CKT
B
OARD ASSY INCLUDES :
-36
129-0593-00 3 . . SPAC ER,POST : 0.377
L
,W/4-40THD,BRS,0 .219
80009 129-0593-00
-37
136-0263-04 14 . .SOCKET,PIN TERM :FOR 0.025 INCH SQUARE PI
22526
75377-001
-38
131-1852-00 8
. .CONTACT, ELEC :GROUND
80009 131-1852-00
-39
129-0647-00 3 . .SPACER, POST : 0.205
L
,W/4-40 THRU THD,BRS
80009 129-0647-00
198-3681-00 1 . .WIRE S
E
T,ELEC :
80009 198-3681-00
