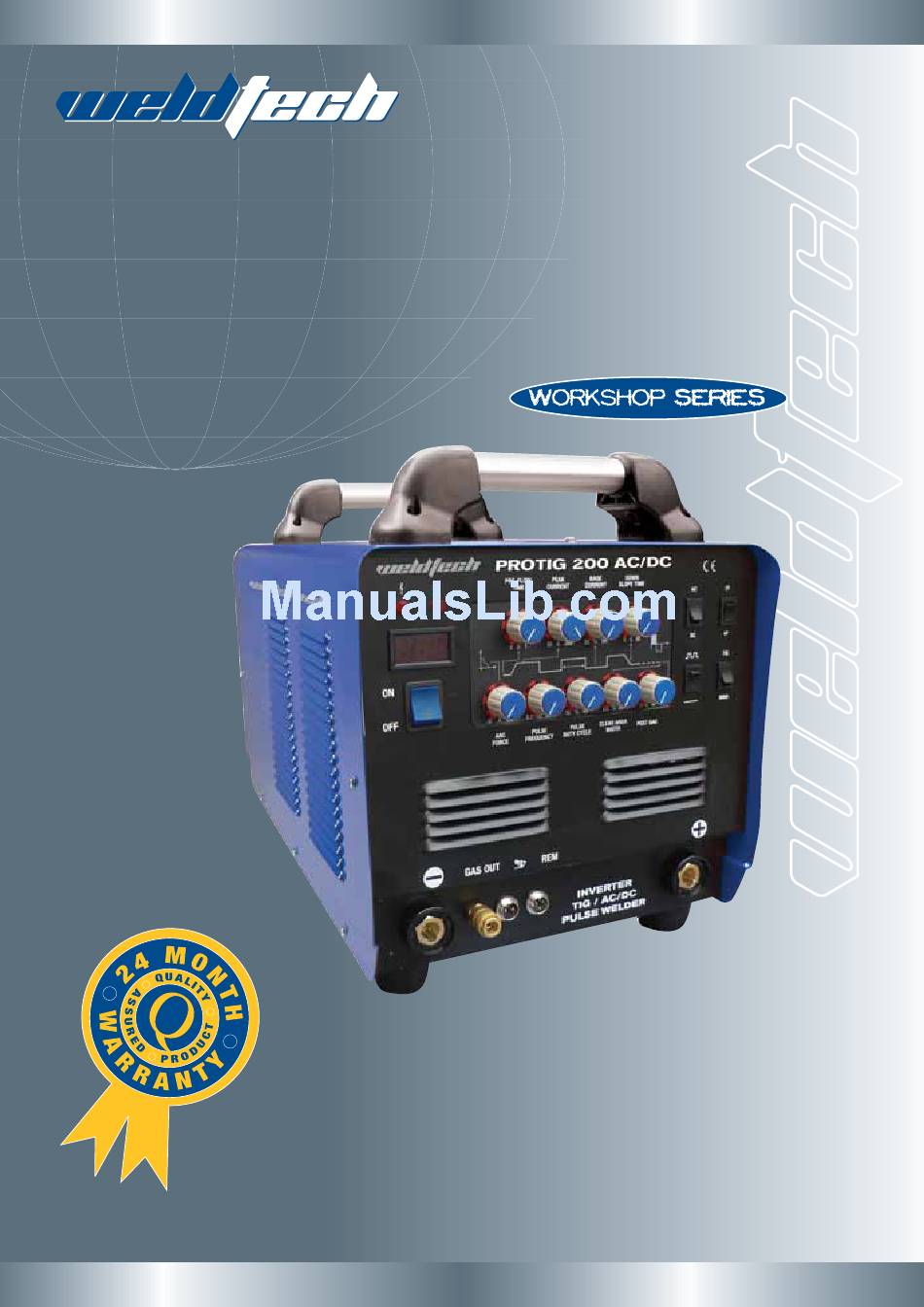

- Page 1 #BW-TIG200 ACDC 200A - INVERTER TIG/ARC AC/DC PULSE WELDER INSTRUCTION MANUAL PLEASE READ THIS MANUAL CAREFULLY BEFORE USING AND RETAIN FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
.......................................................... WARRANTY ....................................................................CONGRATULATIONS ON THE PURCHASE OF YOUR NEW WELDTECH BW-TIG200ACDC DIGITAL INVERTER 200 AMP TIG ACDC WELDING MACHINE. PLEASE ENSURE YOU HAVE FAMILIARISED YOURSELF WITH THE INSTRUCTIONAL DVD AND READ THE CONTENTS OF THIS MANUAL BEFORE USING YOUR MACHINE. -
Page 3: Safety Information
WARNING These carry important information. If unreadable Retain this manual for the safety warnings and PROTECT YOURSELF AND OTHERS FROM or missing, contact your nearest Weldtech Store precautions, assembly, operating, inspection, POSSIBLE SERIOUS INJURY OR DEATH. for a replacement. maintenance and cleaning procedures. Write the KEEP CHILDREN AWAY. - Page 4 PERSONAL SAFETY WORK ENVIRONMENT SAFETY ELECTRICITY CAN KILL CAUTION DANGER DANGER Keep the work area well lit. Make sure there Remove any combustible material from the work area. Touching live electrical parts can cause fatal is adequate space surrounding the work area. shocks or severe burns.
- Page 5 ARC RAYS CAN BURN EYES AND SKIN. DANGER Arc rays from the welding process produce intense heat and strong ultraviolet rays that can burn eyes and skin. Use the following table to select the appropriate shade number for a Welding Helmet or Welding Face Shield. 1.
- Page 6 FUMES AND GASES FIRE & EXPLOSIVE RISKS SPARKS & HOT METAL WARNING WARNING WARNING Welding produces fumes and gases. Breathing Sparks and spatter fly off from the welding arc. Chipping and grinding causes flying metal, and as these fumes and gases can be hazardous to your The flying sparks and hot metal, weld spatter, welds cool they can throw off slag.
-
Page 7: Overview
MMA Lead & Electrode Holder - 3m Work Lead & Clamp - 3m Argon Gas Regulator Gas Hose with clamps - 3m x 8mm Instruction Manual Instruction DVD If you have any questions, please contact your nearest local Weldtech store. -
Page 8: Know Your Welder
When reactive metals are exposed to air they form an oxide layer that KNOW YOUR WELDER insulates the base metal and prevents welding current flowing, it also contaminates the weld area. Reverse current flow is required to break through/ clean off this oxide layer so that welding can take place, while the current flow during the positive cycle does the majority of the heating of the weld pool area. -
Page 9: Consumables & Accessories
Electrodes 2.4mm General Purpose, 5kg These wearing torch consumables and the list of accessories following are all ETCPH6832 Electrodes 3.2mm General Purpose, 5kg available from your nearest Weldtech store. For all other spare parts and accessories, please contact your local Weldtech store. -
Page 10: Welder Installation
Connect the gas regulator to an argon gas cylinder (not included with WELDER INSTALLATION machine) and connect the gas hose from the regulator to the gas inlet on Electrical Connection the rear of the machine (25). Ensure all hose connections are tight. Open gas The BW-TIG200ACDC is designed to run on a standard 15A 230V AC power cylinder valve and adjust regulator, flow should be set between 5-15l/min for supply. -
Page 11: Mma Welding Guide
Flat Position, Down Hand Butt Weld (Fig 1-11) MMA WELDING GUIDE MMA (STICK) BASIC WELDING TECHNIQUES Size of Electrode The electrode size is determined by the thickness of metals being joined and can also be governed by the type of welding machine available. Small welding machines will only provide current (amperage) to run smaller sized electrodes. - Page 12 Joint Preparations Corner Weld (Fig 1-19g) In many cases, it will be possible to weld steel sections without any special preparation. For heavier sections and for repair work on castings, etc., it will be necessary to cut or grind an angle between the pieces being joined to ensure proper penetration of the weld metal and to produce sound joints.
- Page 13 Arc Welding Technique - A Word for Beginners Making Welded Joints For those who have not yet done any welding, the simplest way to commence Having attained some skill in the handling of an electrode, you will be ready to is to run beads on a piece of scrap plate.
- Page 14 B. Fillet Welds Multi Run Vertical Fillet Weld (Fig 1-26) These are welds of approximately triangular cross-section made by depositing metal in the corner of two faces meeting at right angles. Refer to Figure 1-14, 1-23 and 1-24. A piece of angle iron is a suitable specimen with which to begin, or two lengths of strip steel may be tacked together at right angles.
-
Page 15: Mma Welding Troubleshooting
MMA WELDING TROUBLESHOOTING Troubleshooting - MMA Weld Quality Fault Cause Remedy Welding current too low. Increase welding current. A gap is left by failure of the weld metal to Electrode too large for joint. Use smaller diameter electrode. fill the root of the weld. Insufficient gap. -
Page 16: Tig Welding Guide
Peak Current is the main welding current (amps) set to melt the material being TIG WELDING GUIDE welded and works much the same as setting maximum amperage values for TIG WELDING FUSION TECHNIQUE regular DC TIG: as a guide use 30-40 amps for every 1mm of material thickness. Manual TIG welding is often considered the most difficult of all the Base Current is the set level of background current (amps) which cools the welding processes. - Page 17 Thorium is a low-level radioactive hazard and many users have switched Electrode Tip/Flat to other alternatives. Thorium is an alpha emitter but when enclosed in a The shape of the tungsten electrode tip is an important process variable in tungsten matrix, the risks are negligible. precision arc welding.
-
Page 18: Tig Welding Troubleshooting
TIG WELDING TROUBLESHOOTING Troubleshooting - TIG Weld Quality Fault Cause Remedy Tungsten burning away quickly Incorrect gas Check that pure Argon is being used No gas Check the gas cylinder contains gas and is connected Check the gas is connected, check hoses, gas valve and torch are not Inadequate gas flow restricted. -
Page 19: Machine Care & Maintenance
This appliance is manufactured in accordance with relevant safety standards. Only experts must carry out repairing of electrical appliances, otherwise considerable danger for the user may result. Use only genuine replacement parts, which are available from your nearest Weldtech store. Do not use modified or non-genuine parts. -
Page 20: Warranty
WARRANTY DURATION: The manufacturer warrants that it will repair, at no charge for parts or labour, the Welding Machine, Welding Gun, or Cables, proven defective in material or workmanship, during the following time period after date of original retail purchase: For 1 Year: The entire Welder and Arc Leads WHO GIVES THIS WARRANTY (Warrantor): EUROQUIP...
