■ Ways to Communicate with the DR function

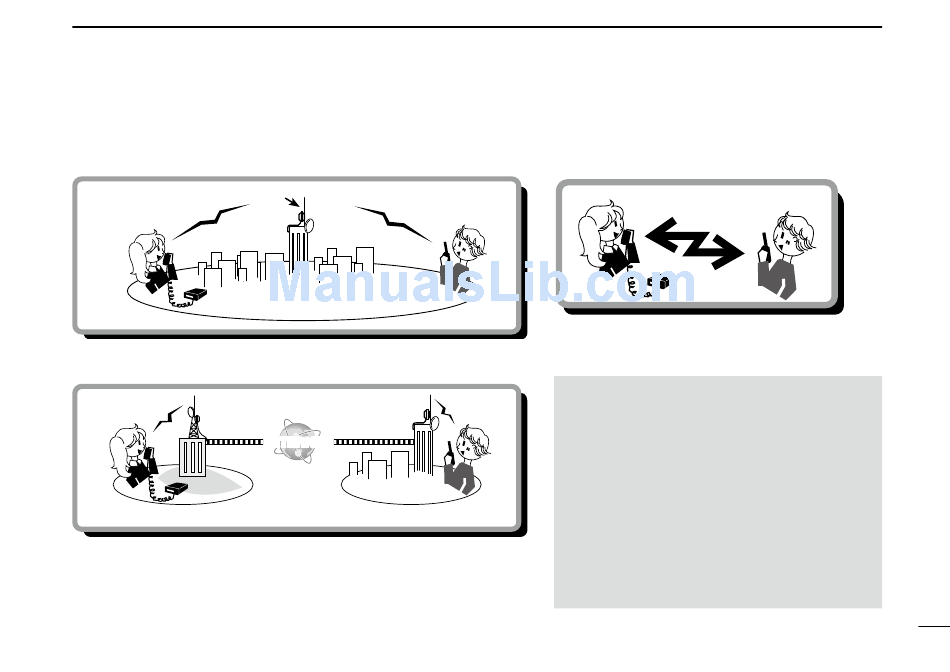

With the DR function, the transceiver has three ways to communicate, as shown below.
Access repeater
Local area call
To call through your local area (access) repeater.
Area 2
Gateway call
repeater
Area 2
To call through your local area (access) repeater, repeater gateway and
the internet to your destination repeater or individual station's last used
repeater, using call sign routing.
Area 1
repeater
Area 1
Area 3
INTERNET
repeater
INTERNET
Area 3
Simplex call
To call another station not using a repeater.
NOTE:
• Using the repeater list is required to use the DR
function. (p. 25)
• Before operating in the duplex mode, be sure to
check whether the repeater is busy, or not. If the
repeater is busy, wait until it is clear, or ask for a
"break" using a method acceptable to your local
procedures.
• The transceiver has a Time-Out Timer function
for DV operation. The timer limits a continuous
transmission. Warning beeps will sound
approximately 30 seconds before time-out and
then again immediately before time-out.
