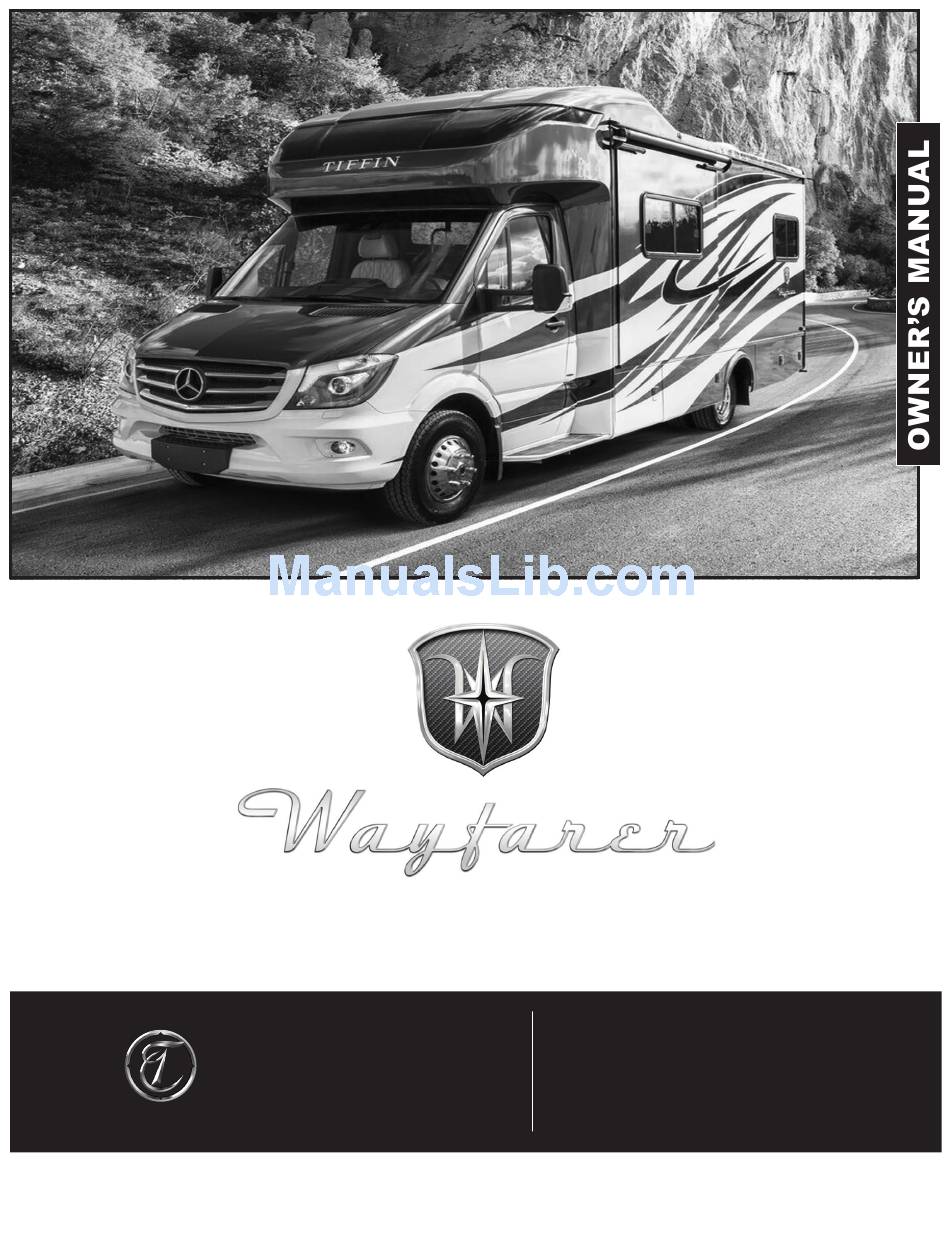

- Page 1 T I F F I N M A D E T O M O V E Y O U . M O T O R H O M E S TIFFIN MOTORHOMES, INC. 625 Fawn Grove Road | Winfield, AL 35594 205-487-4710...
- Page 2 2017 TIFFIN MOTORHOMES, INC. 625 Fawn Grove Road | Winfield, AL 35594 205-487-4710...
-
Page 3: Table Of Contents
ABOUT THIS MANUAL ………………………………………………………………………. 3 DELIVERY ………………………………………………………………………………………… 4 DEALER RESPONSIBILITIES ………………………………………………………………. 4 CUSTOMER RESPONSIBILITIES ……………………………………………………………. 4 TIFFIN MOTORHOMES LIMITED WARRANTY ……………………………………. 5 MAJOR EQUIPMENT MANUFACTURERS …………………………………………….. 5 WARRANTY SERVICE ………………………………………………………………………… 6 OWNER’S INFORMATION PACKAGE …………………………………………………. 6 CUSTOMER RELATIONS ……………………………………………………………………. 6 SPECIFICATION LABELS ……………………………………………………………………... - Page 4 TABLE OF CONTENTS LP DISTRIBUTION SYSTEM ………………………………………………………………….. 17 RECOMMENDED PRACTICES ……………………………………………………………….. 18 CARBON MONOXIDE WARNING …………………………………………………………... 19 CO/ LP DETECTOR …………………………………………………………………………………. 19 FIRE SAFETY ………………………………………………………………………………………….. 21 FIRE EXTINGUISHER ……………………………………………………………………………….. 22 SMOKE DETECTOR ………………………………………………………………………………….. 23 ELECTRICAL …………………………………………………………………………………………….. 23 LOADING …………………………………………………………………………………………………. 23 MAINTENANCE ………………………………………………………………………………………….
- Page 5 TABLE OF CONTENTS 5 MAJOR APPLIANCES LP/ GAS REFRIGERATOR …………………………………………………………………………. 37 MICROWAVE OVEN ………………………………………………………………………………… 38 COOK TOP ……………………………………………………………………………………………….. 38 WATER HEATER ………………………………………………………………………………………… 40 WATER HEATER STORAGE …………………………………………………………………………. 42 PRESSURE RELIEF VALVE ……………………………………………………………………………. 43 6 ENTERTAINMENT TELEVISION SETS ………………………………………………………………………………………. 45 DVD PLAYER ……………………………………………………………………………………………… 45 7 CABINETS &...
- Page 6 TABLE OF CONTENTS ELECTRICAL FEATURES CONVERTER/INVERTER ……………………………………………………………………………….. 59 ELECTRICAL GENERATOR ……………………………………………………………………………… 60 AUTOMATIC TRANSFER SWITCH …………………………………………………………………... 61 CIRCUIT BREAKERS ……………………………………………………………………………………….. 62 FUSE BREAKERS ……………………………………………………………………………………………. 62 SEVEN-PIN TOWING CONNECTOR …………………………………………………………………. 62 10 SLIDE-OUT FEATURES GENERAL CONSIDERATIONS …………………………………………………………………………. 65 OPERATING PRECAUTIONS …………………………………………………………………………… 66 EXTENDING THE SLIDE-OUT …………………………………………………………………………..
- Page 7 TABLE OF CONTENTS 13 PLUMBING & BATH FEATURES MONITOR PANEL ………………………………………………………………………………………. 78 KITCHEN SINK …………………………………………………………………………………………… 78 BATH, SINK, SHOWER & ACCESSORIES ………………………………………………………. 79 WATER PUMP ……………………………………………………………………………………………. 79 CITY WATER CONNECTIONS ……………………………………………………………………….. 80 FILLING FRESHWATER TANK …………………………………………………………………………. 81 SANITIZING ………………………………………………………………………………………………… 81 WATER FILTER ……………………………………………………………………………………………..
- Page 8 TABLE OF CONTENTS VENTS ………………………………………………………………………………………………………… 90 DOORS ……………………………………………………………………………………………………….. 91 15 DRIVING YOUR MOTORHOME SINGLE VISION CAMERA MONITOR SYSTEM ……………………………………………….. 93 AM /FM / CD STEREO SYSTEM ……………………………………………………………………… 93 DASHBOARD HEATING / COOLING CONTROLS ……………………………………………… 94 16 ROUTINE MAINTENANCE WASHING …………………………………………………………………………………………………….. 96 SEALS …………………………………………………………………………………………………………….
- Page 9 TABLE OF CONTENTS CONDENSATION ……………………………………………………………………………………… 120 ROUTINE MAINTENANCE SCHEDULES ……………………………………………………… 120 WINTERIZING …………………………………………………………………………………………… 122 DE-WINTERIZING ………………………………………………………………………………………. 123 17 MAINTENANCE & DATA CHART RV OWNER’S DATA SHEET …………………………………………………………………………. 125 RV OWNER’S MAINTENANCE RECORD ……………………………………………………….. 126...
-
Page 10: General Information
GENERAL INFORMATION CHAPTER... - Page 11 T I F F I N M A D E T O M O V E Y O U . M O T O R H O M E S Copyright © by Tiffin Motorhomes, Inc. - all rights reserved Tiffin Motorhomes, Inc. ©...
-
Page 12: Welcome
Tiffin Motorhomes beyond the standard written warranty. The descriptions, illustrations, and specifications in this manual were correct at the time of printing and Tiffin Motorhomes reserves the right to change specifications or design without notice, and without incurring obligation to install the same on products previously manufactured. -
Page 13: Delivery
DELIVERY Throughout the entire manufacturing process, your Tiffin motorhome has been regularly inspected by our qualified personnel to assure you of the finest product of the highest quality, without exception. However, the final inspection at our factory is not to be the last one. The pre-delivery inspection and system check that your dealer performs are the final inspections done to your particular motorhome prior to you actually receiving your new Wayfarer motorhome. -
Page 14: Customer Responsibilities
Should you need or desire an additional copy or other information, please contact: Tiffin Motorhomes, Inc. 625 Fawn Grove Rd. Winfield, Alabama 35594 Tiffin Motorhomes will be pleased to send you an additional copy or any other information requested, as may be warranted. -
Page 15: Major Equipment Manufacturers
(basic warranty: 12 months or 12,000 miles). Any service work performed after the expiration of the Tiffin Motorhomes warranties WILL NOT be covered by those warranties. Exceptions may be made, on an individual basis, to this deadline on account of the unavailability of parts and/or service appointment time where work is to be performed. -
Page 16: Customer Relations
If you wish to schedule maintenance or service or wish to order parts, you should notify your local authorized Tiffin Motorhomes dealership to set up an appointment. If you are unsure of the location of your nearest authorized Tiffin Motorhomes dealership, please access the Tiffin Motorhomes website at www.tiffinmotorhomes.com and then click on the “Locate Dealer”... -
Page 17: Weight Procedures
GENERAL INFORMATION An indication of the contents of the motorhome weight label affixed to the motorhome. A concise explanation of the following items: Vehicle Weight (VW) distribution and Proper weighing techniques to be used to weigh the vehicle. ... -
Page 18: Weight Distribution
GENERAL INFORMATION Second, drive the motorhome so that the front wheels are off the scales and only the rear wheels remain on the scales; this provides the total weight of the vehicle, save for the front axle. This weight should not exceed the total rating of the axles remaining on the scales. The front axle weight is determined by subtracting the weight from the GVW that was obtained in the first step which was performed earlier. -
Page 19: Safety Instructions
SAFETY INSTRUCTIONS CHAPTER... -
Page 20: Safety Considerations
SAFETY SAFETY CONSIDERATIONS Prior to using your motorhome, especially for the first time or after a long period of non-use, please read thoroughly all the instructions in the Owner’s Manual and the chassis-manufacturer’s manual before attempting to operate your motorhome. There are several safety considerations which you should realize and follow while your Wayfarer is in motion. - Page 21 SAFETY YOUR PRE-DEPATURE CHECKLIST For your continued safety and convenience, the following is a representative “check list” designed to assure your safety while driving: √Clean all windows, mirrors, and light lenses (front, back, side) to assure that you can “see” and “be seen.”...
-
Page 22: Driving Safety
SAFETY DRIVING SAFETY Figure 2-1: Driver’s side dashboard and instrument console. Various adjustments need to be made to assure the driver’s comfort and the safety of the motorhome before starting and moving the motorhome; these include: Do not attempt to adjust the ... -
Page 23: Fuels For The Motorhome
SAFETY FUELS FOR THE MOTORHOME Your motorhome is designed to use diesel only for the engine used in the routine operation of the motorhome—these require prudent and safe handling to assure safety of the motorhome and its occupants; namely: Anytime the motor fuel or the LP tank is to be ... -
Page 24: Liquid Propane
SAFETY LIQUID PROPANE (LP) GAS SYSTEM Check the propane gas system for leaks yearly or as necessary. If you smell gas within the motorhome, quickly perform the following: IF YOU SMELL PROPANE Extinguish any open flames, pilot lights and all smoking materials. ... - Page 25 SAFETY Any overfilling of the LP gas container(s) can result in uncontrolled gas flow—a prime condition for a fire or explosion. The LP container should only be filled to 80 percent of its capacity; the remainder of the cylinder space is an air space to contain expansion of that liquid when subjected to varying ambient-temperature conditions.
-
Page 26: Lp Gas Regulator
SAFETY LP GAS REGULATOR The LP gas regulator (Figure 2-4) is the most critical element of the LP-gas distribution system. The regulator converts the high-pressure LP gas from the tank into a reduced-pressure LP-gas supply suitable for use in the various appliances in the motorhome. -
Page 27: Recommended Practices
SAFETY If any of the gas lines break, do not attempt to splice them—always run new lines to maintain the safety of the motor home. It is strongly recommended that only qualified service technicians perform this work. Remember, the main valve at the LP gas tank must be closed whenever any gas appliance is to be installed, removed, or serviced—this process prevents LP gas leakage which could result in a possible harmful explosion. -
Page 28: Carbon Monoxide Warning
SAFETY CARBON MONOXIDE WARNING A properly maintained engine exhaust and ventilation system is the best way to protect against carbon monoxide’s entry into the vehicle. We recommend that the exhaust system and body be inspected by a qualified motorhome service center: Each time the vehicle is serviced for an oil change. - Page 29 SAFETY then close the main valve to the LP tank and turn “off” all gas appliances and then take the motorhome to a qualified service technician after the ventilation process is concluded and the doors and windows again shut. This single compact system provides a powerful combined alarm that detects both Carbon Monoxide (CO) and explosive gases Propane (LPG) and Methane (Natural Gas).
-
Page 30: Fire Safety
As with any enclosed system containing the three required conditions for fire (i.e., combustible materials, oxygen, ignition sources), there will exist the possibility of fire. Tiffin Motorhomes has taken every precaution and design practice to minimize or negate this possibility, but the final determination rests with the owner and user of the motorhome. -
Page 31: Fire Extinguisher
SAFETY FIRE EXTINGUISHER Figure 2-6: Fire Extinguisher The Wayfarer is equipped with a fire extinguisher located in the entrance door stairwell (Figure 2-6 ) The extinguisher is rated for both Class B (i.e., grease, gasoline, diesel fuel, flammable liquids) and Class C (i.e., electrical) services. Read and understand the accompanying owner’s manual on that extinguisher (found in your Owner’s Information Package) and remember the location of the extinguisher. -
Page 32: Smoke Detector
SAFETY SMOKE DETECTOR The Wayfarer motorhome is equipped with a battery- operated smoke detector (Figure 2-7) located on the ceiling in the living area of the motorhome. The smoke detector should be tested on a weekly basis, before each trip, and after any period of storage of the motorhome. -
Page 33: Maintenance
SAFETY pans on the range, or free-standing furniture can become dangerous projectiles during a sudden stop. Be aware of GVWR, GAWR, and individual load limit on each tire or set of duals. Never load the motorhome in excess of the gross vehicle weight rating or the gross axle ... -
Page 34: Parking Procedures
SAFETY PARKING PROCEDURES To park the motorhome in any unfamiliar terrain, examine the site for surface irregularities, slopes or inclines, and other items such as stumps, rocks, external connections for power/water/sewage and also examine the area immediately above the parking site for obstructions like tree branches and limbs, signs, overhead wiring. - Page 35 Any vehicles to be towed by the motorhome should have adequate active braking. The wiring connector provided is a standard seven-pin connector. Tiffin Motorhomes does not recommend using any type of hydraulic towing lift that attaches to the rear of the motorhome designed to carry motorcycles, scooters, golf carts, etc.
-
Page 36: Heating & Air Conditioning
HEATING & AIR CONDITIONING CHAPTER... -
Page 37: Furnace
HEATING AND AIR CONDITIONING FURNANCE The Wayfarer is equipped with a forced-air furnace fueled by LP gas. The furnace is controlled by the wall-mounted thermostats (Figure 3-1) located inside the motorhome. These thermostats control both the heating and air conditioning for the motorhome. In the gas heating mode, the furnace heats air which, in turn, is circulated through ductwork in the floor of the motorhome. -
Page 38: Air Conditioning System
HEATING AND AIR CONDITIONING On a regular basis, thoroughly clean the complete furnace and air-tube passageways to remove dust, lint, and any other possible obstructions. Leak-test the entire LP gas system at least annually. Also check and clean the air-blower system annually. Any access hatches to the furnace are for authorized service personnel only, as there are no user- serviceable parts on the furnace. -
Page 39: Thermostat Controls
HEATING & AIR CONDITIONING The air-conditioned, cooled air is emitted through “chill grill” vents which are located in the center of the coach. The return air vents have a filter that prevents dust from flowing back through the air conditioning system. The return filters can be easily removed and cleaned with warm water and a mild cleaning solution. -
Page 40: Heat Pump Controls
HEATING & AIR CONDITIONING HEAT PUMP CONTROLS To activate the heat optional pump, set the thermostat to ELEC HEAT and select desired temperature. NOTE: If the setting on the thermostat and the room temperature are more than five degrees apart, the gas furnace will automatically turn ON with the heat pump. -
Page 41: Lp Gas System
LP GAS SYSTEM CHAPTER... -
Page 42: Liquid Propane (Lp) Tank
LP GAS SYSTEM LIQUID PROPANE (LP) TANK Figure 4-1: LP Tank The Wayfarer is equipped with an ASME (American Society of Mechanical Engineers)- approved LP tank (Figure 4-1) which is equipped with an automatic pressure regulator. This tank contains liquid petroleum fuel under high pressure. -
Page 43: Lp Tank Filling Practices
LP GAS SYSTEM LP TANK FILLING PRACTICES Any LP gas tank associated with the motorhome should never be filled to more than 80 percent of total capacity. Filling should always be done only when the motorhome is leveled. If the motorhome is not level, the tank may be overfilled (i.e., more than 80 percent of capacity) and, thus, subject the motorhome to possible fire or explosion from resultant uncontrolled gas flows. - Page 44 LP GAS SYSTEM...
-
Page 45: Major Appliances
MAJOR APPLIANCES CHAPTER... -
Page 46: Lp/Gas Refrigerator
APPLIANCES & ACCESSIORIES LP/GAS REFRIGERATOR Your coach may be equipped with a standard LP/gas refrigerator. When this refrigerator is in the “LP gas” mode, make sure that the main LP gas valve is in the “on” position before attempting to start the refrigerator. -
Page 47: Microwave Oven
APPLIANCES & ACCESSORIES MICROWAVE OVEN The Wayfarer contains either a microwave oven or an optional convection microwave (Figure 5-2). All microwave ranges operate on 120-volt AC electrical power, supplied either by the external electrical hookup or by the onboard electrical generator in the motorhome. - Page 48 APPLIANCES & ACCESSORIES If the burner does not start after a few attempts, discontinue the process, let the released gas dissipate, then try the process again. The burner knobs operate in a CCW manner and must be gently pushed inwards as they are being turned. Never use the cook top when the motorhome is in motion. It is wise to have a qualified service technician periodically check the entire LP-gas distribution system in the motorhome.
-
Page 49: Waterheater
APPLIANCES & ACCESSORIES WATERHEATER Before the water heater is to be used, fill the fresh water system and purge the water lines to and from the water heater by opening all the hot-water faucets until water steadily flows from each one and no “spurting”... - Page 50 APPLIANCES & ACCESSORIES NOTE: When you turn “on” the switch for the water heater the middle red button will light up. It will go off after several seconds—this means the water heater is lit. However, if the light stays illuminated, then that means the water heater has not ignited.
-
Page 51: Water Heater Storage
APPLIANCES & ACCESSORIES 6. Both the electrical and gas operations of the water heater may be used simultaneously to reduce recovery time of heating water up to desired temperature. For general maintenance of the water heater or specific information about select steps in operating the water heater, please refer to the owner’s manual for this appliance contained in the Owner’s Information Package. -
Page 52: Pressure Relief Valve
APPLIANCES & ACCESSORIES PRESSURE RELIEF VALVE The relief valve for over-pressure and over-temperature conditions is located on the exterior of the water heater. This valve will operate if the water temperature reaches or exceeds 210°F or if the water pressure reaches or exceeds 150 psig. Since the water system in the motorhome is a closed system when all water valves are shut, the water-heating cycle can raise the temperature and, consequently, the pressure, of the water in the water heater;... -
Page 53: Entertainment
ENTERTAINMENT CHAPTER... -
Page 54: Television Sets
Entertainment TELEVISION SYSTEM OPERATION TELEVISION SETS To change the mode of your television, press “INPUT” on your remote control. Then select TV, DVD. (Prep for Satellite Only) All units come ready for DVD. If satellite is desired after purchase an additional short HDMI cable. - Page 55 Entertainment Tripod hookup allows a mobile satellite to be added instead of the standard dome Winegard satellite prewire located on the roof of the motorhome. Figure: 6-2 Cable And Antenna Booster Figure: 6-3 Tripod Hookup...
-
Page 56: Cabinets & Furniture
CABINETS & FURNITURE CHAPTER... -
Page 57: Cabinets
(e.g., cereal boxes, condiments, canned goods, bottled liquids) normally taken on travel trips. Based on Tiffin Motorhomes’ extensive experience with travel requirements of the seasoned motorhome users and from Tiffin Motorhomes’ own research and development in cabinet-design requirements, the cabinets offer the greatest storage capacity possible. In the bathroom and bedroom, additional cabinets are available for storage of sundries and toiletries specific to these areas. - Page 58 CABINETS & FURNITURE CABINETS & FURNITURE damp cloth moistened with the liquid cleaner stand directly on top of that residue for 15-30 minutes to loosen the residue, then clean that spot accordingly. damp cloth moistened with the liquid cleaner stand directly on top of that residue for 15-30 minutes to loosen the residue, then clean that spot accordingly.
-
Page 59: Furniture
CABINETS & FURNITURE FURNITURE KITCHEN, LIVING & DINING AREAS Figure7-3: Sofa Booth On the Wayfarer floor plan, a built in dinette booth or sofa are available. sofa are available. The dinette provides additional storage under the seat area, in addition to providing additional sleeping facilities. -
Page 60: Bedroom Area
CABINETS & FURNITURE BEDROOM AREA If a décor-coordinated, quilted bedspread with accessorized pillow shams and accent pillow(s) (Figure 7- 5) are included with the bedroom suit, it is recommended that the bedspread be only dry-cleaned to preserve the quality of the bedspread for the longest time possible. Figure 7-6: Bedroom Decor... -
Page 61: Structural Features
STRUCTURAL FEATURES CHAPTER... -
Page 62: Chassis Features
STRUCTURAL FEATURES CHASSIS FEATURES The chassis of your Tiffin Motorhomes Wayfarer was built by and is warranted by Mercedes Motors. The operating instructions for that chassis are included in the Chassis Owner’s Manual which is provided with your Wayfarer and is a part of the Owner’s Information Package furnished to you by your Tiffin Motorhomes dealership. -
Page 63: Electrical Features
ELECTRICAL FEATURES CHAPTER... -
Page 64: General Information
ELECTRICAL FEATURES GENERAL INFORMATION There are two electrical systems in your Wayfarer motorhome. These are the 12-volt DC (VDC) system and the 120-volt AC (VAC) system. Most standard appliances require the 120-VAC system, while the majority of the lighting systems used in the Wayfarer use the 12-VDC electrical system. The electrical power for the 12 VDC system is supplied by the batteries of the Wayfarer. -
Page 65: Circuit Breaker Boxes
Please consult an authorized Tiffin Motorhomes Dealership or Tiffin Motorhomes to determine whether any changes you desire are appropriate and acceptable. Tiffin Motorhomes’ qualified staff of electricians can readily determine whether any changes sought (e.gradio, amateur radio, satellite television receiver, personal computer system, and the like) are possible or not and can advise you on how best to realize these enhancements. -
Page 66: Battery Inspection And Care
ELECTRICAL FEATURES Please note that the 12 VDC fuses and breakers are located in a separate compartment adjoining the 120 VAC breakers. Fusing is provided for the following 12 VDC CIRCUITS: Refrigerator power, Radio power, HD Antenna & Satellite Booster Power, and Thermostat Power. When the ignition is on, the chassis batteries and house batteries will automatically merge to charge batteries when vehicle is in operation. - Page 67 ELECTRICAL FEATURES negative cable) so that they can be properly reconnected again later. These batteries would require periodic recharging to maintain their full charge. Following manufacturer’s recommendations as found in the Owner’s Information Package, periodically check the fluid levels in all the cells of the batteries (be sure to use safety eyewear during this process) and fill those that are low with water (distilled or de-ionized water is preferred;...
-
Page 68: 120 Volt (Vac) Ac Receptacles
ELECTRICAL FEATURES 120 VOLT (VAC) AC RECEPTACLES Your Wayfarer motorhome is equipped with several 120 VAC receptacles (Figure 9-5) located throughout the interior of the motorhome. These 120 VAC receptacles are of the “three-prong” variety; the third prong being a grounding pin which provides adequate grounding to protect one from any electrical shock. - Page 69 ELECTRICAL FEATURES protection for the user. All of the electrical receptacles on the “general” branch are GFCI protected through the bathroom GFCI. Consequently, if an appliance plugged into an outlet that is not on the inverter , check for a tripped GFCI in the bathroom.
-
Page 70: Electrical Generator
ELECTRICAL FEATURES INVERTER 1. Invert 12 VDC power into 120 VAC power when 120 VAC is not available. The inverter can create 120 VAC to power the entertainment system (e.g. TVs, Blu-ray player). Figure 9-7 Inverter 2. Transfer 120 VAC power to the inverter loads (e.g. entertainment system, optional refrigerator) when 120 VAC power is available. -
Page 71: Automatic Transfer Switch
ELECTRICAL FEATURES The generator can be started from either the remote-start switch located on galley overhead cabinet to the left as you walk through the entrance door or directly at the generator itself. The hour meter installed on the generator records the number of hours of operation of the generator motor—this elapsed time is needed for observing necessary maintenance schedules on the generator. -
Page 72: Circuit Breakers
ELECTRICAL FEATURES CIRCUIT BREAKERS Figure 9-8: Circuit Breakers The circuit breakers (Figure 9- ) are located in the external storage compartment just forward of the entrance door. When the circuit breakers are shut down or electrically tripped, they must be manually reset. These breakers protect the slide-outs, the AC ignition, the electric step, the 30-amp ignition system, and the 12 VDC disconnect system. - Page 73 ELECTRICAL FEATURES Figure 9-8: Seven-Pin Towing Connector The wiring of that connector is shown in the accompanying diagram (see Figure 9-8 ). sure that any cable from the vehicle to be towed is wired correctly to mate properly with the Make connections shown in the connector.
-
Page 74: Slide-Out Features
SLIDE-OUT FEATURES CHAPTER... -
Page 75: General Considerations
SLIDE-OUT FEATURES SLIDE-OUT OVERVIEW GENERAL CONSIDERATIONS The Wayfarer is equipped with two slide-outs. One in the bedroom and one in the living room. The slide- out-room feature is actuated by a wall switch (Figure 10-1). Press the desired slide-out setting to extend or retract the slide-out. -
Page 76: Operating Precautions
SLIDE-OUT FEATURE OPERATING PRECAUTIONS Before the slide-out-room mechanism is to be used, make sure the motorhome is parked level. Verify that no obstacles (e.g., branches, trees, telephone poles, power/water hookups, trash bins, etc.) are within a five-foot space envelope of that slide-out room to keep from damaging the slide-out room when it is finally deployed. -
Page 77: Retracting The Slide-Out
SLIDE-OUT FEATURES RETRACTING THE SLIDE-OUT ROOM 1. Before attempting to move the motorhome, the slide-out room must be fully retracted. 2. Verify that the 12 VDC system is fully charged and connected to the electrical system. 3. Make sure all personal equipment and any children are away from the slide-out. 4. -
Page 78: Exterior Features
EXTERIOR FEATURES CHAPTER... -
Page 79: Towing Hitch
EXTERIOR FEATURES TOWING HITCH On the rear of the Wayfarer is a Class 2, 5,000-pound towing hitch (Figure 11-1) capable of handling a tongue weight of 500 pounds. This hitch is installed for towing a passenger car to be used when the vehicle is parked. The wire connector installed with this hitch is a standard, seven-pin connector. -
Page 80: Security Lights
EXTERIOR FEATURES Please note: Tiffin Motorhomes is NOT responsible for the weathering and/or oxidation of gel-coated surfaces. Spacious storage compartments are located on the exterior sides of your Wayfarer. These external compartments provide ample, additional space for your belongings while you are traveling. When stowing materials in these storage compartments, try to “balance”... - Page 81 EXTERIOR FEATURES The switch (Figure 11-5) to operate these steps is located in the door stairwell. When the power switch for the steps is in the “on” position, simply open the door and the steps will automatically extend. Detailed operation for the electrical, double-entrance, door steps is as follows: 1.
-
Page 82: Mirrors
EXTERIOR FEATURES MIRRORS This motorhome is equipped with remote- controlled, exterior, rear-view mirrors (Figure 11- Always adjust the mirrors for maximum rear visibility prior to driving. If another driver is to drive, be sure the mirrors are readjusted to accommodate the second driver. The mirrors are adjusted by using the multi- directional switch located on the dashboard. - Page 83 EXTERIOR FEATURES Move the control in the direction of movement desired to obtain the best view for that mirror. The adjustment control moves the top half of both mirrors. The bottom half of each mirror is convex and is adjusted manually. Further information can be found in the Mercedes Owners Manual. Detailed instructions for these manual adjustments can be found in the manufacturer’s literature available in the Owner’s Information Package.
-
Page 84: Interior Features
INTERIOR FEATURES CHAPTER... -
Page 85: Bedspread
INTERIOR FEATURES BEDSPREAD As a furnished part of the bedroom suite, a bedspread with matching pillow accessories (Figure 12-1) is included with the Wayfarer motorhome. Figure 12-1: Bedroom Decor For the bedspread and pillow shams, cleaning instructions are “for dry-cleaning only.” As the bedspread was made with materials treated for stain resistance;... -
Page 87: Plumbing & Bath Features
PLUMBING & BATH FEATURES CHAPTER... -
Page 88: Monitor Panel
PLUMBING & BATH FEATURES MONITOR PANEL The monitor panel (Figure 13-1) permits checking the approximate levels in the fresh, gray, and black water holding tanks; the LP-gas level; and the condition of the battery. Figure 13-1: Monitor Panel KITCHEN SINK For the sink, cleaning care consists of washing only with mild detergents and water and using a soft cloth for subsequent drying and polishing. -
Page 89: Bath Sink, Shower & Accessories
PLUMBING & BATH FEATURES BATH SINK, SHOWER & ACCESSORIES The typical bathroom accessories include a towel bar and a toilet paper holder. The faucet in the bathroom was chosen to match the specified decor. The tub faucet with showerhead, hose, and bracket are coordinated with the sink faucet. -
Page 90: City Water Connections
PLUMBING & BATH FEATURES SITUATION SOLUTION Pump running – no water 1. Fill tank 2. Clear the water line to the pump Pump doesn’t Run 1. Check the pump switch. 2. Check the 12-volt fuses 3. Check the electrical connections 4. -
Page 91: Filling Freshwater Tank
PLUMBING & BATH FEATURES FILLING FRESHWATER TANK The freshwater tank is normally filled from the city water inlet on the sewer board. The red and blue handle valves located on the sewer board determine whether the city water is going through the water system or into the freshwater tank. -
Page 92: Sanitizing
PLUMBING & BATH FEATURES 8. Drain the system and flush it with freshwater. The water system needs to be flushed with water repeatedly, if necessary, until there is no chlorine taste or smell left in the system. To remove any excessive chlorine taste or odor that might remain, prepare a solution of one quart of vinegar to five gallons of water. -
Page 93: Water Filter
PLUMBING & BATH FEATURES WATER FILTER This unit is equipped with a water filter (Figure13-7) which must be removed before disinfecting the fresh-water system. First remove the water filter and then replace cover to allow the sanitizing solution access to the faucets. As installed, the filter will remove chlorine, dirt, and other matter. -
Page 94: Freshwater Lines
PLUMBING & BATH FEATURES FRESHWATER LINES Check all of the plumbing connections for leaks at least on an annual basis. If the water pump runs when all faucets are turned “off,” check for a possible leak. Be sure that the drain valves are closed. -
Page 95: Black Water Holding Tank
PLUMBING & BATH FEATURES BLACK WATER HOLDING TANK The “black water” (i.e., sewage) holding tank is located directly beneath the toilet. Before using the toilet, you will need to treat the tank with water that is mixed with an odor-controlling chemical. These chemicals are readily available at any RV supply store. -
Page 96: Wastewater Disposal
PLUMBING & BATH FEATURES WASTEWATER DISPOSAL Both of the holding tanks terminate in a valve arrangement that permits draining each tank separately or together. It is recommended to drain the black-water tank first before draining the gray-water tank. This procedure permits the water from the gray tank to wash the black-water residue from the drain lines. The valves that open to release the water are called gate valves. -
Page 97: No Fuss Flush
PLUMBING & BATH FEATURES water tank can be avoided by keeping the gate valve closed when connected to the sewer connection. The gray tank can be kept open while hooked to a sewer connection. NOTE: When dumping, it is suggested to dump the black tank first, then the gray. NO FUSS FLUSH This vehicle may be equipped with a flushing system for the black-water holding tank. -
Page 98: Windows, Awnings, Vents, And Doors
WINDOWS, AWNINGS, VENTS, AND DOORS CHAPTER... -
Page 99: Windows
Windows throughout the coach are designated as “EXIT” windows in the event of an emergency. To help make the windows slide more easily, we recommend using Plexus Plastic Cleaner which can be purchased through the Tiffin Motorhomes Service Department. AWNING The power patio awning (Figure 14-2) is standard on the Wayfarer. - Page 100 WINDOWS, AWNINGS, VENTS & DOORS the valance orientation if necessary. Allowing the valance to remain in the hyper-extended orientation may create a propensity to pool water, especially in larger (17’-21’) awnings. To close the awning: NOTE: Pinch Hazard. When closing awning, bottom arm will fold down and against back channel. This area must be kept clear of people and objects.
-
Page 101: Vents
WINDOWS, AWNINGS, VENTS & DOORS 2. While one person is holding onto the pull strap, remove the screw in the top of the right top casting. The FRTA will immediately roll in once the bolt is removed. Walk the awning to the closed position. -
Page 102: Doors
WINDOWS, AWNINGS, VENTS & DOORS DOORS The primary entrance door to the motorhome has a key lock and a dead bolt for additional security. When the door is fully opened, the door hinge automatically holds the door in an “open” position. There is also a screen that allows increased air circulation when the entrance door is open. -
Page 103: Driving Your Motorhome
DRIVING YOUR MOTORHOME CHAPTER... -
Page 104: Single Vision Camera Monitor System
Driving SINGLE VISION CAMERA MONITOR SYSTEM The rear-view monitoring system (Figure 15-1) is provided to aid the driver in backing and parking the motorhome. A camera mounted on the rear of the vehicle feeds a televised view of the rear of the motorhome to the monitor located in the front near the driver. -
Page 105: Dashboard Heating / Cooling Controls
Driving DASHBOARD HEATING / COOLING CONTROLS The dash air conditioner/heater is not designed to heat and cool the entire interior of the motorhome. It is intended only to provide heating and cooling for the cab area. A small amount of air will blow out of all of the defrost and dash vents regardless of the mode settings. -
Page 106: Routine Maintenance
ROUTINE MAINTENANCE CHAPTER... -
Page 107: Washing
(1 oz.) is all you need per five gallon bucket of water. Add one cup of food grade distilled white vinegar to your wash bucket. Tiffin Motorhomes recommends the lambs wool pad sold by Mary Moppins. This allows you to safely wash your coach from the ground by placing the pad on an extension. -
Page 108: Seals
If deterioration is noted during a routine maintenance inspection, reseal the seams or seals with an approved sealant to prevent leaks. Your Tiffin Motorhomes dealer can perform resealing inspections and subsequent work for you. It is recommended that a Tiffin Motorhomes authorized service center perform these inspections... -
Page 109: Proper Sealants For Application
PROPER SEALANTS FOR APPLICATION The following sealants are recommended for specific sealing applications, as noted in the table. These can be purchased through the Tiffin Motorhomes parts and service department by calling 205-487-4710. WHEEL CARE The care and maintenance of your wheels are simple and require no special material or products; simply follow the directions included in the Owner’s Information Package for these. -
Page 110: Roof Care & Maintenance
RV. Note: These are only suggestions intended to minimize moisture-related issues with your motorhome. If any concerns arise, contact Tiffin Motorhomes’ Service Department at (205)487-4710. Interior Care of your RV Signs of excessive moisture can be obvious, such as water droplets forming on surfaces or wet carpet. - Page 111 ROUTINE MAINTENANCE Use exhaust fans, the air conditioner, and/or a portable dehumidifier to manage moisture inside the RV to maintain relative humidity at 60% or less. In cold climates, relative humidity may need to be at 35% or less to avoid window condensation issues. If the motorhome is used the majority of the time in a hot, humid climate, it may be difficult to keep relative humidity below 60%.
- Page 112 ROUTINE MAINTENANCE Use of Un-Vented Combustion Equipment Un-vented combustion equipment, such as propane stovetops are a source of moisture within the RV. For every gallon of fuel consumed, approximately one gallon of water vapor is evaporated into the air. Whenever possible, operate an exhaust fan in combination with the use of any un-vented combustion appliance within the RV.
- Page 113 Refer to other sections of this owner’s manual for additional recommendations. Modifications to your RV Consult Tiffin Motorhomes for guidance prior to making any modifications to your RV. It is important that changes be completed by a qualified service firm to ensure moisture intrusion or accumulation problems do not occur.
-
Page 114: Tire & Safety Information
ROUTINE MAINTENANCE TIRE & SAFETY INFORMATION This portion of the Owner’s Manual contains tire safety information as required by 49 CFR 575.6. The National Traffic Safety Administration (NHTSA) can be contacted at 1-888-327-4236. Their web site is http://www.safecar.gov and their address is: NHTSA, 400 Seventh St, S.W., Washington, D.C. 20590. Section One: The National Traffic Safety (NHTSA) has published a brochure (DOT HS 809 361) that discusses all aspects of Tire Safety, as required by CFR 575.6. - Page 115 ROUTINE MAINTENANCE Finding Your Vehicle’s Recommended Tire Pressure and Load Limits Tire information placards and vehicle certification labels contain information on tires and load limits. These labels indicate the vehicle manufacturer’s information including: Recommended tire size Recommended tire inflation pressure ...
- Page 116 ROUTINE MAINTENANCE Steps for Maintaining Proper Tire Pressure Step 1: Locate the recommended tire pressure on the vehicle’s tire information placard, certification label, or in the owner’s manual Step 2: Record the tire pressure of all tires Step 3: If the tire pressure is too high in any of the tires, slowly release air by gently pressing on the tire valve stem with the edge of your tire gauge until you get to the correct pressure ...
- Page 117 ROUTINE MAINTENANCE A Tire Rotation Example Please refer to Mercedes Sprinter Manual provided in the Owner’s Information Package. P—The “P” indicates the tire is for passenger vehicles. NOTE: Passenger car tires are not recommended for use on trailers, because the capacity ratings are not marked on the side walls of these tires.
- Page 118 ROUTINE MAINTENANCE Next number—This three-digit number gives the width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger the number, the wider the tire. Next number—This two-digit number, known as the aspect ratio, gives the tire’s ratio of height to width.
- Page 119 ROUTINE MAINTENANCE This is the most a particular axle can weigh. If there are multiple axles, the GAWR of each axle will be provided. For motorhomes, in the same location as the certification label described above, there is a vehicle placard in the entry door frame. This placard provides tire and loading information. In addition, this placard will show the vehicle’s seating capacity for people and a statement regarding maximum cargo capacity.
- Page 120 ROUTINE MAINTENANCE manufacturer. These air pressures may differ from those found on the certification label. However, they should never exceed the tire limitation for load or air pressure. Tire Safety Tips Preventing Tire Damage • Slow down if you have to go over a pothole or other object in the road. •...
- Page 121 ROUTINE MAINTENANCE Section Three: Glossary of Tire Terminology Accessory weight—The combined weight (in excess of those standard items which may be replaced) of automatic transmission, power steering, power brakes, power windows, power seats, radio and heater, to the extent that these items are available as factory-installed equipment (whether installed or not). Bead—The part of the tire that is made of steel wires, wrapped or reinforced by ply cords and that is shaped to fit the rim.
- Page 122 ROUTINE MAINTENANCE manufacturer, brand, and /or model name molding that is higher or deeper than the same molding on the other sidewall of the tire or the outward facing sidewall of an asymmetrical tire that has a particular side that must always face outward when mounted on a vehicle. Light truck (LT) tire—A tire designated by its manufacturer as primarily intended for use on lightweight trucks or multipurpose passenger vehicles.
- Page 123 ROUTINE MAINTENANCE considered in curb weight or accessory weight, including heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special trim. Radial ply tire—A pneumatic tire in which the ply cords that extend to the beads are laid at substantially 90 degrees to the centerline of the tread.
-
Page 124: Tire Pressure
ROUTINE MAINTENANCE Wheel center member—In the case of a non-pneumatic tire assembly incorporating a wheel, a mechanical device which attached, either integrally or separable, to the non-pneumatic rim and provides the connection between the non-pneumatic rim and the vehicle; or, in the case of a non- pneumatic tire assembly not incorporating a wheel, a mechanical device which attaches, either integrally or separable, to the non-pneumatic tire and provides the connection between tire and the vehicle. - Page 125 ROUTINE MAINTENANCE Weighing the Motorhome Earlier, in Chapter 1, the procedures for weighing the motorhome were presented. These procedures provided the weighing of a “non-loaded” (i.e., not stocked with the possessions and provisions the user would normally have onboard for travel) motorhome. Obviously, any additional weight stored onboard (inside and underneath) the motorhome will contribute to the overall weight of the motorhome.
- Page 126 ROUTINE MAINTENANCE Note 1: From the tire manufacturer’s load and inflation tables or the sidewall of the tires mounted on the motor home. Note 2: If the motor home has duals, read dual capacity from the tire and multiply by 2 (two) to obtain dual-assembly load-carrying capacity.
-
Page 127: Interior Care
ROUTINE MAINTENANCE air gauge which has an angled dual head. This type of gauge allows you to check inflation pressures of both the inner dual wheel which has the valve stem pointing towards one and on the outer wheel which has the valve stem pointing away from one. -
Page 128: Fabrics
ROUTINE MAINTENANCE FABRICS The fabrics used in this Tiffin motorhome for the bedspread, draperies, headboard, and valances contain fire-retardant additives that may be damaged by use of improper cleaning products. Cleaning instructions for these items are DRY CLEAN ONLY. Water-based products are not recommended for cleaning the fabrics in your new vehicle. -
Page 129: Dashboard
ROUTINE MAINTENANCE DASHBOARD To keep the motorhome dashboard in like-new condition, regularly follow these guidelines: Dust and clean the dashboard with a soft, damp cloth or chamois, wiping the service gently. Use a mild detergent and lukewarm water. ... -
Page 130: Countertops
Additionally, since heat-producing appliances can also damage countertop seams, it is essential to check with Tiffin Motorhomes to identify seam locations to avoid them during subsequent use of the motorhome. Although solid surfacing is repaired easily, certain steps should be taken to protect it. -
Page 131: Condensation
2. A small dehumidifier is also very effective in removing moisture from the air. ROUTINE MAINTENANCE SCHEDULES All routine maintenance is the responsibility of the owner and is not covered by the Tiffin Motorhomes Limited Warranty. Use the maintenance record found in Chapter 15 to record all performed maintenance as required. - Page 132 EVERY SIX MONTHS Inspect the slide-out for proper seal. If realignment is necessary, please contact an authorized Tiffin Motorhomes Service Center. Inspect the exterior rubber slide-out seals and apply an UV inhibitor, such as 303 Pro tectant. ...
-
Page 133: Winterizing
Inspection of roof seams and joints should be performed by an authorized Motorhomes Service Center. If resealing is necessary, it is the owner’s responsibility and is not covered by the Tiffin Motorhomes Limited Warranty. Sanitize the fresh water system. ... -
Page 134: De-Winterizing
ROUTINE MAINTENANCE DE-WINTERIZING 1. To de-winterize your vehicle, open both of the low-point drains to allow the antifreeze solution to drain from the water system. 2. Next, close the low-point drains and connect your vehicle to the city water system. Put water in the freshwater tank and pump at least one gallon through the water pump to re move the... -
Page 135: Maintenance & Data Chart
MAINTENANCE & DATA CHART CHAPTER... -
Page 136: Rv Owner's Data Sheet
MAINTENANCE & DATA SHEET RV OWNER’S DATA SHEET Please enter the following information in the table for your future use: WAYFARER: Year: ______ Model #________________ Tiffin Serial # ________________ Appliance BRAND MODEL NO. SERIAL NO. Refrigerator Water heater Microwave Inverter/Converter Television, Front Back up monitor Stereo/CD... - Page 137 MAINTENANCE & DATA SHEET MAINTENANCE & DATA SHEET Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may wish to keep the completed sheets in a three-ring binder for your permanent record.
- Page 138 MAINTENANCE & DATA SHEET MAINTENANCE & DATA SHEET Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may wish to keep the completed sheets in a three-ring binder for your permanent record.
- Page 139 MAINTENANCE & DATA SHEET MAINTENANCE & DATA SHEET Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may wish to keep the completed sheets in a three-ring binder for your permanent record.
- Page 140 MAINTENANCE & DATA SHEET MAINTENANCE & DATA SHEET Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may wish to keep the completed sheets in a three-ring binder for your permanent record.
- Page 141 MAINTENANCE & DATA SHEET MAINTENANCE & DATA SHEET Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may wish to keep the completed sheets in a three-ring binder for your permanent record.
- Page 142 MAINTENANCE & DATA SHEET MAINTENANCE & DATA SHEET Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may wish to keep the completed sheets in a three-ring binder for your permanent record.
- Page 143 MAINTENANCE & DATA SHEET MAINTENANCE & DATA SHEET Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may Reproduction Master – Copy this sheet and use copy to maintain your maintenance records. You may wish to keep the completed sheets in a three-ring binder for your permanent record.
- Page 144 2017 TIFFIN MOTORHOMES, INC. 625 Fawn Grove Road | Winfield, AL 35594 205-487-4710...
